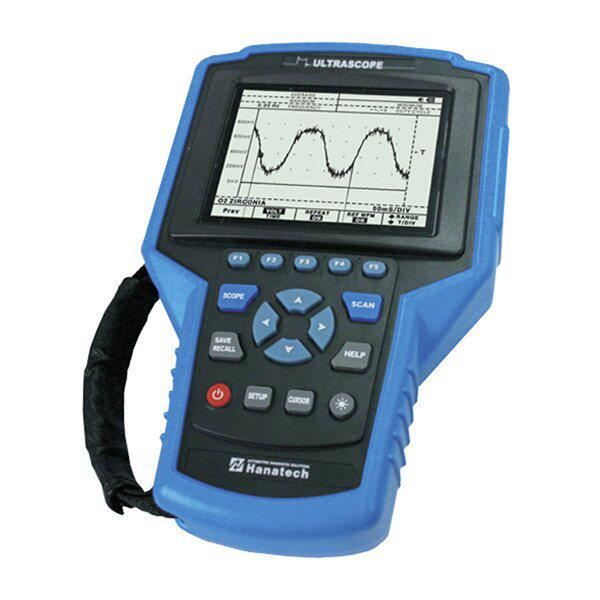

ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141

ADS7100 ULTRASCOPE Dual Channel Oscilloscope & Multimeter is a high speed of Dual Channel Oscilloscope & Multimeter which can test automotive oscilloscope for specialists.
Super fast Oscilloscope, high-accuracy multimeter.
OBD2 BUS analyzer for CAN, SAEJ1850, ISO9141.

Item No. COBD22782

5 stars, 9 reviews.

In Stock

Price:: US$2,065.00/ piece

Discount Price:: US$1,377.00/ piece 33%

Quantity:

Shipping:: Express Shipping Service
Estimated delivery time: 3-15 working days.See details ?
Returns:: Return for refund within 7 days,buyer pays return shipping.Read details »
Support:: Online Chat Ask a question

Description

ADS7100 ULTRASCOPE Dual Channel Oscilloscope & Multimeter

Top 7 Reasons To Get ADS7100

Super fast Oscilloscope, high-accuracy multimeter.
OBD2 BUS analyzer for CAN, SAEJ1850, ISO9141.
Real time screen refresh rates.
Small size, light weight, portable.
Dual channel, auto calibration, auto trigger.
Auto screen horizontal axis, perpendicular division.
Low battery voltage charge indicator.

ADS7100 ULTRASCOPE Specifications:

Language: English
Material: Metal
Color: Blue+black
Display screen: 320*240 CCFL backlit LCD
Save model: Reference ware form saved
Connect: USB interface with PC

ADS7100 ULTRASCOPE Features:

Maximum input voltage: 600V peak DC or AC.
UI3111, CSA C22.2 No. 1010-1 safety standards compliance.
Generic OBDII diagnostics.

Sample Rate	25 Ms/s(Dual CH mode)
Sample Rate	50 Ms/s(Single CH mode)
Record Length	512 in single shot mode
Record Length	256 in all other modes
Sample/Division	25
Update Rate	Real time
Modes	Single shot,Roll,Normal
Accuracy	0.01%
Sweep Rate	1uS to 5S in 1,2,5 sequence

Vertical

Bandwidth	1MHz
Resolution	8 Bit
Channels	Dual
Coupling	AC,DC
Input Impedance	1 MΩ
Accuracy	3%
Max input Voltage	DC or AC 600vrms
Volt/Division	0.5mV to 500V in 1,2,5 in sequence
Volt/Division	50mV to 50kV for ignition Secondary

Triggering

Source	Internal, External
Coupling	AC, DC
Slope	Rising Or Falling edge
Trig Sensitivity	2/20 Division

Other

Waveform Memory	8 Shot
Reference Waveform	4S Shot
Ignition Analyzer	Primary & Secondary Ignition
	Conventional and DLI/DIS
	Peak Voltage,Burn time & Voltage

DC V

Range	Resolution	Accuracy	Impedance
5V	0.001V	±(0.3%+3)	1MΩ
50V	0.01V	±(0.3%+3)
500V	0.1V	±(0.5%+5)
1000V	1V	±(0.5%+5)

AC V

Range	Resolution	Accuracy			Impedance
		50-450Hz	0.45-5kHz	5kHz-20kHz
3V	0.001V	±(0.3%+3)	±(0.75%+5)	±(2%+5)	1MΩ
30V	0.01V
300V	0.1V	±(0.5%+5)
750V	1V			N/A

OHM

Range	Resolution	Accuracy	Over Load Protection
5kΩ	0.001kΩ	±(0.5%+5)	600V DC or AC rms
50kΩ	0.01kΩ
500kΩ	0.1kΩ
5MΩ	0.001MΩ	±(0.75%+10）

Continuity Test(Buzzer)

Test Voltage	Threshold	Over Load Protection
1.7V	100Digits	600VDC Or AC Peak

Optional Function

Temperature	0-200℃(Max 300℃)
Pressure	0-50Kg/Cm2
Ampere	0-4Amp, 0-40Amp, 0-400Amp

General Specifications

Operating Temp	0℃-50℃(32"F-122"F)humidity 75% or less
Power Supply	Ni-MH 4.8V
Battery Life Time	3hours without backlit/2hours backlit ON
Display Type	320×240 LCD(CCFL backlit)
Dimensions	164mm(width)×58mm(depth)×256mm(height)
Weight	1kg
