Autel Maxivideo MV400 Digital Videoscope With 5.5mm Diameter Imager Head Inspection Camera
Description:
Update online

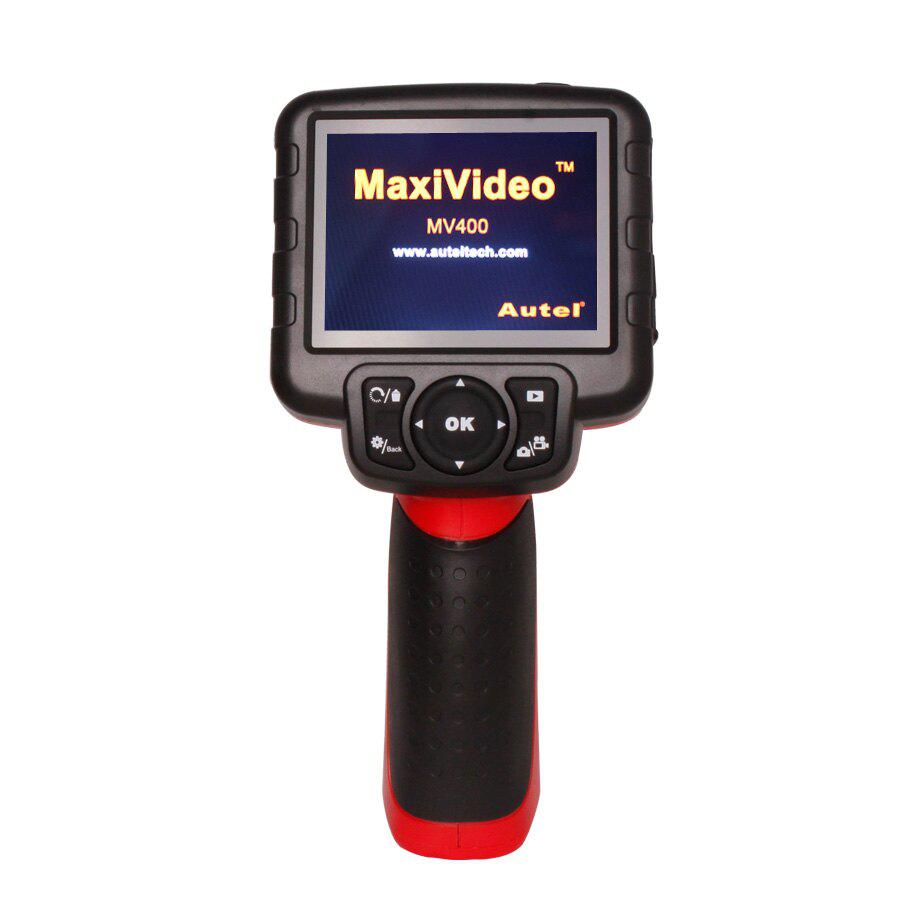

Autel Maxivideo MV400 not only features a 3.5" full color LCD screen, auto focus and viewing capacity as close as 1"
with crystal clear output, but also offers the capability to stream digital video directly to a PC.
The Multipurpose Videoscope is an economical solution to inspect machinery, facilities and infrastructure in the safest, quickest and most cost-effective manner possible.
MV400 Features:
- Records and plays back still images and video clips
- 3.5 " high resolution full color LCD display (320x240)
- Easy-to-use, multi-language interface
- Wide camera angle for images with 640x480 resolution
- With optional removable Micro SD cards, saves images and videos to take with anywhere
- On-screen horizontal/vertical reverse
- 5x digital zoom for increased viewing
- Mini USB connector for uploading images and videos to a computer
- Narrow probe diameter available in either 8.5mm(0.33") or 5.5mm(0.22") and fits most spark plug holes
- White LED to illuminate the inspection area, with illumination control
- Views objects as close as 1"
- Oil and scratch resistant tempered glass lens
- 1M (39.4") semi-rigid, but flexible watertight shaft
- Built-in rechargeable Li-ion battery with up to 3-4 hours of continuous use
- Ergonomic and durable tool housing
- One-year limited warranty
Autel Maxivideo MV400 specification:
- Recommended use Indoor
- Optimal viewing Distance 1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head 3/8" to 12" (0.95cm to 30cm) with 5.5mm diameter imager head Image capture JPG images (640x480) AVI videos (320 x 240)
- Screen type display 3.5" TFT LCD
- Display resolution 320 x 240
- Power supply Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh)
- Tested battery life 3-4 hours of continuous use
- Dimensions 199 x 100 x 178mm (7.83" x 3.94" x 7.0")
- Recording medium Micro SD card (Micro SD card is optional and not included)
- Imager head 18.5mm (0.33") is standard and 5.5mm (0.22") is optional.
- Waterproof Imager head and cable to 3m (10')
- Additonal ports USB, video out (TV-out) port
- Operating temp. Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C)
- Storage temp. -4°F to 158°F (-20°C to 70°C)
- Video output RCA
- TV out NTSC, PAL

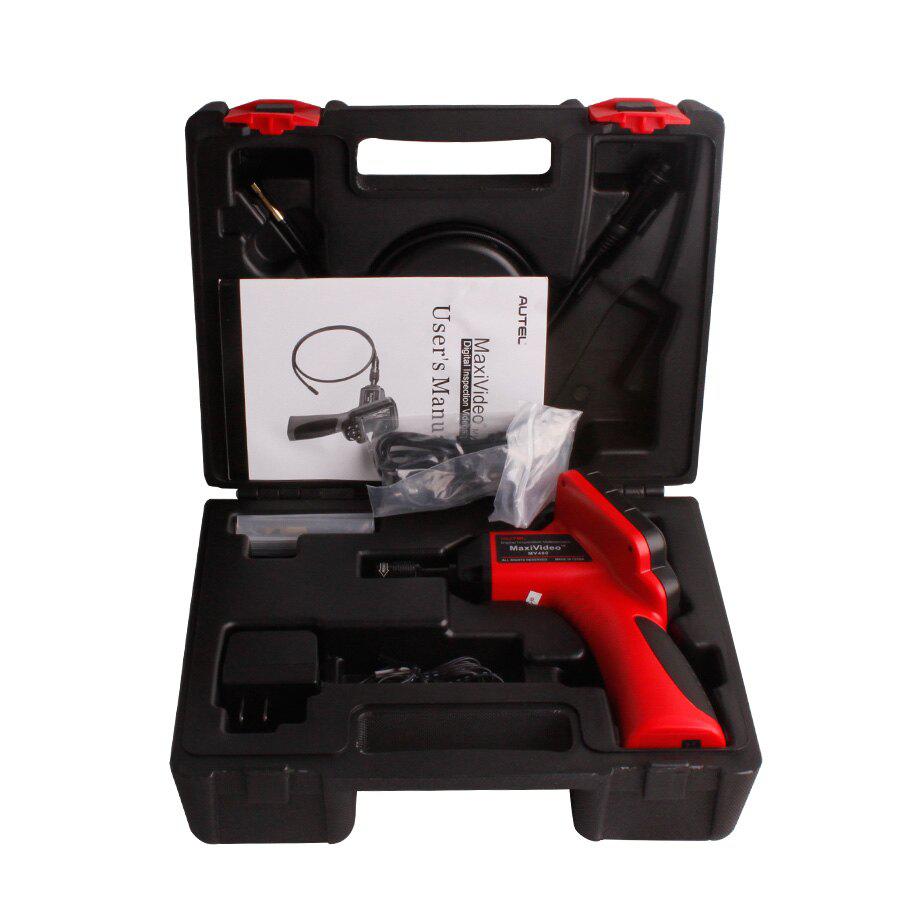

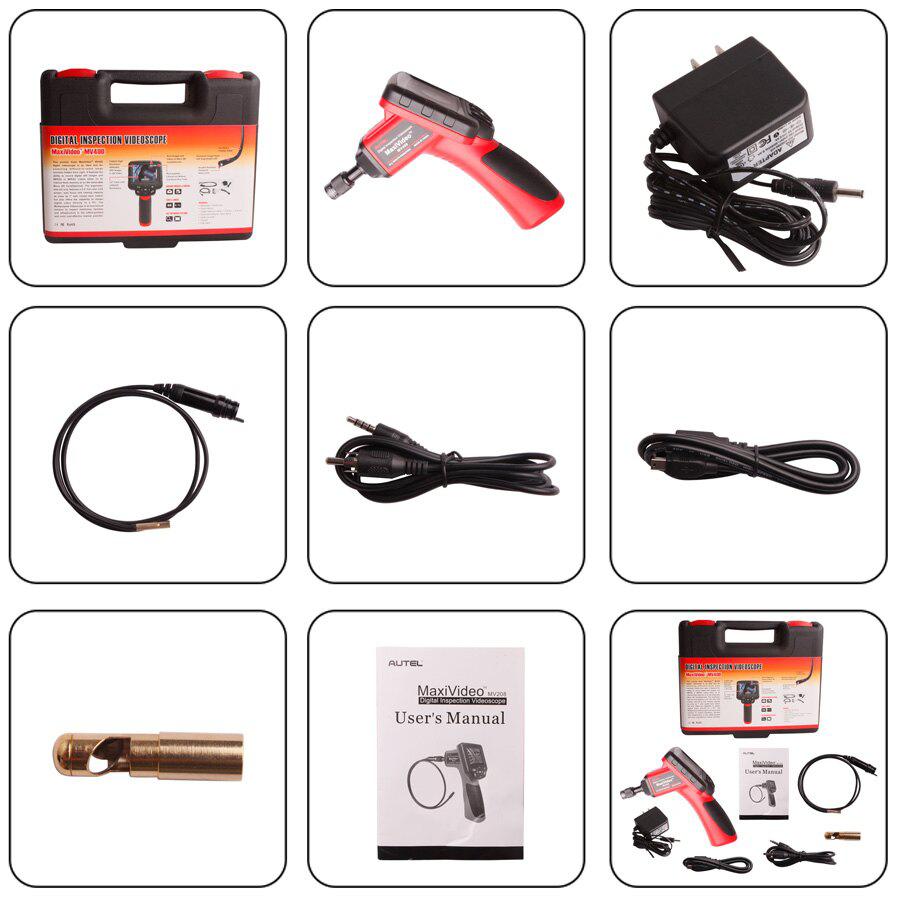

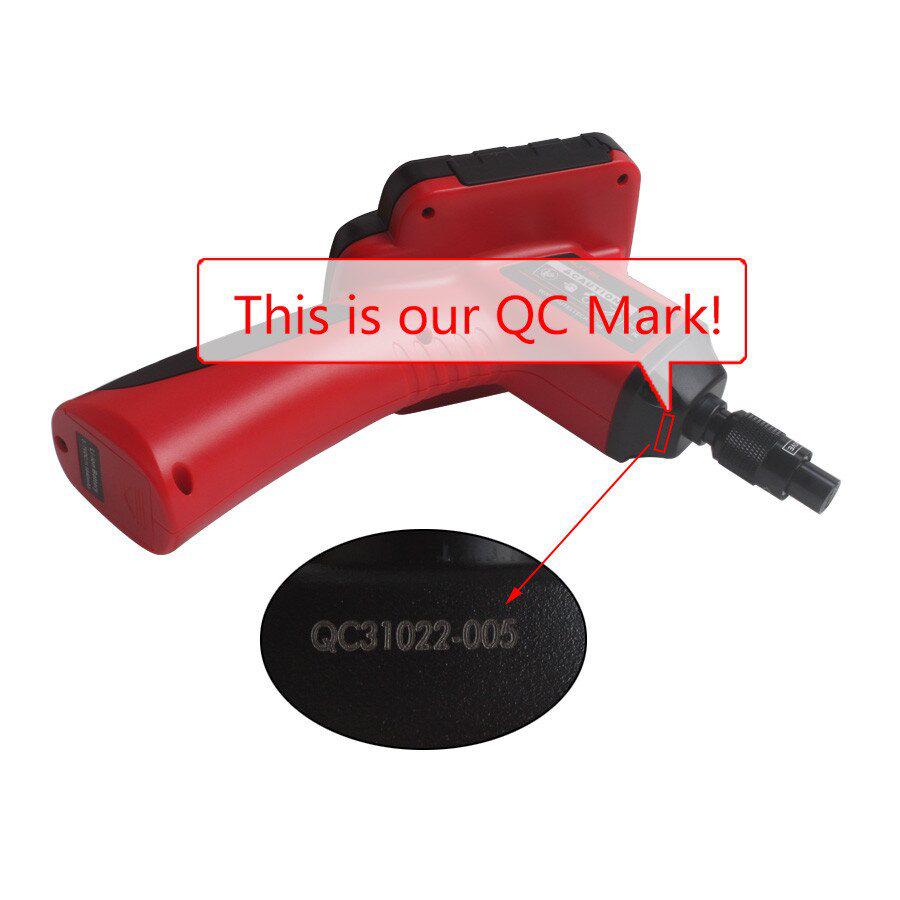

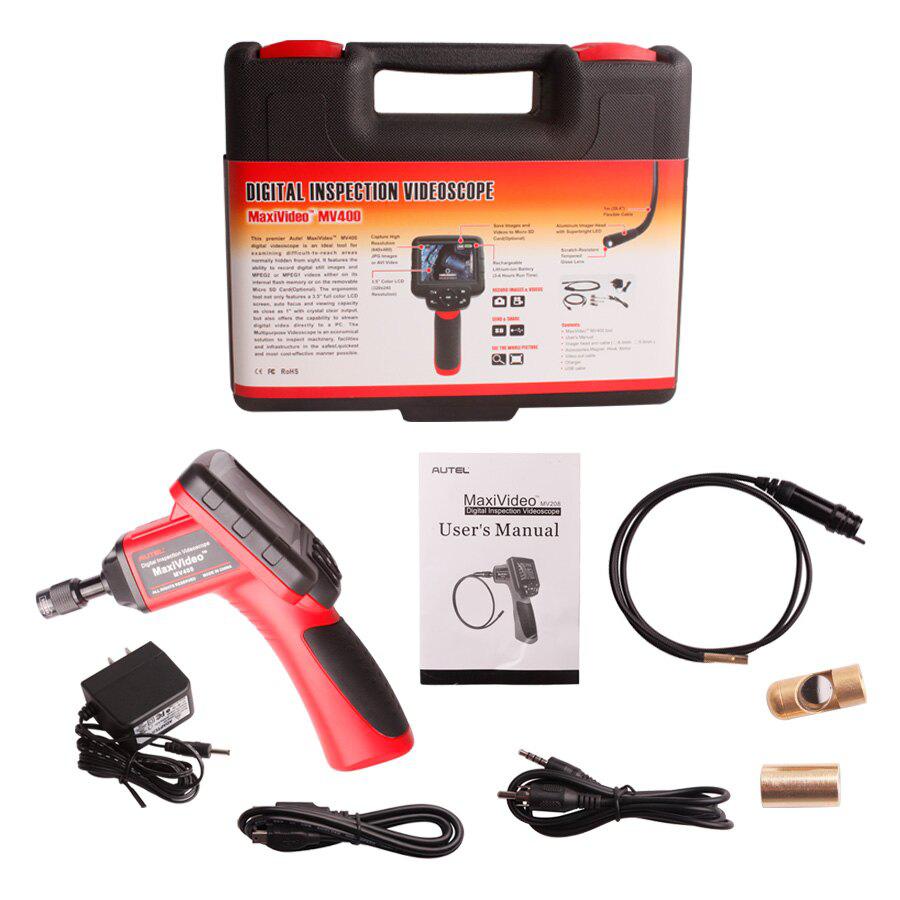

- 1pc x Autel Maxivideo MV400
- 1pc x User’s manual

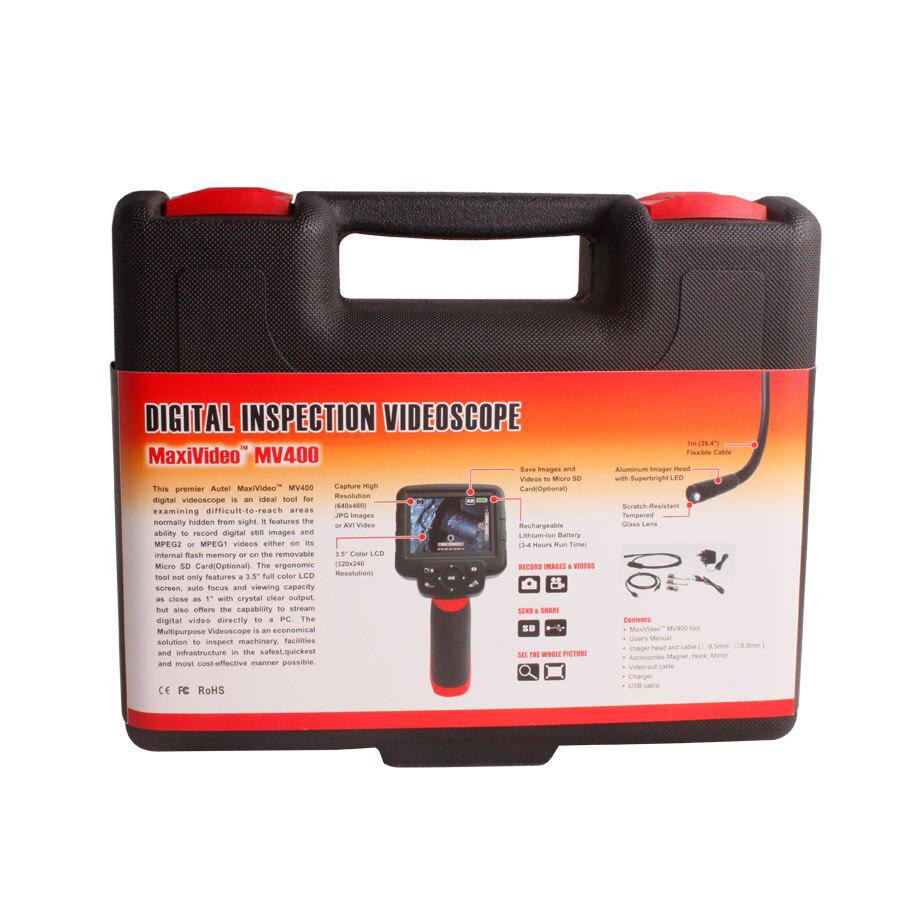

- 1pc x Protective carrying case

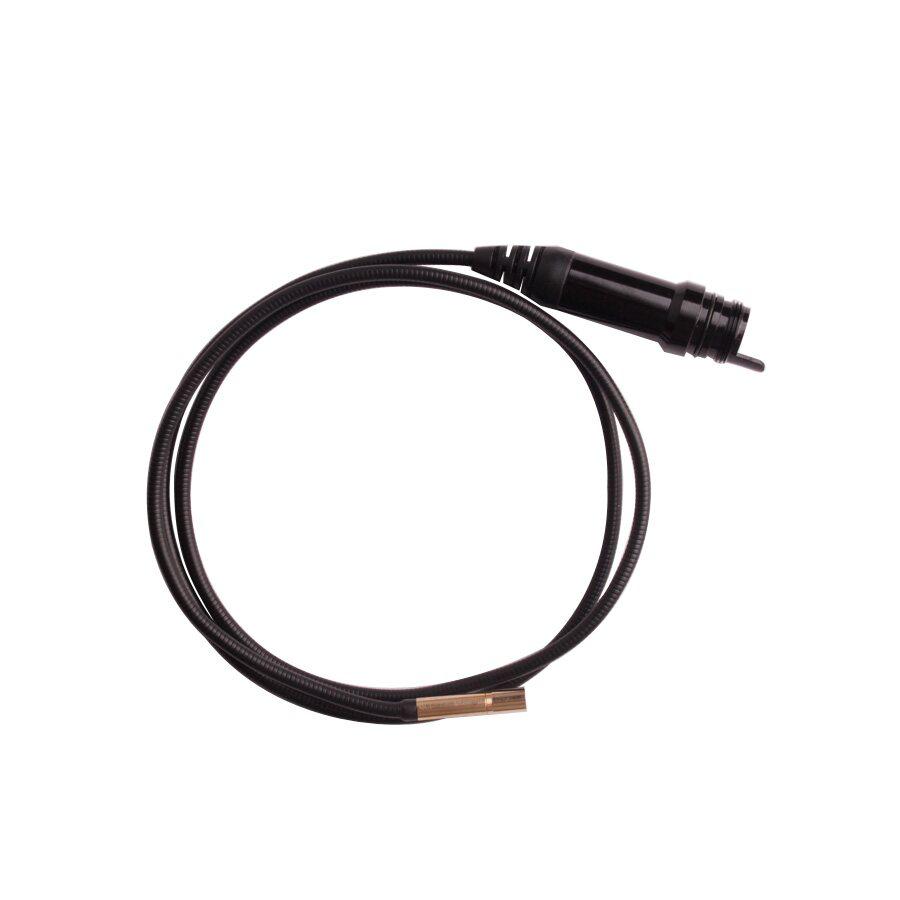

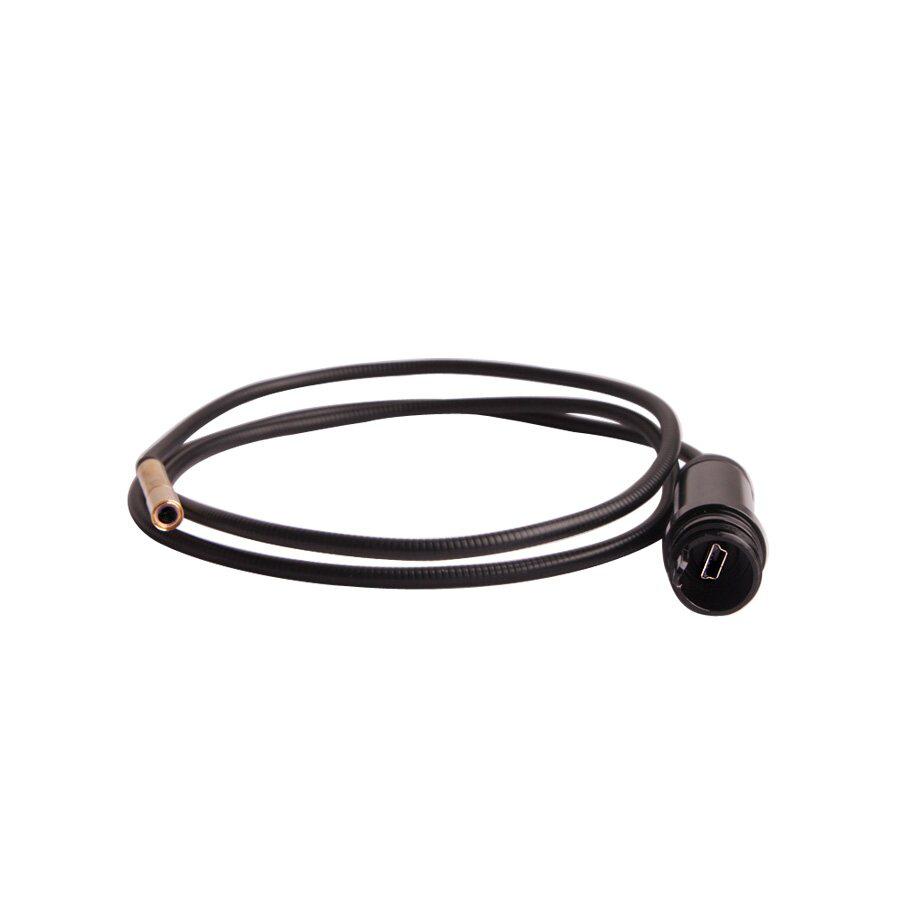

- 1pc x Imager head and cable

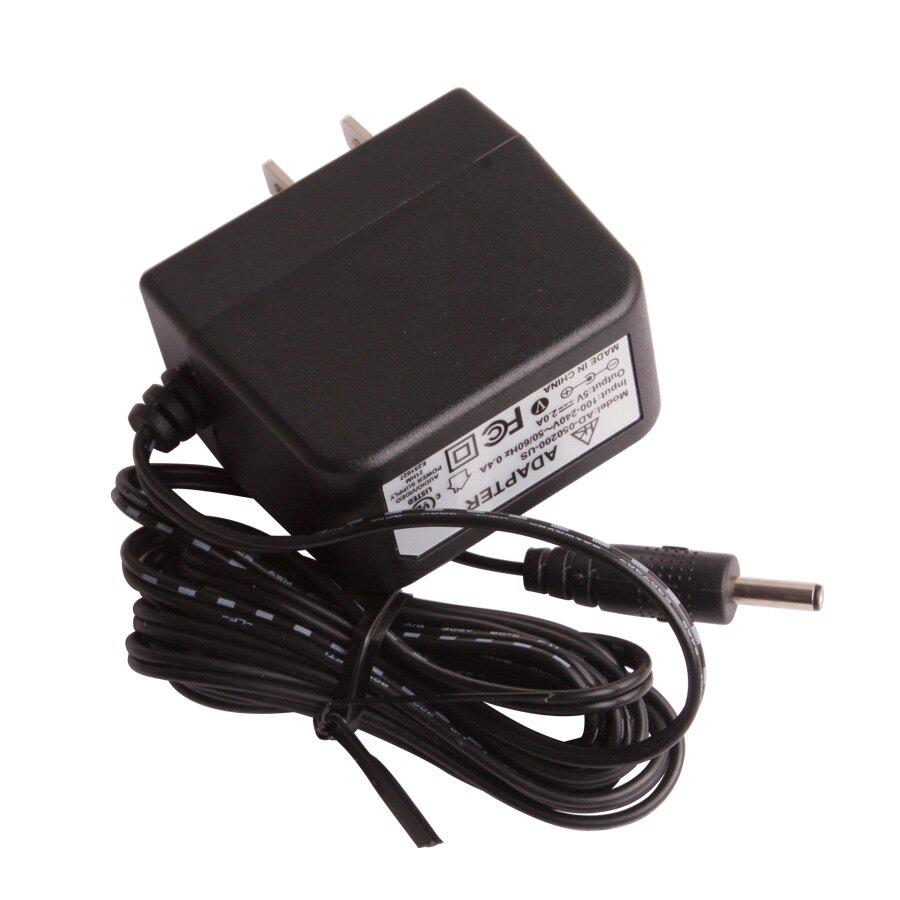

- 1pc x Charger

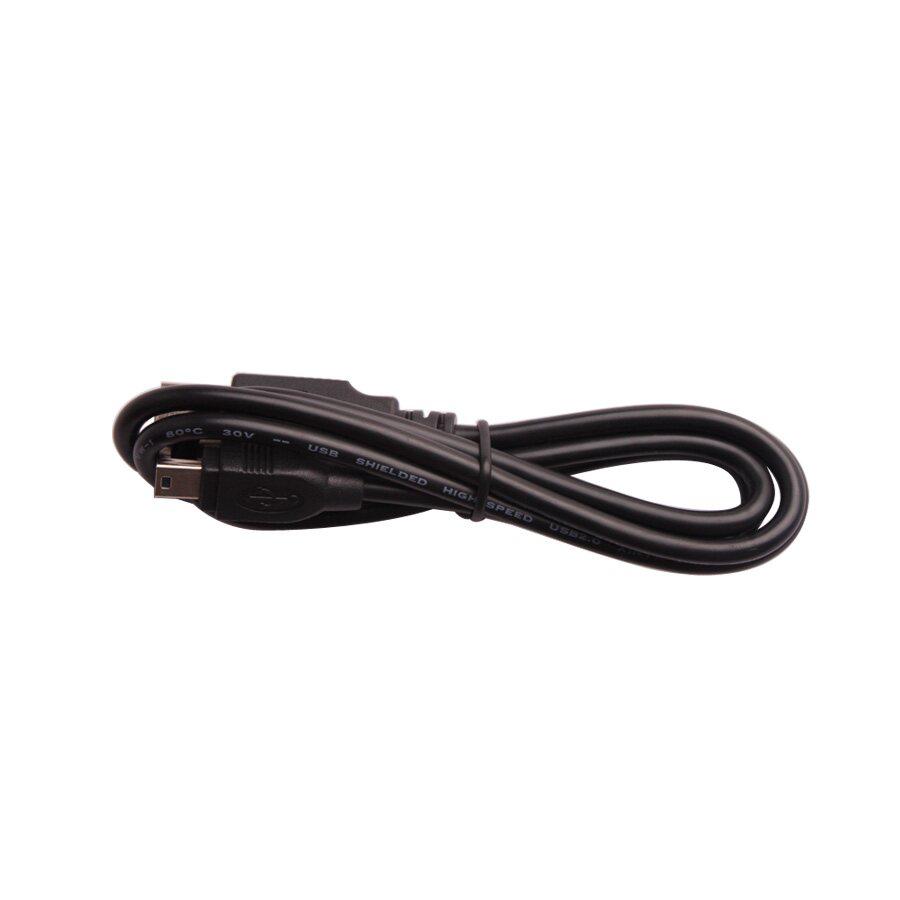

- 1pc x USB cable

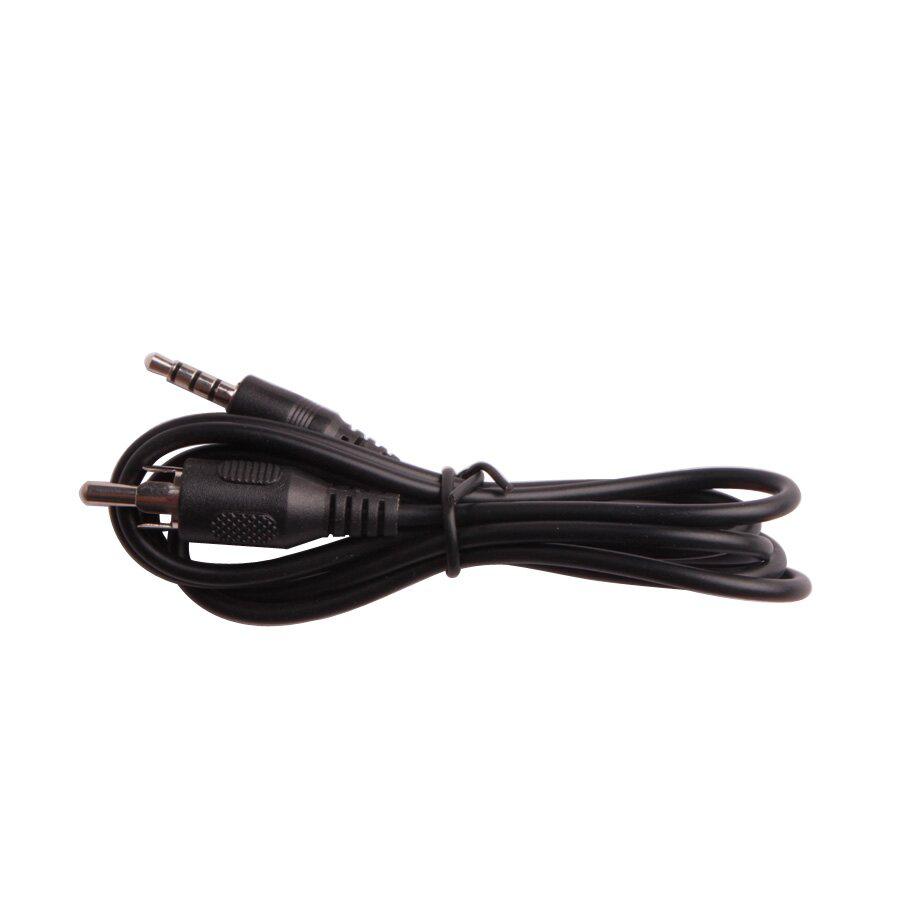

- 1pc x Video out-cable ( TV-out cable)

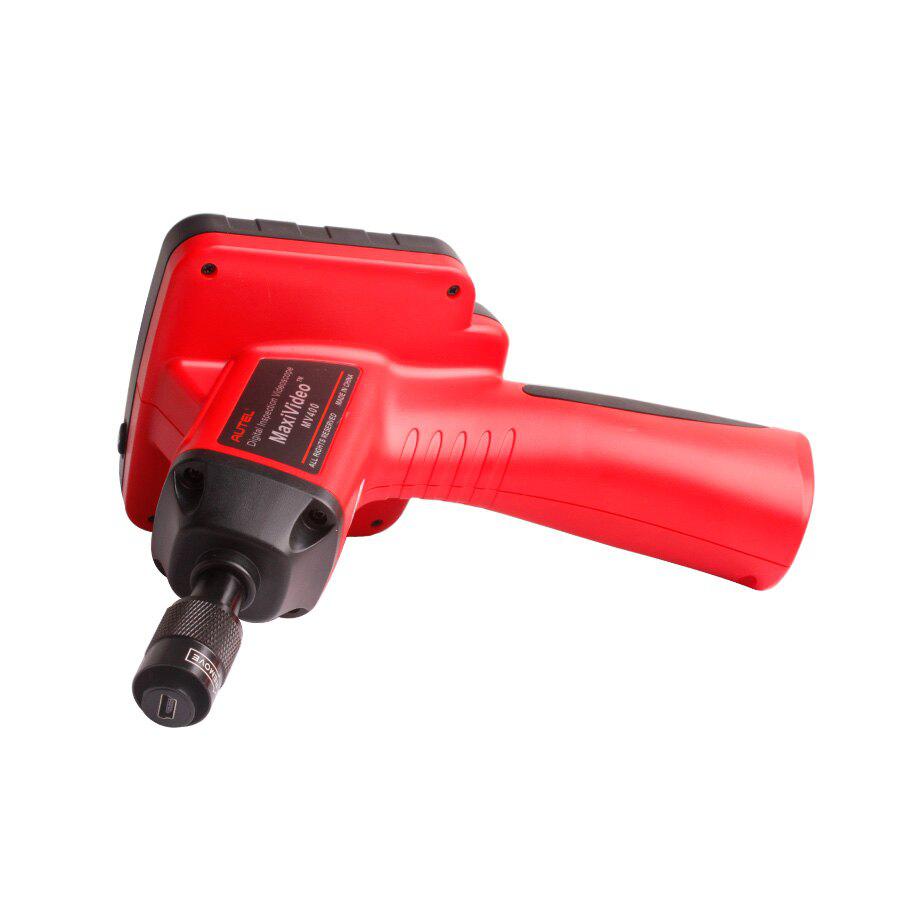

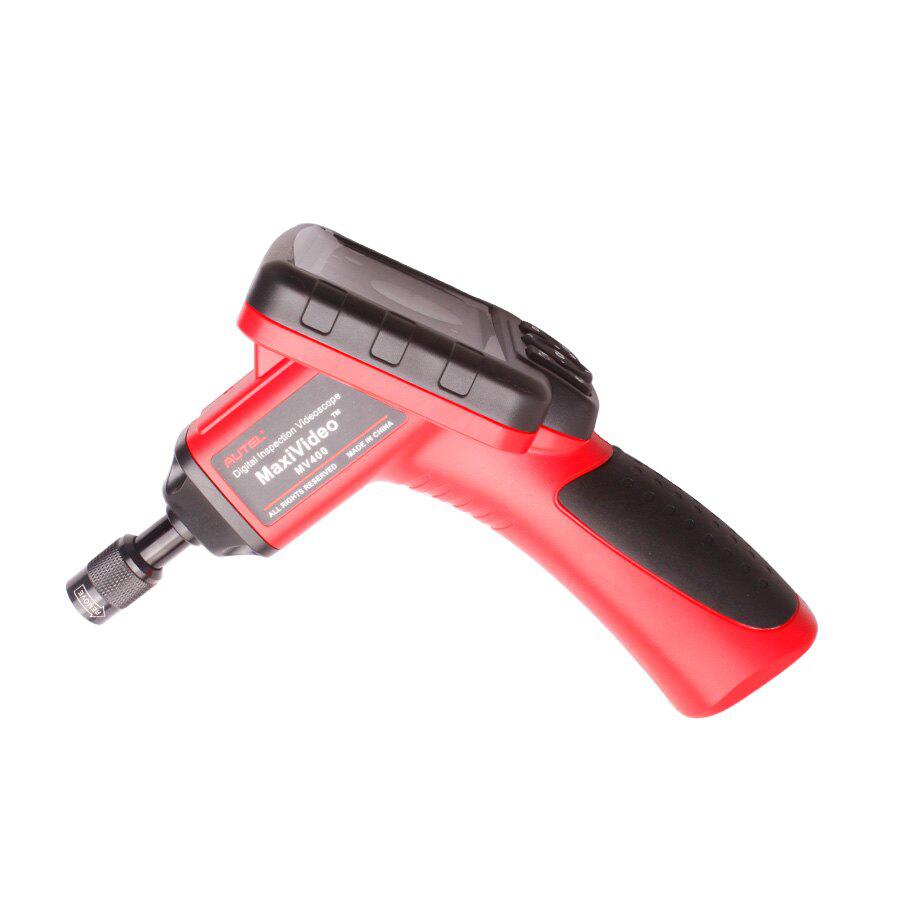

Autel Maxivideo MV400 related pictures:
