Top 5 Reasons To Get DA-Dongle J2534:
- The DA-Dongle J2534 device is simple and easy to use
- JLR Approved device, replacement for JLR SDD VCM
- Covers CAN, & ISO9141 vehicle networks
- 12ft USB cable as standard included
- Easy to update for J2534 new functionality
| JLR Vehicles | Supported? |
| Defender | Yes |
| Discovery /LR3/LR4 | Yes |
| Range Rover Sport & New Range Rover Sport | Yes |
| Range Rover | Yes* |
| New Range Rover | Yes |
| Freelander /LR2 | Yes |
| Evoque | Yes |
| XJ – X300/X308 | No |
| XJ - X350 | No |
| XJ - X351 | Yes |
| XJS | No |
| XK – X100 | No |
| XK - X150 | Yes |
| XF | Yes |
| S-Type | No |
| X-Type | No |
| F-Type | Yes |
| (Yes) – Vehicle line fully supported: (Yes) - Vehicle line fully supported apart from viewing Data logger signals from both ECM and TCM modules simultaneously on 2006MY variants : (No) - Vehicle Line Not supported – supported by DAVINA J2534 or DA-ST512 vehicle interface | |
DA-Dongle J2534 Functions:
- It will allow normal operation with the JLR SDD diagnostic tool,once the J2534 DLL files are loaded.
- The DA-Dongle J2534 connects directly to the vehicle OBDII (diagnostic) connector and then to a laptop via a USB cable for use with SDD
- Only SCP communications are not possible with this device
How to operate in J2534 mode?
- Download the latest J2534 DLL software files from the Diagnostic Associates web site www.diagnostic-associates.com/download.htm and install these on the SDD laptop.
- Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).
- Connect the 12ft USB cable to the J2534 device and the other end to the SDD laptop.
- The red vehicle power (PWR) LED will illuminate to show that the device is powered.
- During communication with the vehicle the status (STS) LED will flash green.
- The device interacts with the SDD diagnostic tool in the same way as the existing VCM.
Package List:

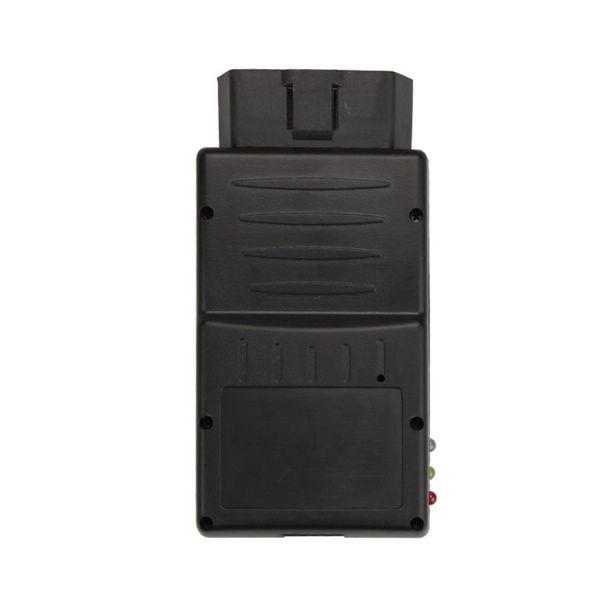

- 1pc x DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Vehicles
