Product Introduction

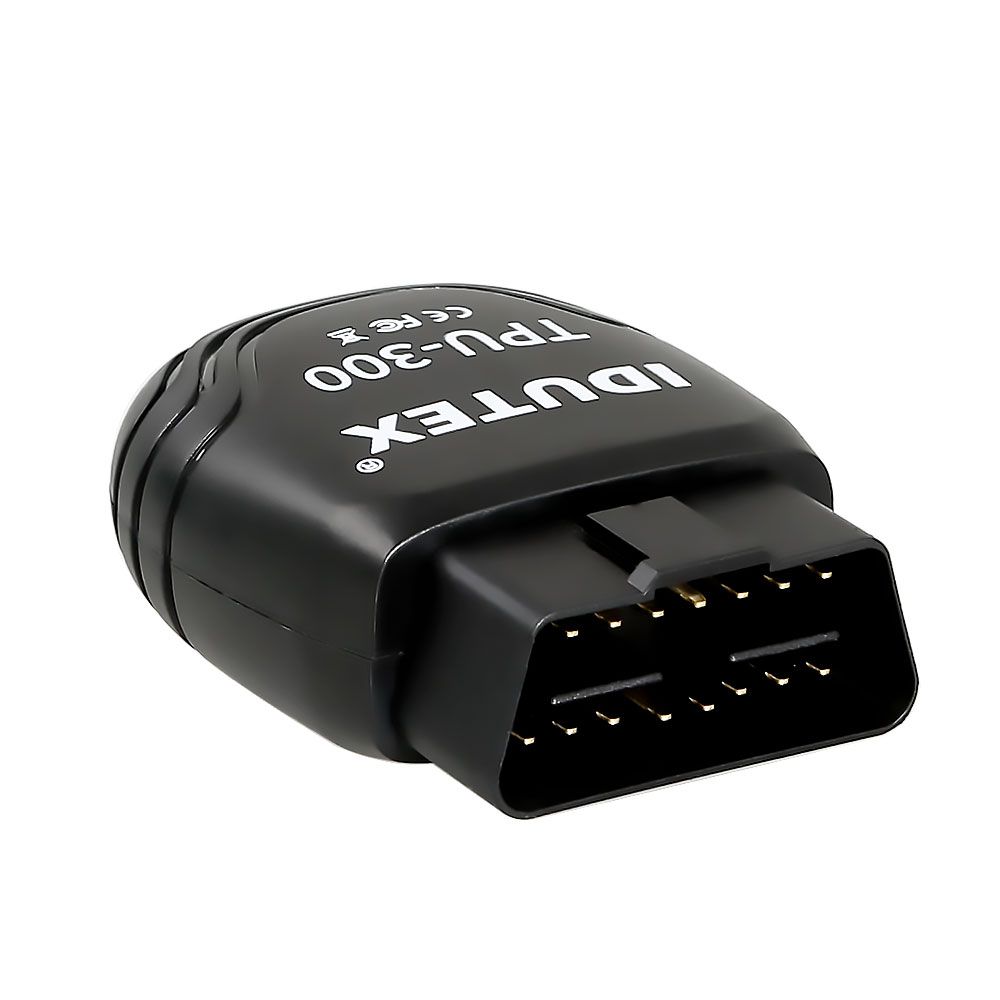

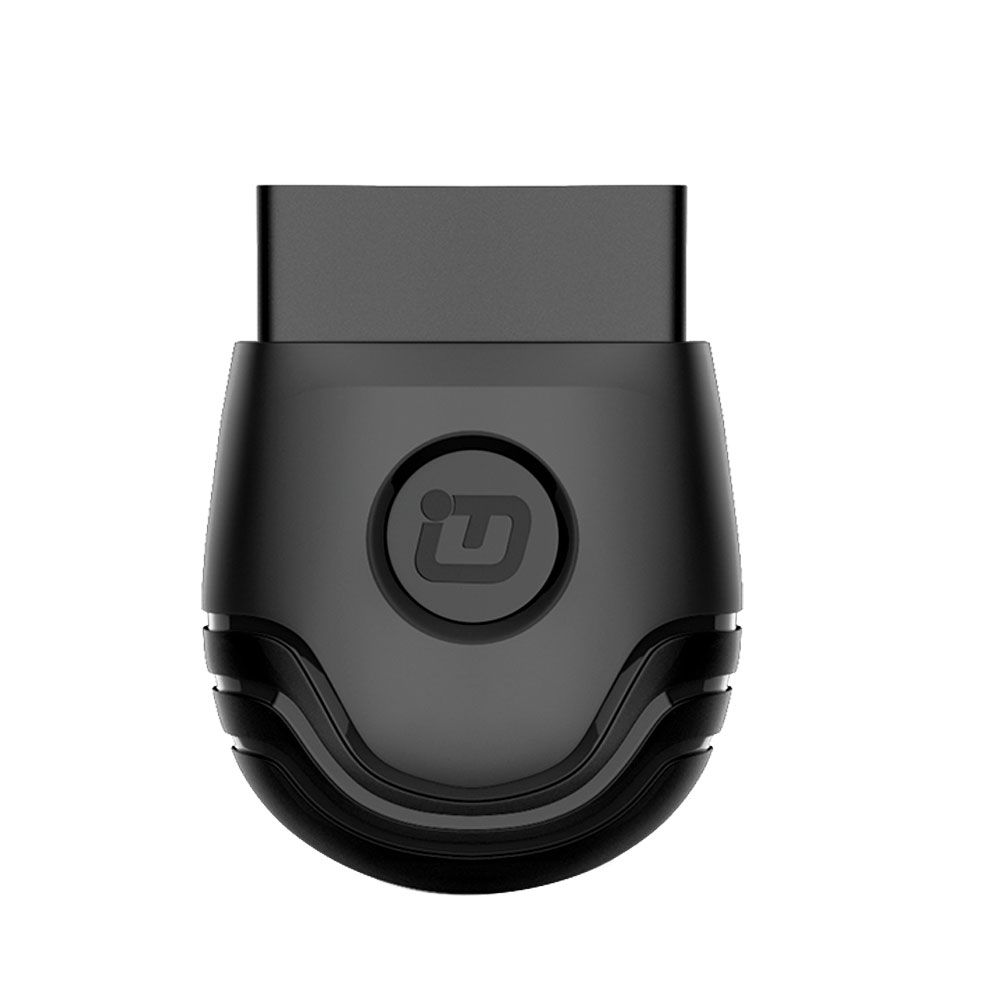

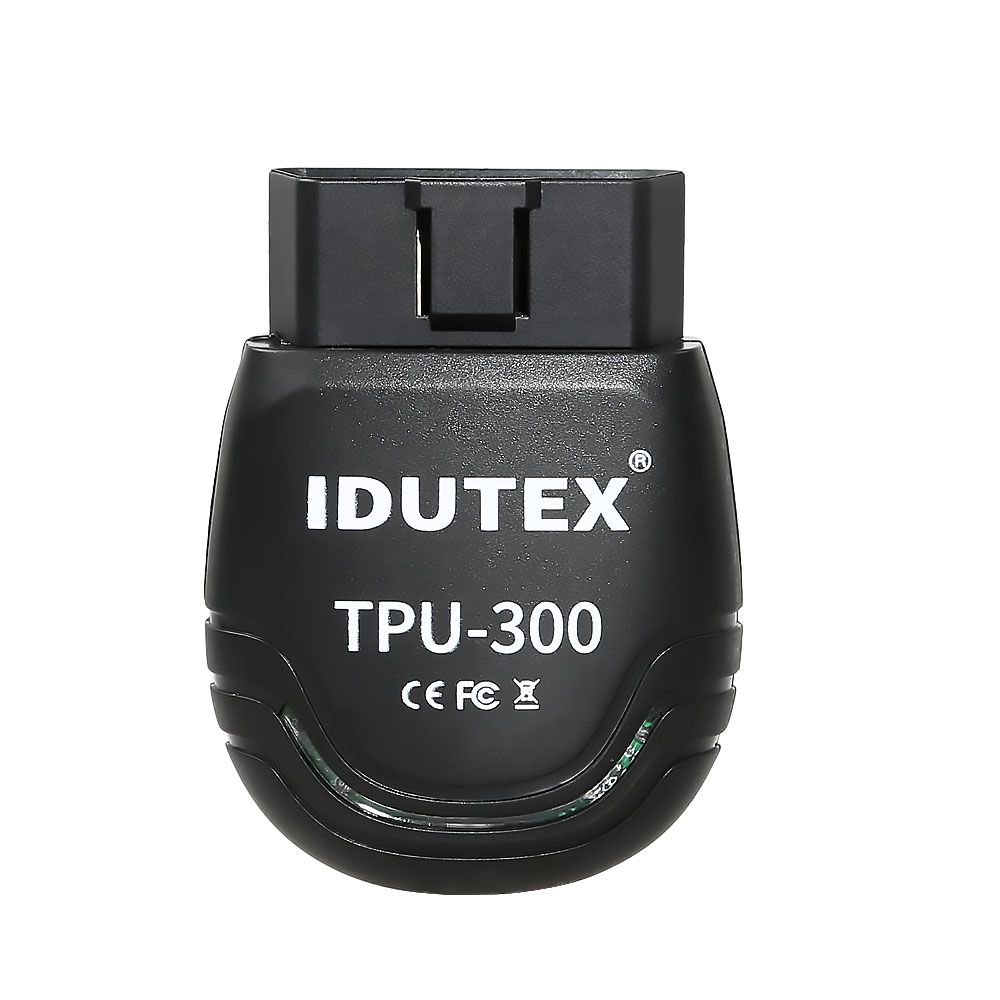

TPU300 is a OBD II scan tool based on Android system works on commercial vehicles and cars, by connecting to your phone,any users can use the small VCI to easily read&erase

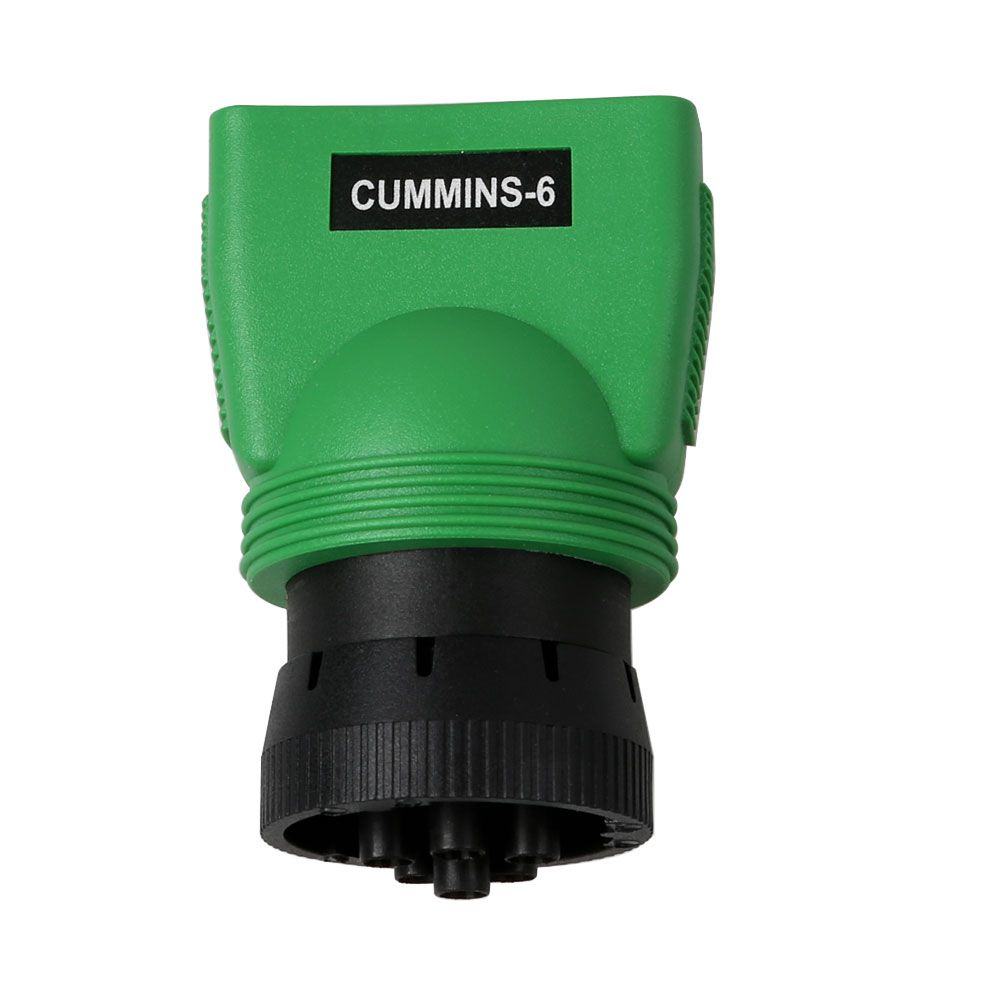

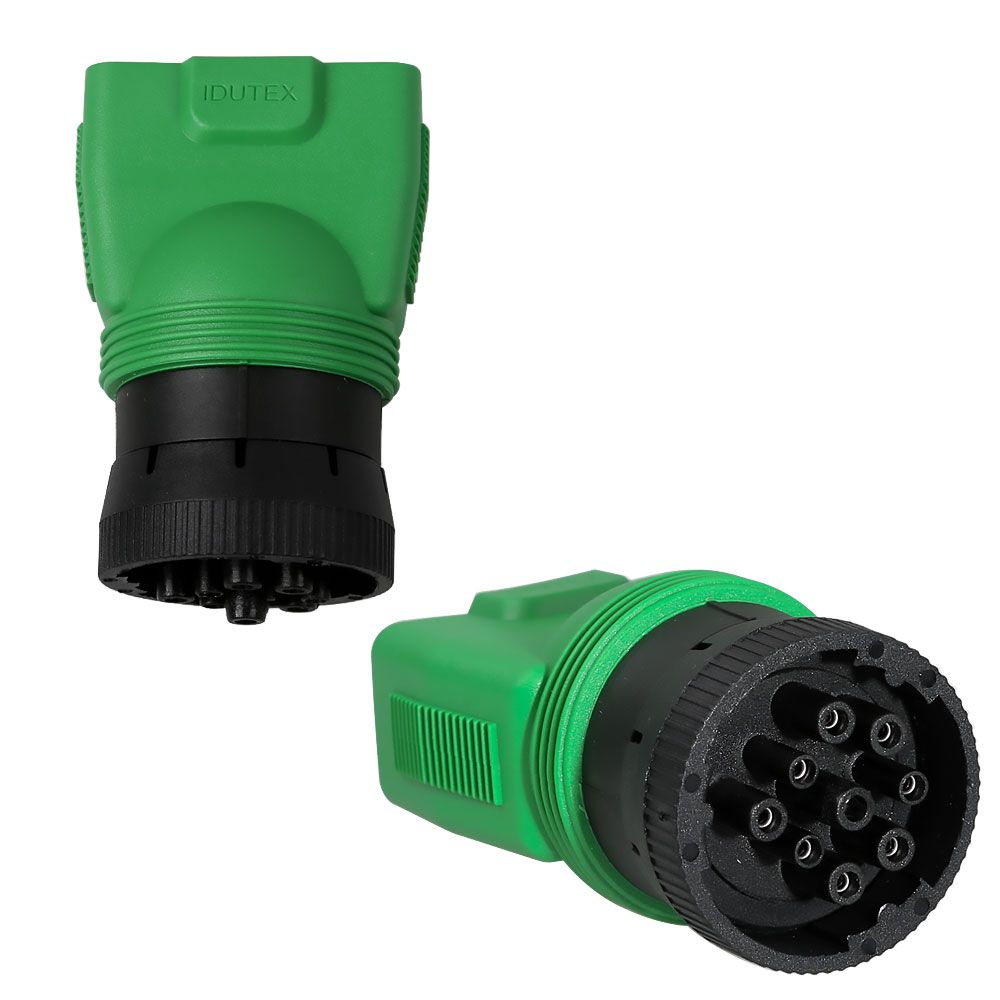

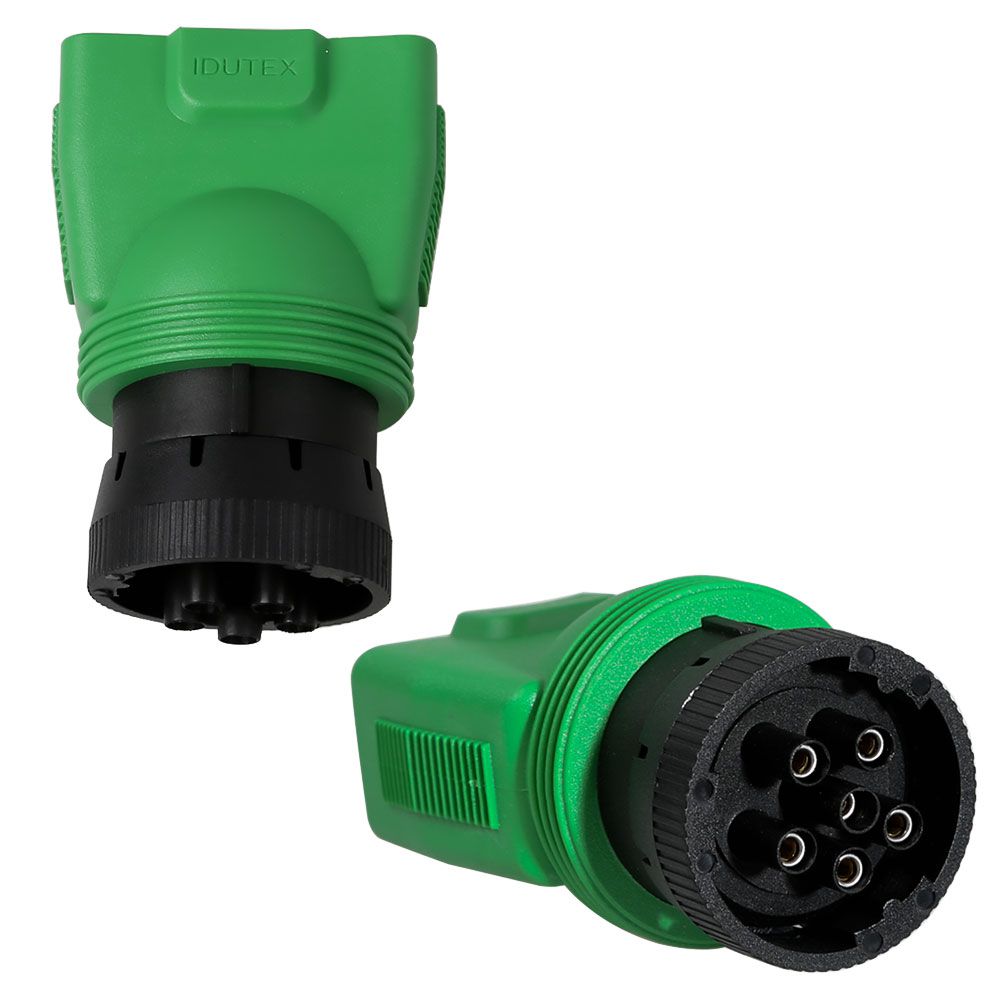

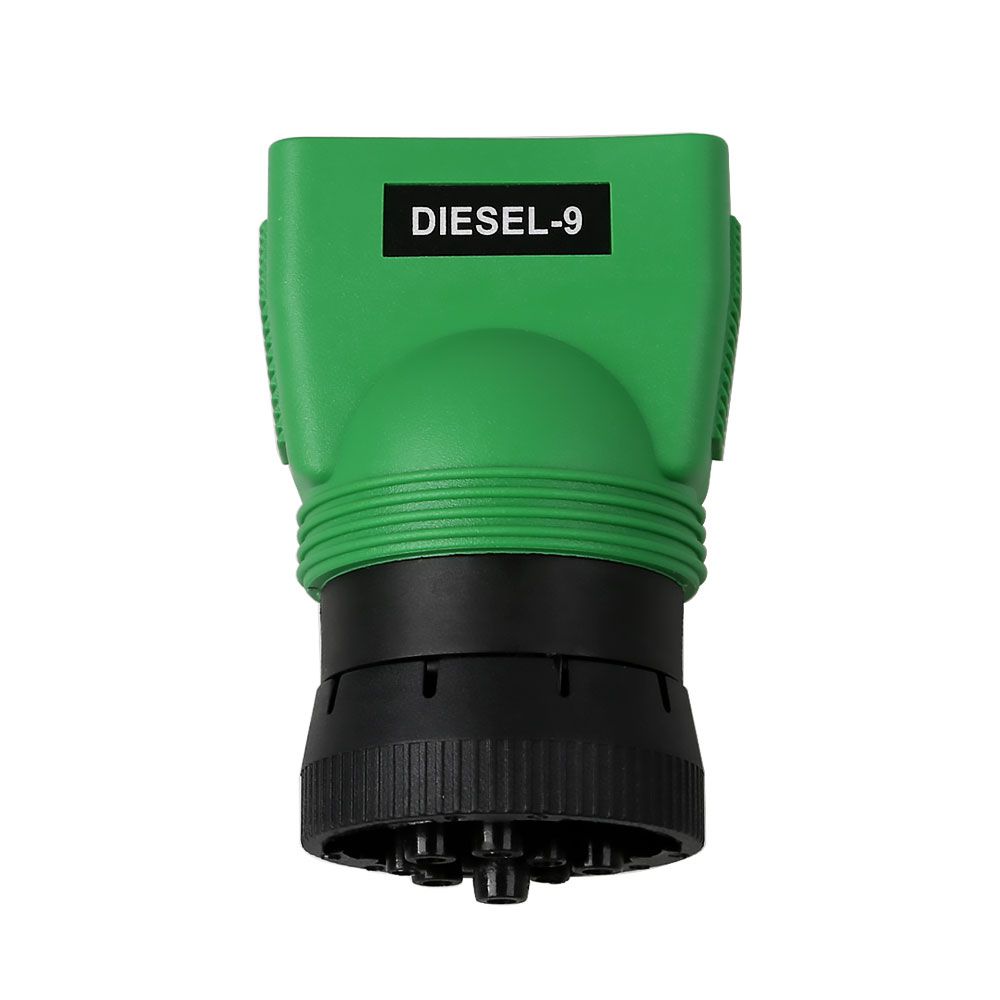

trouble codes,check data list,system and vehicle info...etc.lt concludes 9/6/16 pin adapters for your better communicate with any kinds of vehicles.
Product Feature
Hardware Feature
Hardware Feature
| Product: | TPU300 |
| Processor: | ARM 32-bit Cortex processor |
| Communications: | Bluetooth |
| Operating Temperature: | -10 to 70'C(14-158F),Relative Humidity:<90% |
| Storage Temperature: | -30 to 120C(-22 to 248F),Relative Humidity:<90% |
| Dimension: | 108mm*108mm*55.3mm |
| Unit Weight: | NW:0.04kg(0.0881b)GW:0.1kg(0.4lb) |
| Protocol: | J1708,J1939,S9,,65,SAE-J1850VPW,SAE-J1850PWM |
| Connectors Supported: | |OBD-16,OBD-9,OBD-6 |
| Input Voltage: | DC 8-26V |
| Year Model: | 1990-newest |
| Operating System: | Android 4.0 and above |
Software feature:
1.The heavy-duty vehicle model and engine type can be auto detected by automatic VIN.
2.OE Level Fault Code Information:display 99% of Heavy-Duty and EOBD fault codes with detailed OEM level
component and trailer descriptions.
3.Read and erase generic codes(PO,P2,P3 and UO),manufacturer specific codes(P1,P3 and U1),and pending
codes for cars,mini vans and light duty.
4.Display DTC definition,freeze frame data,monitor and I/M readiness status(emissions),and vehicle information
(VIN,CIN and CVN)
5.Read,store and playback live O2 sensor test data.
6.Read PCM live data stream,with professional graphic data Display,includes waveform and instrument mode.
7.Support standard value of data stream for heavy duty vehicle.
8.Support online and offline DTC query.Also,Support online dictionary.
9.Support one-key feedback,one-key online update.
Product Function:
●Auto detected by automatic VIN.
●Read ECU Information, Data Stream.
●Read and erase generic codes (PO, P2, P3 and U0).
●Read freeze frame data, monitor and I/M readiness status.
●Read vehicle information (VIN, CIN and CVN).
●Read, store and playback live 02 sensor test data.
●Read PCM live data stream, with professional graphic data Display, includes
waveform and instrument mode.
Supported Protocols:
SAE J1939, SAE J1708, ISO 9141-2, ISO 14230 (KWP2000), ISO 15765 (CAN), SAE J1850
(PWM), SAE J1850 (VPW)

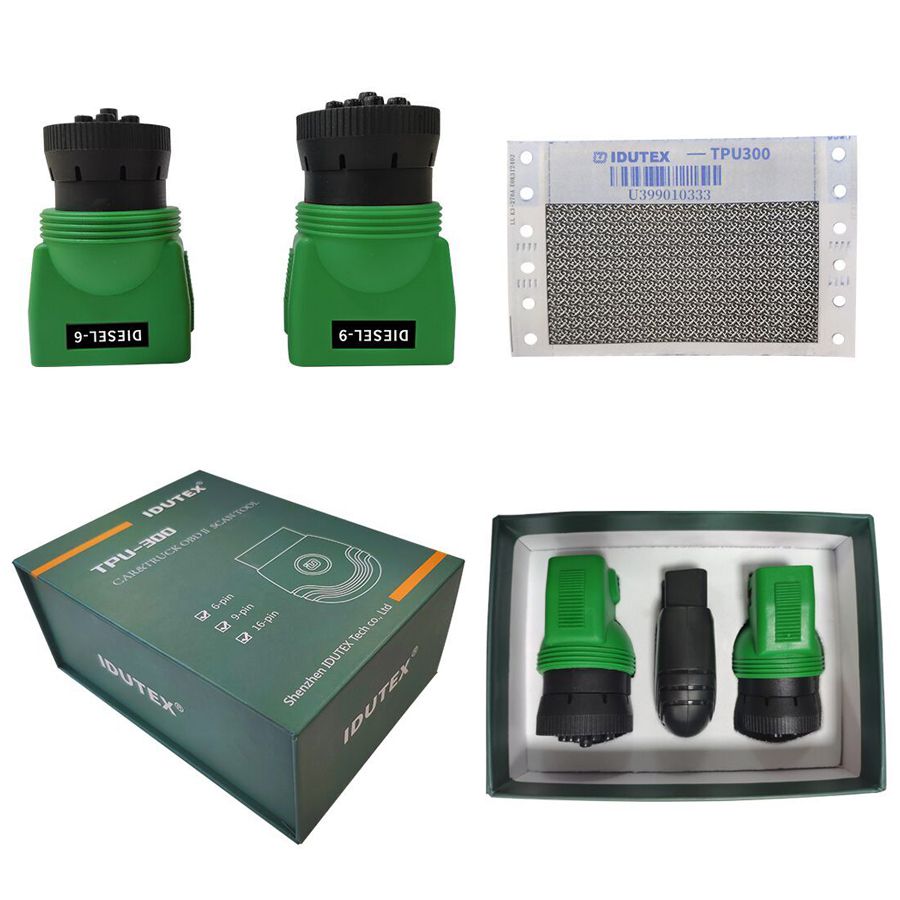

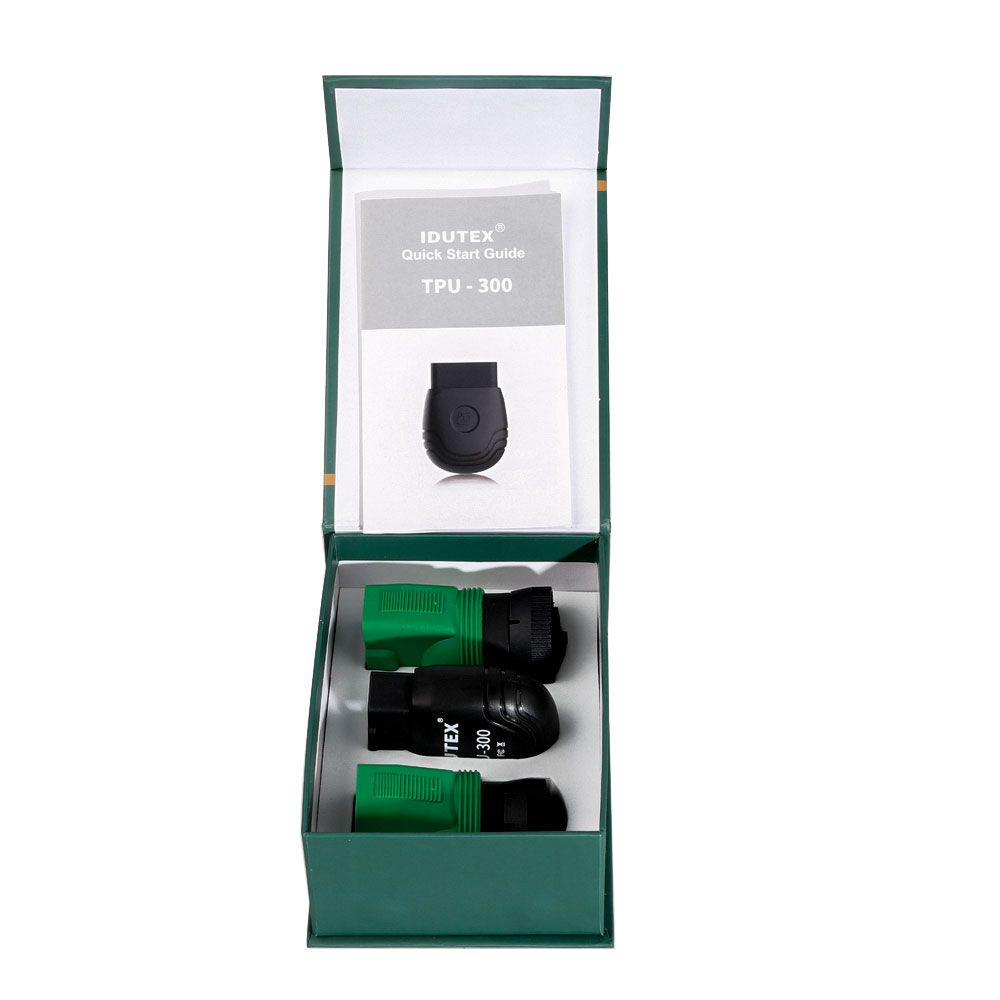

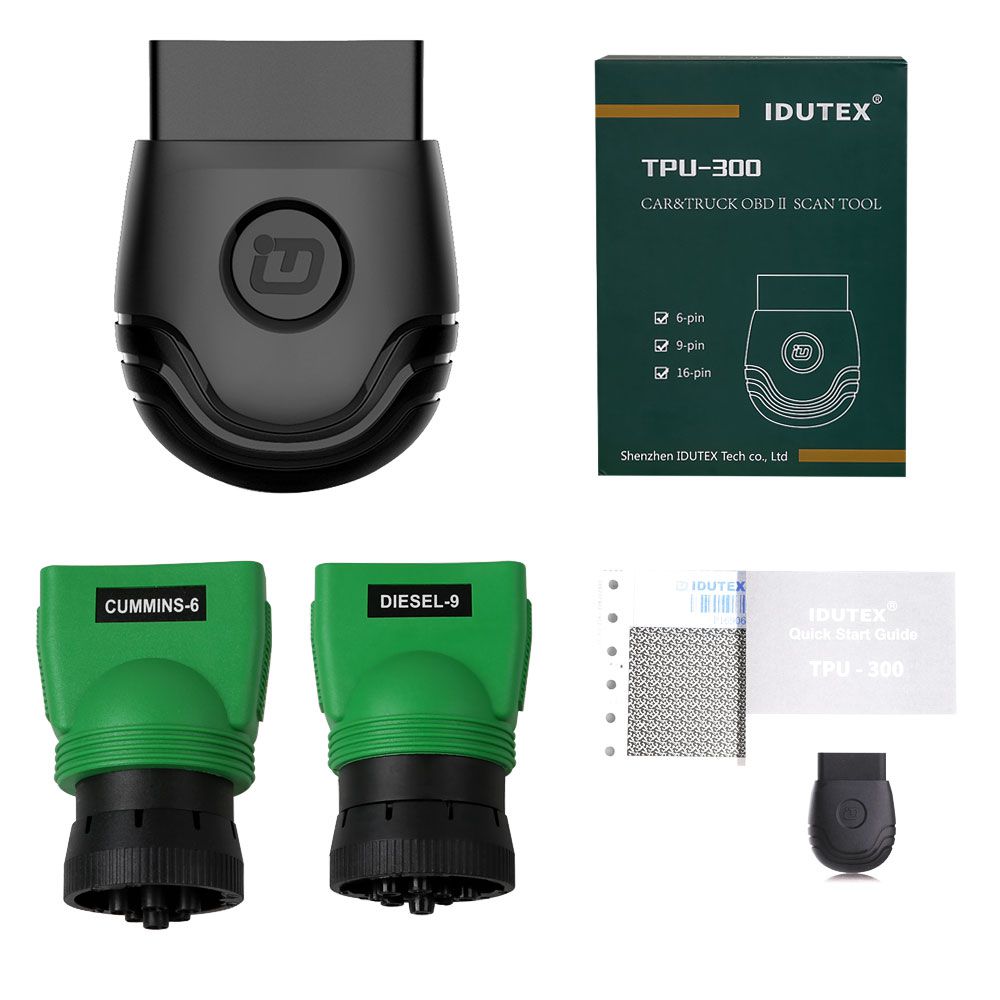

Package includes:
