JINGJI P1 Flat Key Cutting Machine
Top 7 Reasons to Get JINGJI P1 Vertical Key Cutting Machine:
1.Sheet metal stamping welding structure is durable and long-lasting
2.40° V cutter with strong power driven by brushless motor
3. Micrometric (Patent) tracer adjustment mechanism for precise calibration with the cutter
4.Four-sided revolving clamp cut a large variety of keys more easily
5.Y axis ballscrew
6.cutter is seperated with the motor so no vibration when cutting
7.Compact and portable

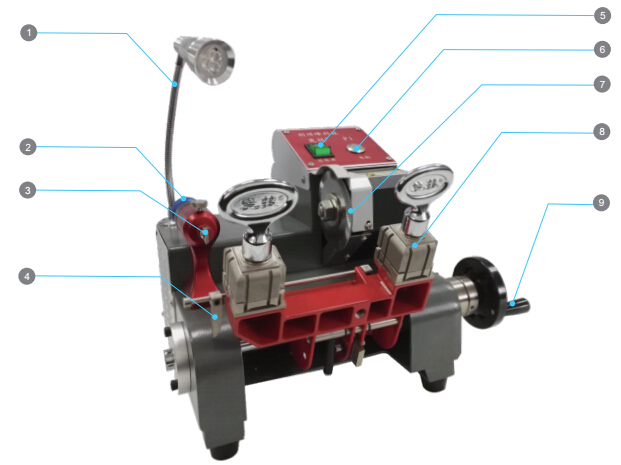

1.LED light
2.Micrometric adjustment
3.Tracer
4. Spacer/ Locating plate
5.Power switch
6.Motor switch
7.40° V cutter
8.Four- sided revolving clamp
9.X axis rotating handwheel
JINGJI P1 Flat Key Cutting Machine Machine Parameters:
Product name:JingJi P1 flat key cutting machine
Dimensions:L355MM*W250MM*H240MM
weight:G.W 16KG (N.W 15KG)
Working method:Manual
Error scope:≤0.02mm
Keys:Cylinder and cruciform keys
Jaw:Four-sided reversable jaw
Voltage:AC220V
Current :10A
Power:120W 50-60HZ
Material:Sheet metal stamping welding
Revolution:1800rpm/min
Voice:Nearly voiceless
Machine Accessories List:
1pc x JINGJI P1 Flat Key Cutting Machine
