- This is a vehicle diagnostic tool interface scanner, which is is used to read trouble codes, clear trouble codes and detect fuel pressure and so on.
- OBDII Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
- The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go.
- To uninstall the program, simply delete the entire contents of the folder where the program resides.
- The software supports four platforms - For DOS/Windows/Android. This product is a non-oem, generic product.
Notice: This device can't work with IOS system.
- Works with all OBD-II compliant vehicles
- Wireless (Bluetooth)
- Software included for Palm, PDA
- Software included for Windows PC
- Software included for Windows Smartphone
- Supports ISO 9141, KWP2000
- Supports SAE J1850
- • Supports CAN bus

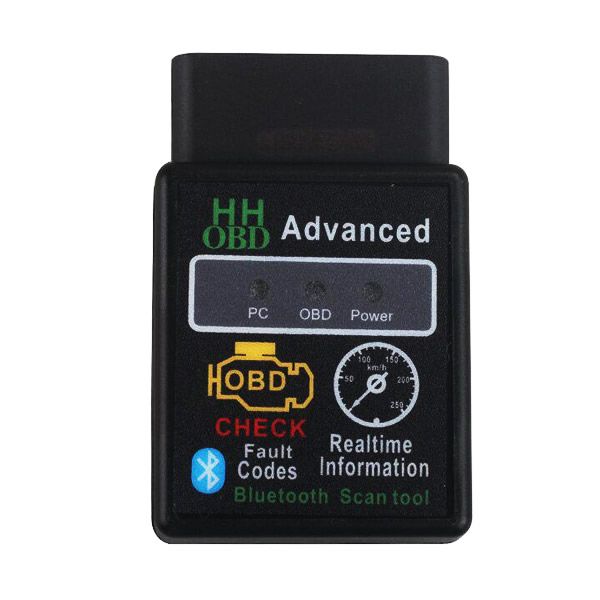

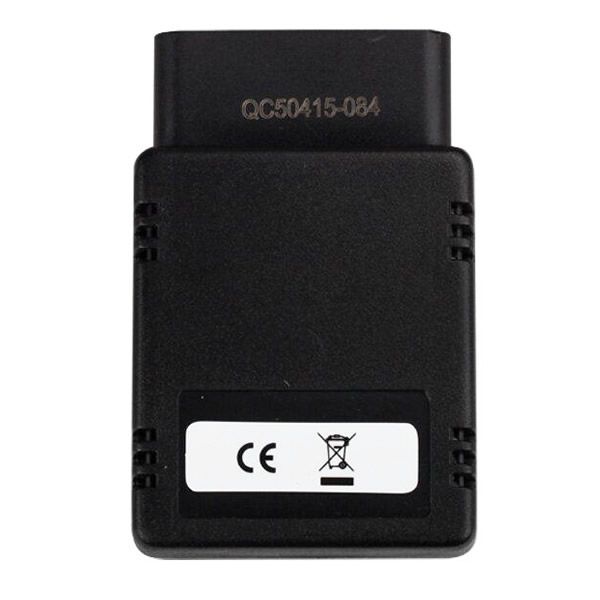

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Specification:
- Support OBD-II protocols as follows: * ISO15765-4 (CAN) * ISO14230-4 (KWP2000) * ISO9141-2 * J1850 VPW * J1850 PWM
- SAE J1850 PWM (41.6 kbaud)
- SAE J1850 VPW (10.4 kbaud)
- ISO 9141-2 (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (fast init, 10.4 kbaud)
- ISO 15765-4 CAN (11 bit ID, 500 kbaud)
- ISO 15765-4 CAN (29 bit ID, 500 kbaud)
- ISO 15765-4 CAN (11 bit ID, 250 kbaud)
- ISO 15765-4 CAN (29 bit ID, 250 kbaud)
- Device type: Car bluetooth read interface scanner
- Interface type: Auto ELM327 V1.5 interface
V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Free Software:
- Scantool.net
- GM Mode 22 Scan Tool by Terry
- OBD Gauge for PalmOS and Pocket PC by Dana Peters
- OBD Logger by Jonathan Senkerik
- OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
- OBD2crazy.com
- OBD2 Scantool by Ivan Andrewjeski
- OBDII for ELM322 by David Huffman
- pyOBD by Donour Sizemore for MacOSX and Linux
- RDDTC by Pete Calinski
- Real Scan by Brent Harris
- ScanTest for Pocket PC by Ivan Ganev aka a-ser
- OBD by WDT
V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Functions:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
Many others

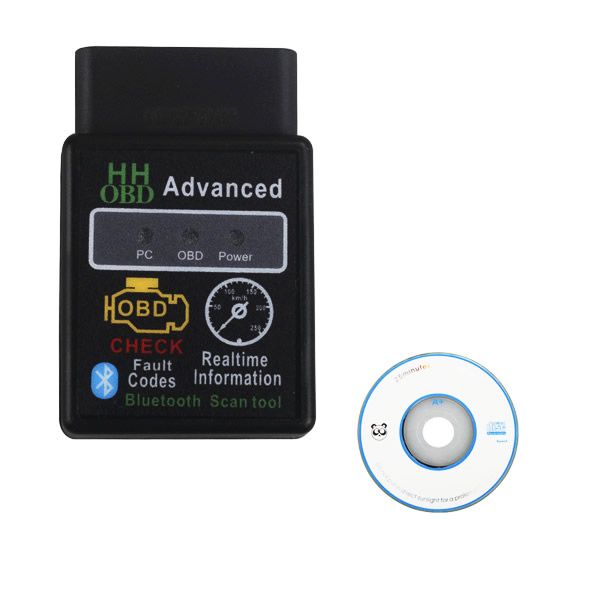

Package List:
- 1pc x ELM 327 OBD HH Mini Bluetooth V2.1
- 1pc x CD Driver
