Free Update Online for One Year, after one year it will cost $300 per year.
Dealer Code: 860755B1
OBDSTAR X300 Pro4 is an all-purpose immobiliser programming device meticulously designed by OBDSTAR for locksmith. The device inherits the automobile IMMObiliser programming technology from OBDSTAR with a lot of advantages of early start, wide model coverage, fast programming speed and special features All-in-one machine structure, more convenient to use full optimization hardware, running more stable, faster and smoother.
OBDSTAR X300 Pro 4 Programmer Function List:
Programming Keys
Erase Keys
Programming Remote
Read Key Numbers
Pincode Reading
EEPROM Chip Read
OBDII Diagnosis
OBDSTAR X300 Pro 4 Programmer Support Car Models List:
Europe:
BMW,Benz,Borgward,Peugeot,Citroen,DS,Dacia,Fiat,Jaguar,Lancia,Land Rover,Opel,Porsche,Renault,Smart,Volvo,Iveco,VW/Audi/Skoda/Seat
Japan:
Honda,ISUZU,Mazda,Mitsubishi,Nissan,Subaru,Suzuki,Toyota,Lexus
Korea:
Hyundai,KIA,Ssangyong
America:
Ford,Chrysler,GM
China:
Baic,Besturn,Bisu,Brilliance,BYD,Changan,Changhe,Chery,Cowin,DFFengshen,DFFG,Dfliuzhou,Enranger,Foton,Geely,Greatwall,Hafei,Hanteng,Hawtai,Himiko
Hongqi,Huanghai,JAC,Jiabao,JMC,Lifan,Lufeng,Luxgen,Maxus,Qnlotus,Qoros,Roewe,SGMw,SWN,SoUEAST,TJFAW,Traum,Trumpchi,Xenia,Yema,ZD,Zhongxing,Zotye,Changfeng

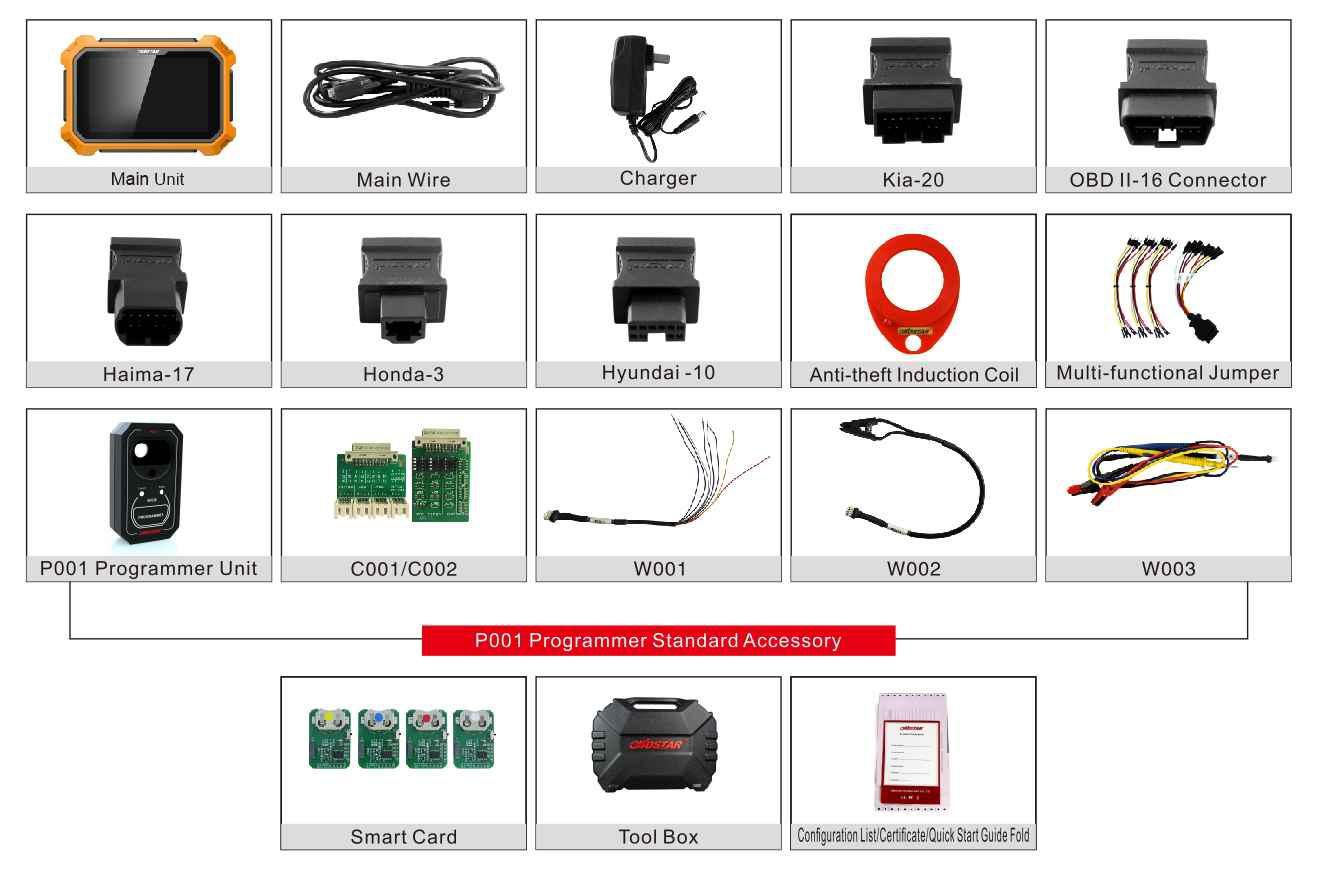

Comparision between X300 PRO 4 and X300 DP PAD PLUS:
| Function | Prouduct Photo | ||
| X300DP Plus | X300 Pro 4 | ||
 |
 |
||
| Available Or Not | |||
| Software (IMMO) |
Programming Keys | √ | √ |
| Erase Keys | √ | √ | |
| Programming Remote | √ | √ | |
| Read Key Numbers | √ | √ | |
| Pincode Reading | √ | √ | |
| EEPROM Chip Read | √ | √ | |
| OBDII Diagnosis | √ | √ | |
| Cluster Calibration | √ | × | |
| Diagnosis | √ | × | |
| ECU Clone | √ | × | |
| ECU Programming | √ | × | |
| Oil Service Reset | √ | × | |
| Other Special Functions | √ | × | |
| RT100 Remote | √ | × | |
| Luxury Models Coverage | √ | × | |
| Specification | Opration System | Android5.1.1 | Android5.1.1 |
| Camera | supported | × | |
| CPU | Exynos4418 Dual Core ARM Cortex A9 1.4GHz |
RK3128 quad-core, ARM Cortex A7@1.2Ghz |
|
| Battery | 3700mA, rechargeable polymer lithium battery |
2600Ma lithium ion | |
| Extension Memory Card | 32G Micro SD(TF) card supported | 32G Micro SD(TF) card supported | |
| Storage Capacity | 32GB | 16GB | |
| LCD | 8.0 inch | 5.0 inch | |
| LCD resolution | 1280*800 | 800*600 | |
| Touch screen | Capacitive touch screen | Capacitive touch screen | |
| Wi-Fi | supported | supported | |
| Working Temperature | -10℃~55℃（14℉~131℉） | -20℃~55℃（14℉~131℉） | |
| Storage Temperature | -20℃~70℃（-4℉~158℉） | -20℃~70℃（-4℉~158℉） | |
| Weight | about 1.0kg | about 700g | |
| Dimension | 254mm*174mm*35mm | 140mm*89mm*18mm | |
| Accessory |  |
 |
|

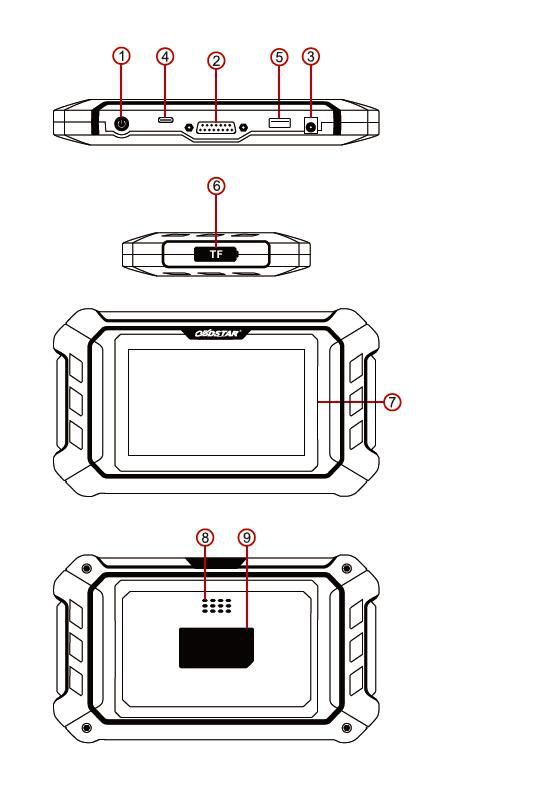

OBDSTAR X300 Pro4 Overview:
① Power/Lock
② Main Cable Port
③ Charging Port
④ TYPE-C Interface
⑤ USB Interface
⑥ TF Card Slot
⑦ Touchscreen/Display Screen
⑧ Speaker
⑨ Serial Number Sticker

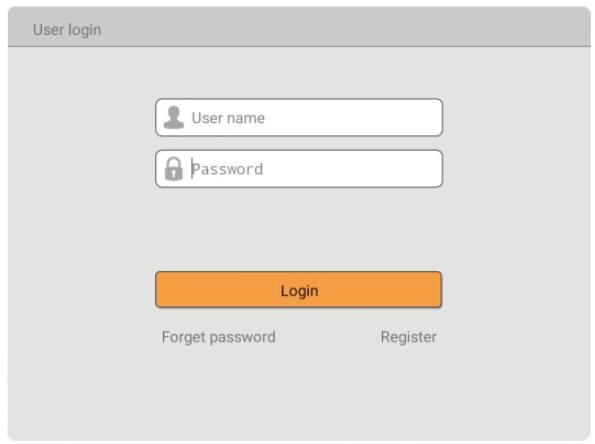

How to Register Activation and Update?
Power on
Long press Power button for 5 seconds

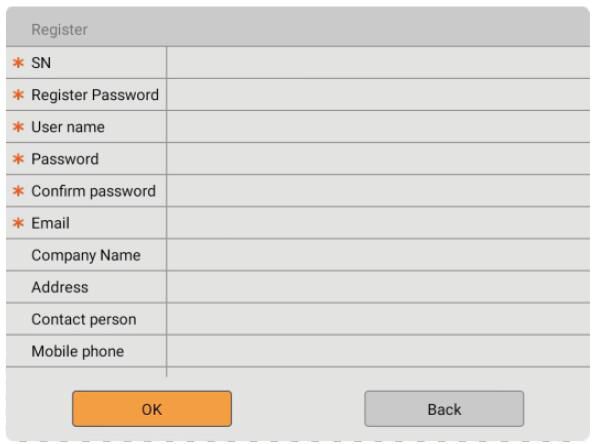

Register Activation
Click on the VCI function on the screen-->User information-->Register-->fill in information
OBDSTAR X300 Pro 4 Programmer Specifications:
Operation System: Android5.1.1
CPU: RK3128 quad-core,ARM Cortex A7@1.2Ghz
Battery: 2600Ma lithium ion
Extension Memory Card: 32G Micro SD(TF) card supported
Storage Capacity: 16GB
LCD: 5.0 inch
LCD Resolution: 800*600
Touch Screen: Capacitive touch screen
WiFi: Supported
Working Temperatures: -20℃~55℃（14℉~131℉）
Storage Temperature: -20℃~70℃（-4℉~158℉）
Weight: About 700g
Dimension: 140mm*89mm*18mm

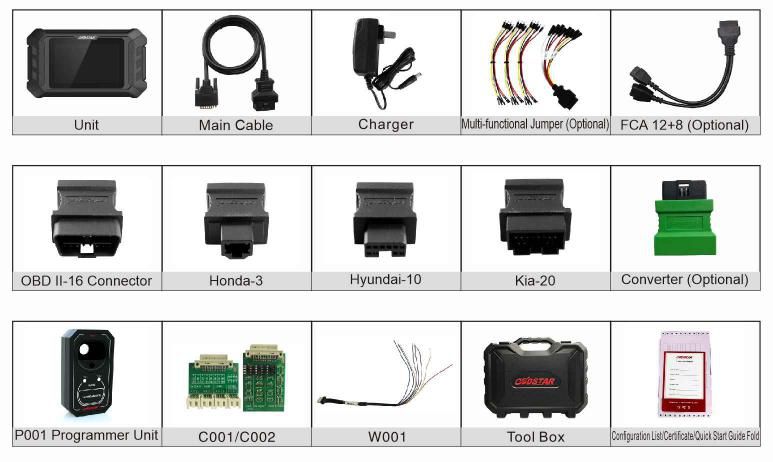

OBDSTAR X300 Pro 4 Programmer Package list:
1pc x X300 Pro 4 Unit
1pc x Main cable
1pc x Charger
1pc x OBDII-16
1pc x HYUNDA-10
1pc x KIA-20
1pc x HONDA-3
1pc x P001 Programmer
1pc x C001 Board
1pc x C002 Board
1pc x W001
1pc x Tool Box
1pc x OBDSTAR Certificate
1pc x X300 Pro 4 Fast Guide Manual
1pc x Packing List
1pc x Multifunctional Jumper (Optional)
1pc x Renault Converter (Optional)
1pc x FCA 12+8 (Optional)
