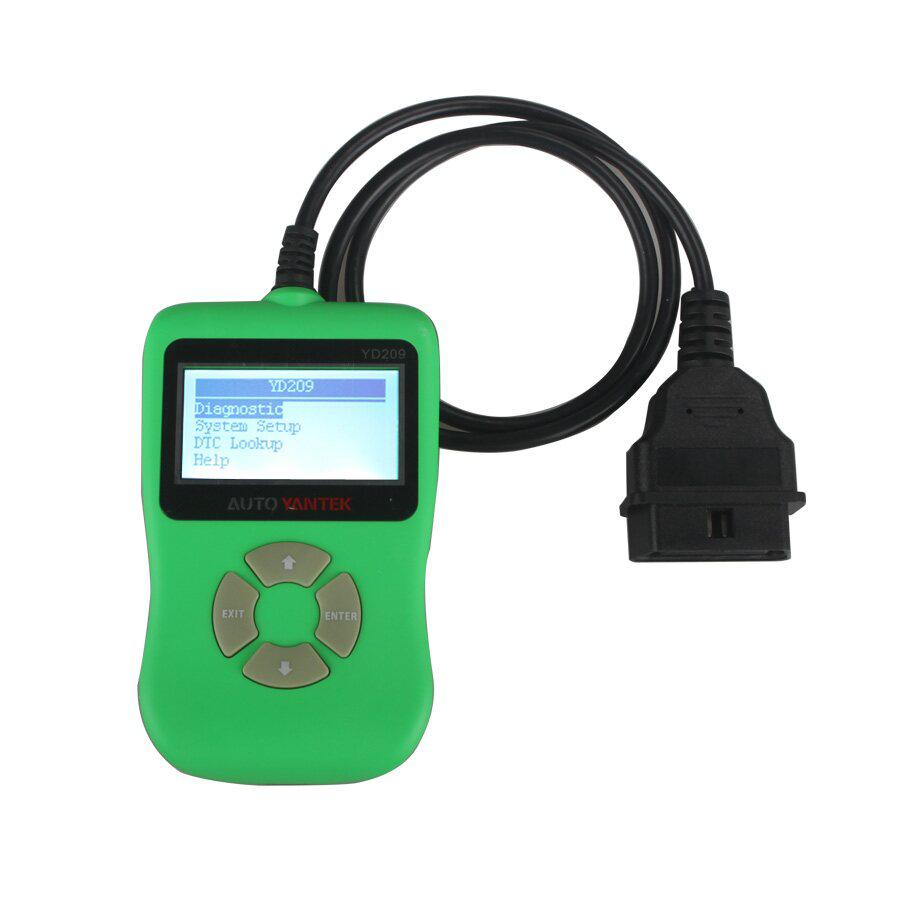

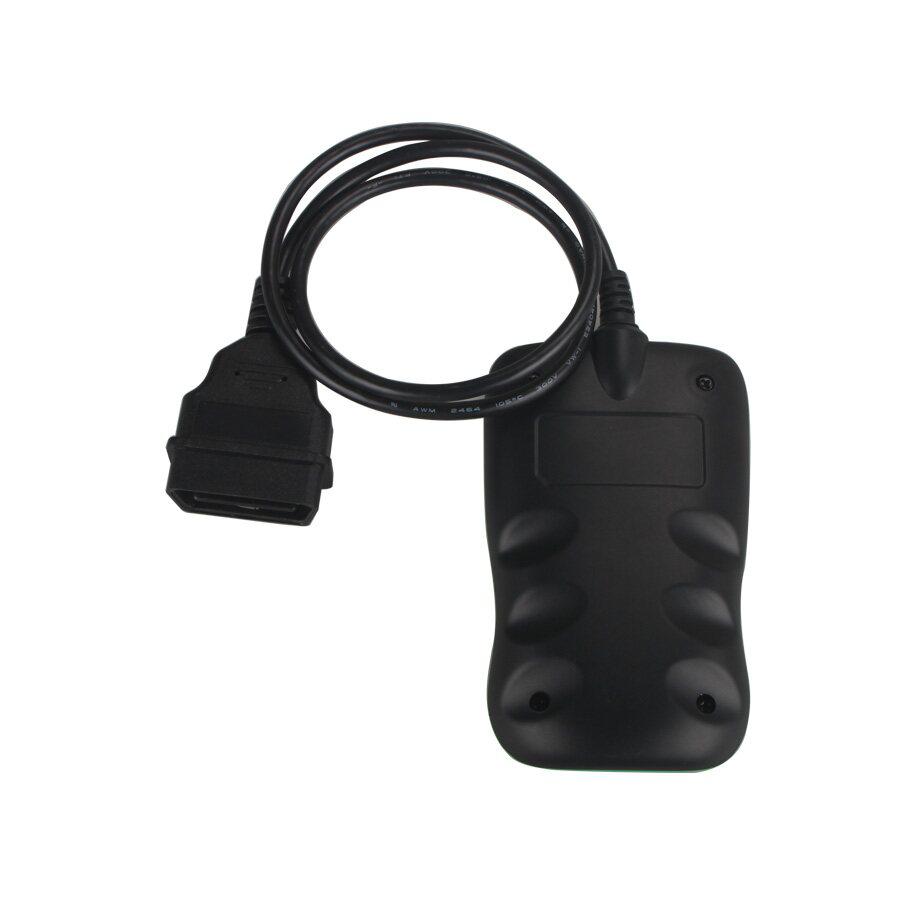

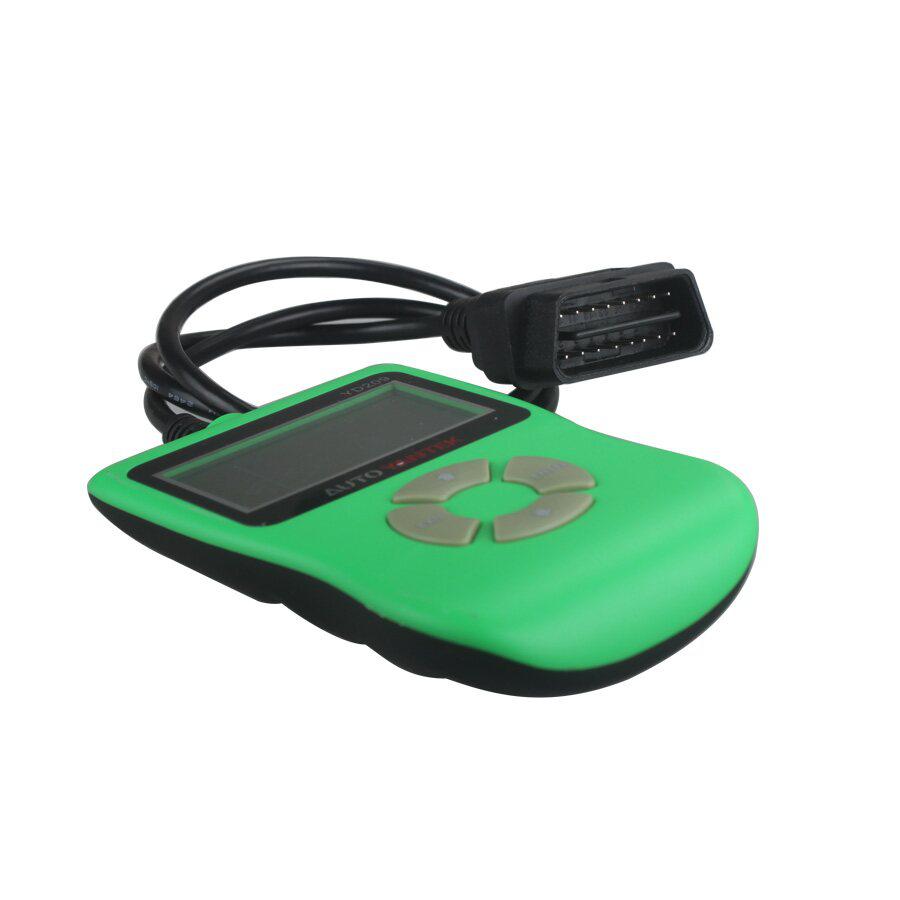

YD209 DIY Auto OBDII Code Scanner Support Online Update
YD209 DIY Auto OBDII Code Scanner Features:
- Read DTCs.
- Clear DTCs.
- View live Datastream.
- View freeze data.
- Reading I/M readiness status data.
- Restrieve vehicle information.
- Compatible with all 1996 and newer vehicles(OBDII & CAN).
- Supported protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000(ISO 14230), and CAN(control Area Network ISO 11898).
- Support English.
- One-year limited warranty.
YD209 DIY Auto OBDII Code Scanner Specification:
- CPU: ARM
- Display: Backlit, 128 x 64 pixel display with contrast adjustment
- Working Temperature: 0 to 60℃ (32 to 140℉)
- Storage Temperature: -20 to 70℃ (-4 to 158℉)
- Power: 8-18 Volts powered by vehicle battery
- Dimensions(L*W*H): 126*75*25mm (4.9*2.96*0.98in)
- Weight: 380g
YD209 DIY Auto OBDII Code Scanner Software screenshot:

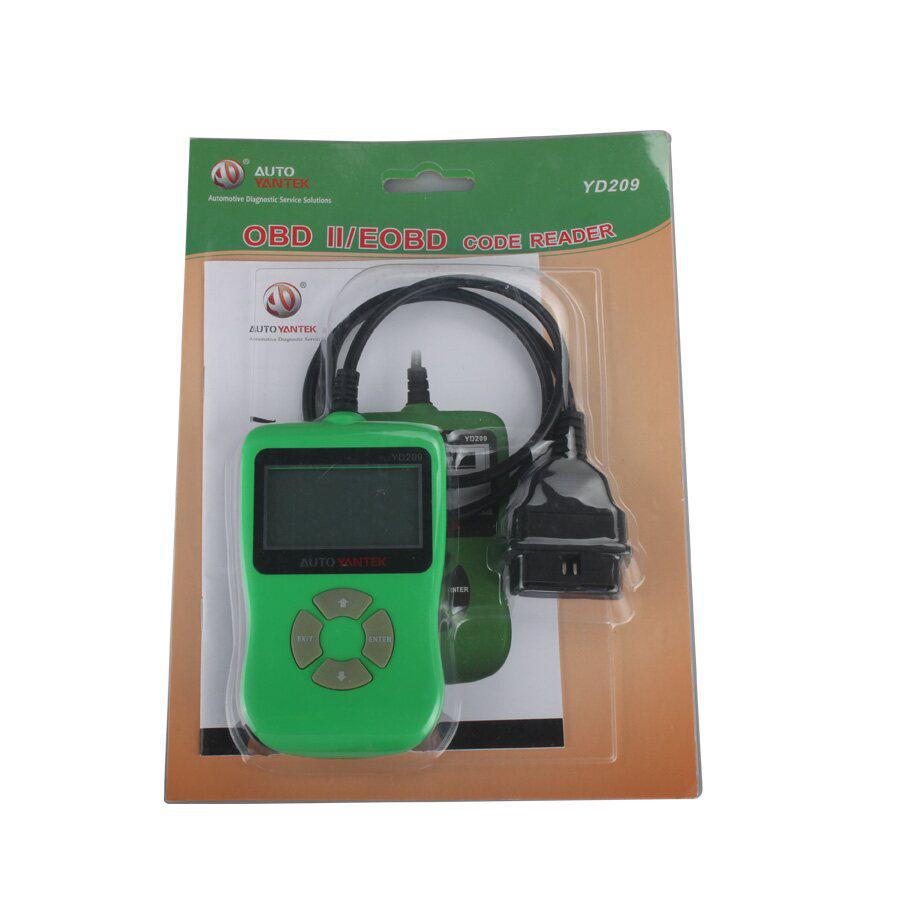

Package including:
- 1pc x OBDII/EOBD code reader

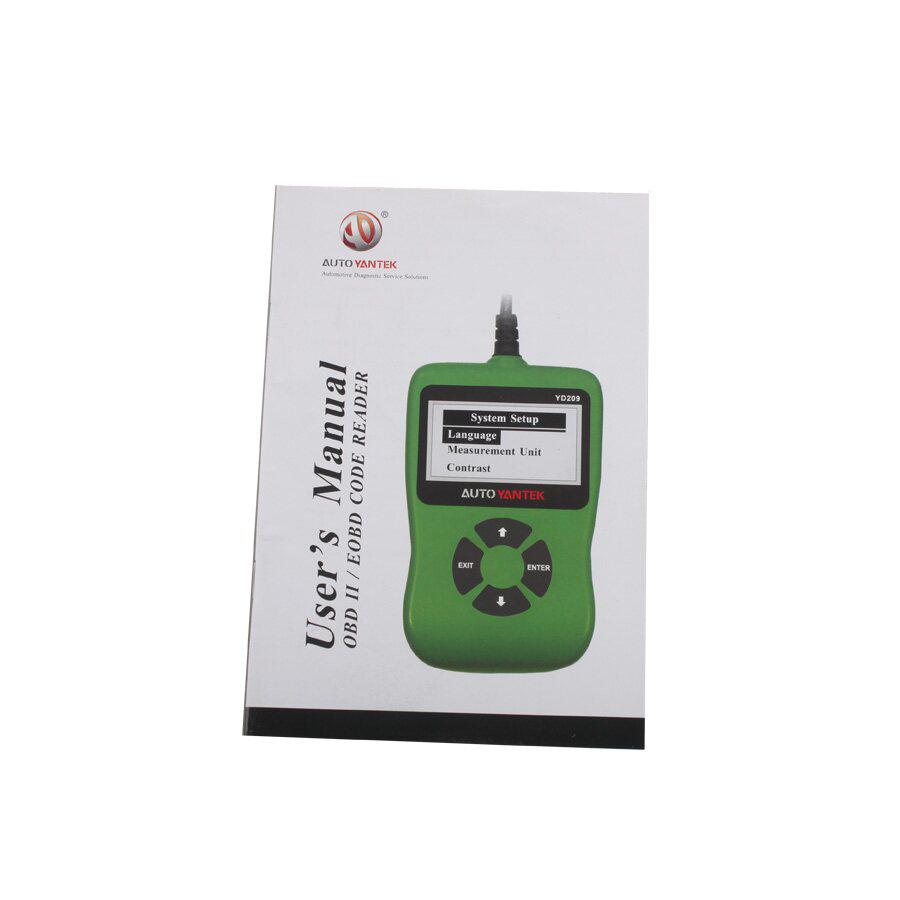

- 1pc x User’s guide
