XTOOL EZ300 Four System Diagnosis Tool with TPMS and Oil Light Reset Function Warranty for 2 Years

XTOOL EZ300 Four System Diagnosis Tool with TPMS and Oil Light Reset Function

Layout of EZ300:

1. SD CardPort: up to 32GB extension SD card
2. HDMIPort: Compatible with HDMI
3. Micro USB: Battery charge or data synchronization with PC.
4. AudiPort: For headphone
5. Power Button: Power on or off

Picture of EZ300 Tablet

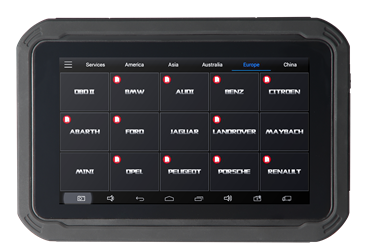

• Front View of EZ300 Tablet




  Back View of EZ300 Tablet



• Side View of EZ300 Tablet



• EZ300 Exploded Diagram



Layout of EZ300 VCI Box

1. Power Indicator: it turns green when power is on.
2. Bluetooth Indicator: it turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
3. Vehicle Indicator: When VCI box is connected with vehicle successfully, it turns green.

Features of XTOOL EZ300 Four System Diagnosis Tool:

• Easy registration with EZ300 connected to WIFI
• Wireless diagnosis via Bluetooth
• One-click software update via WIFI
• Remote access
• Diagnosis reports in PDF file
• Record and playback live data
• 7 inch multi-touch screen
• On-board battery
• Extensive vehicle coverage for most US, Asian and European vehicle makes
• Easy registration with EZ300 connected to WIFI. Don’t bother to use PC for registration.

• Wireless diagnosis via ultrafast Bluetooth technology

• One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

• Remote access, which is perfect for training, demonstration and even remote diagnosis.

• Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.


• Extensive vehicle coverage for most US, Asian and European vehicle makes American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn

• Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, Audi, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV
• Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more… Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...
• Four System Diagnosis: Engine, ABS, SRS, Transmission and TPMS

• Basic Function: read fault codes, clear fault codes, live data

• Accurate live data in both Wave and Dashboard form

• Operating System: Android 4.4.4
• Memory: 1GB RAM,16GB Flash
• CPU: Quad Core, 1.3 GHz
• Display: 7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
• Sensors: Gravity Sensor, Light Sensor
• Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, MiniHDMIPort, 2.0USBPort, TF Card Port
• Battery: 2400mAh, 3.7V
• WIFI: WIFI 2.4Ghz
• Bluetooth: 100 Meters
• Power Voltage: 3.7V
• Power Consumption: 4W
• Operating Temperature: -20 to 50℃(-4 to 126℉)
• Humidity:90%
• Dimension: (L*W*H): 208*140*15.5mm

Package Including:

• 1pcs X OBD II-16
• 1pcs X Main Cable
• 1pcs X EZ300 Tablet
• 1pcs X VCI Box
• 1pcs X Charger for Tablet
• 1pcs X US Power Adapter
• 1pcs X EU  Power Adapter
• 1pcs X MicroUSB Cable
• 1pcs X Certificate of Quality
• 1pcs X Packing List
• 1pcs X User Manual
• 1pcs X Carton box
