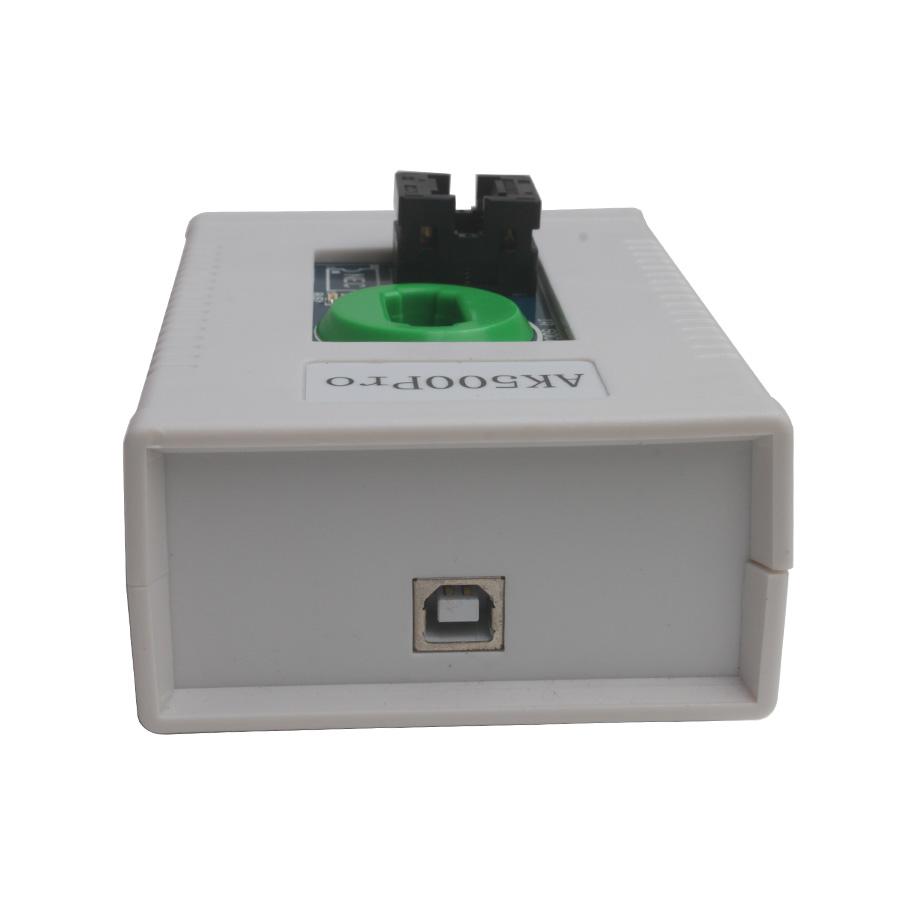

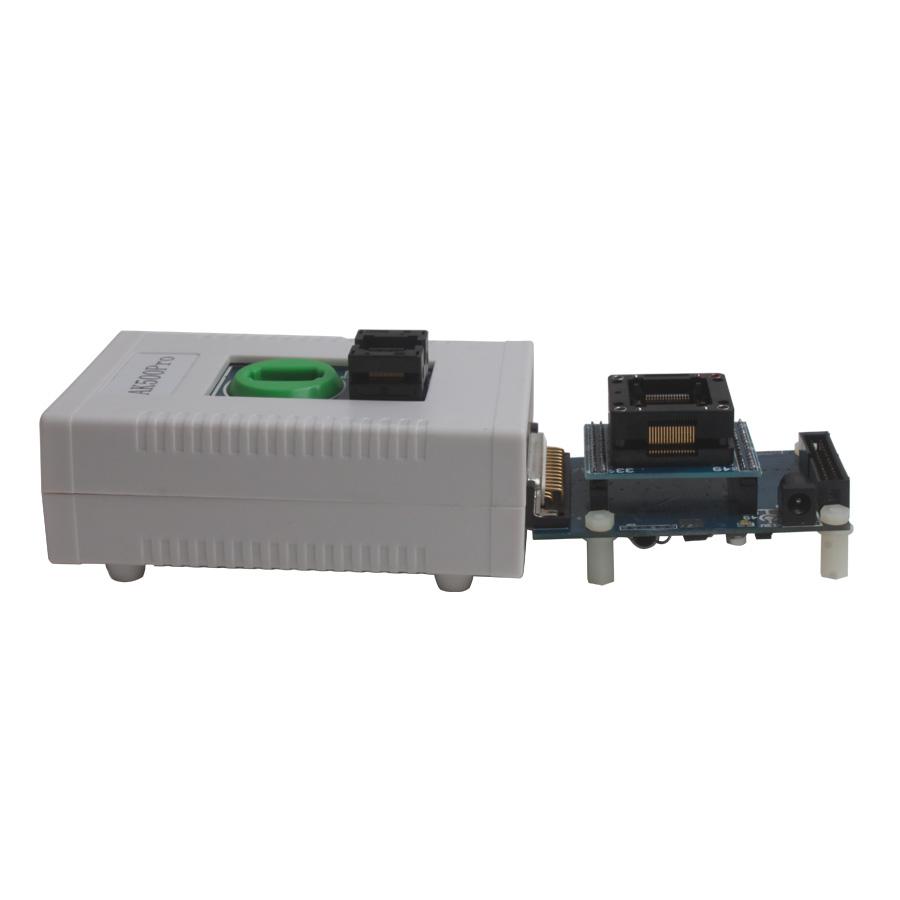

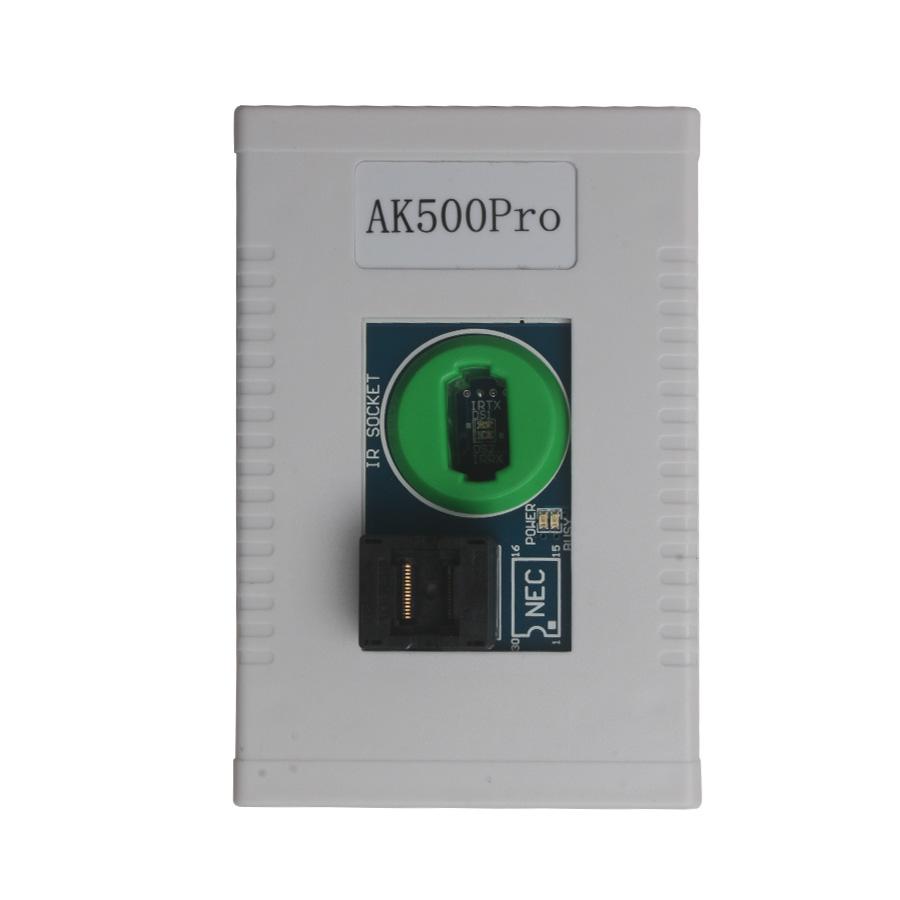

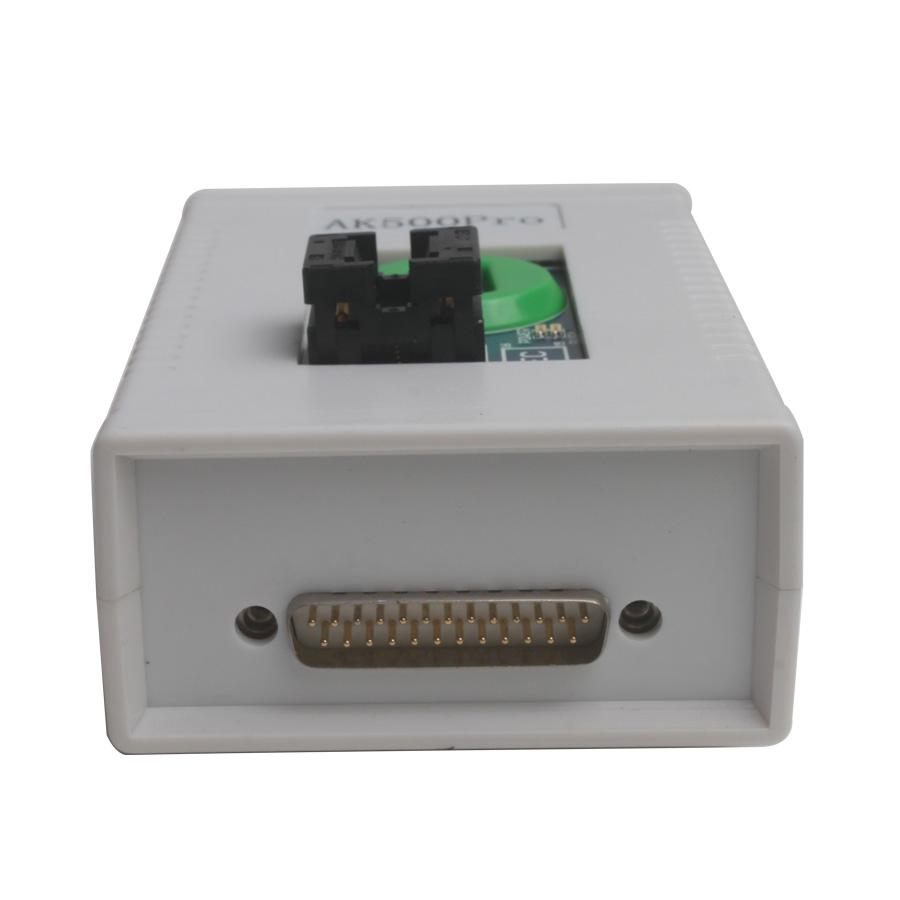

AK500Pro AK500 PRO Super Key Programmer For Mercedes Benz Without Remove ESL ESM ECU
Reasons To Get AK500 Pro
- Faster and safer to write MCU.
- Internal Benz original factory key generator.
- Support NEC fast renew, Motorola MCU safe read and write.
- Support infrared read and write NEC key and Motorola MCU key.
- Support Benz read and write "Key-less go" Key.(Only this machine support)
- Support through OBD port active Key-less function.
- Key test function: more easier to test key and EIS(ESL).
- Support ESL fast unlock, no need 32G database.
- Support through OBD read and write SBC data, easier for change SBC control unit.
Note: It is update by CD or by Email
Product Parameters
- Online Communication Interface: USB2.

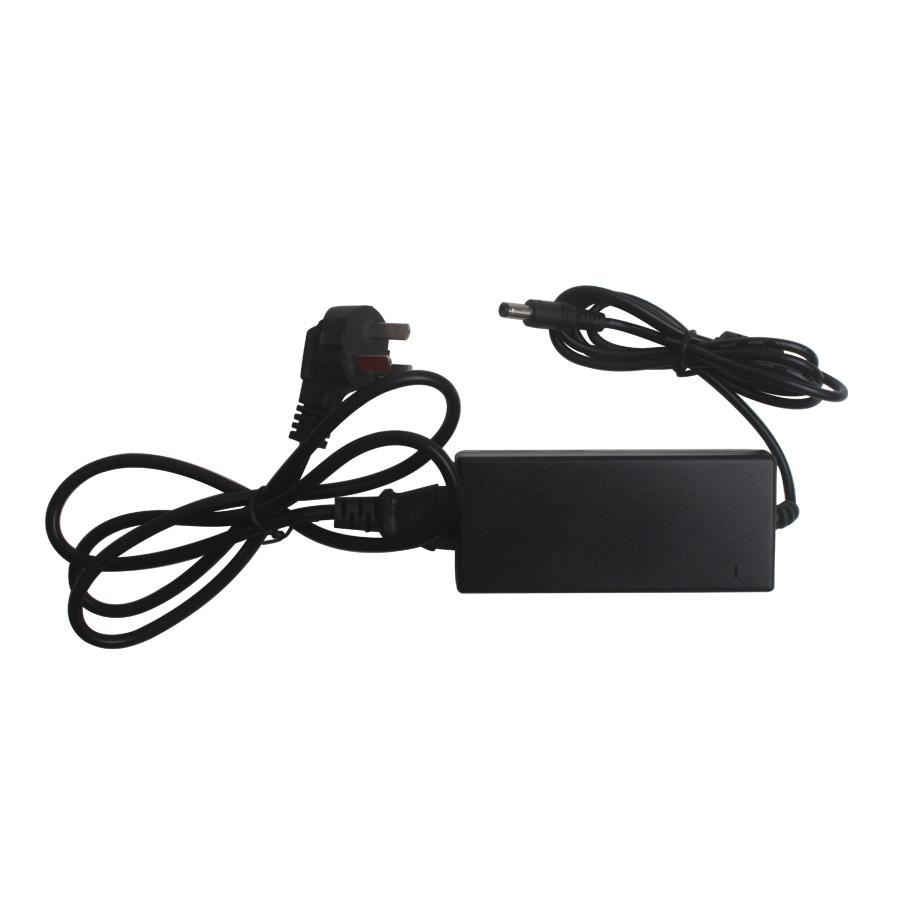

- Power Specifications: AC Input 100-240V, 50/60HZ; output 12V/2A DC power consumption: 40W
Does AK500PRO Support Mercedes Benz W204 After 2008?
Answer: so far AK500PRO doesn't support NEC eeprom key programming, but support AK500pro NEC eeprom key calculation.
W204 is with NEC eeprom, therefore AK500pro neither supports W204 nor supports the following Mercedes Benz models: w204/w207/w221/w218 and W164 after 2008 year which EIS model CPU is NEC.
Important Notice on KEYLESS GO Function
If you want to use KEYLESS GO function: the key used to make key must be new and blank key, it can't be used key. New key must be as the same type and frequency as the original keyless go key. Otherwise it will cannot support keyless go function.
AK500 do ESL: read out original ESL data, generate new key data, write new data .binw back to ESL( now must use that 32GB hard disk database then can renew ESL)
When you deal W203 ECU, if your ECU is simens, it do not have eeprom. Resolution: Read flash of ecu, then make renew. Then use MB STAR to do doing.
AK500PRO can write keyless go key. But you must wirte via IR( Your keyless go key must be completely new or blank. If your key is old, it can read out date, then it can not be write again, you must renew it then can write).
The difference between AK500Pro and AK500
| AK500 | AK500Pro |

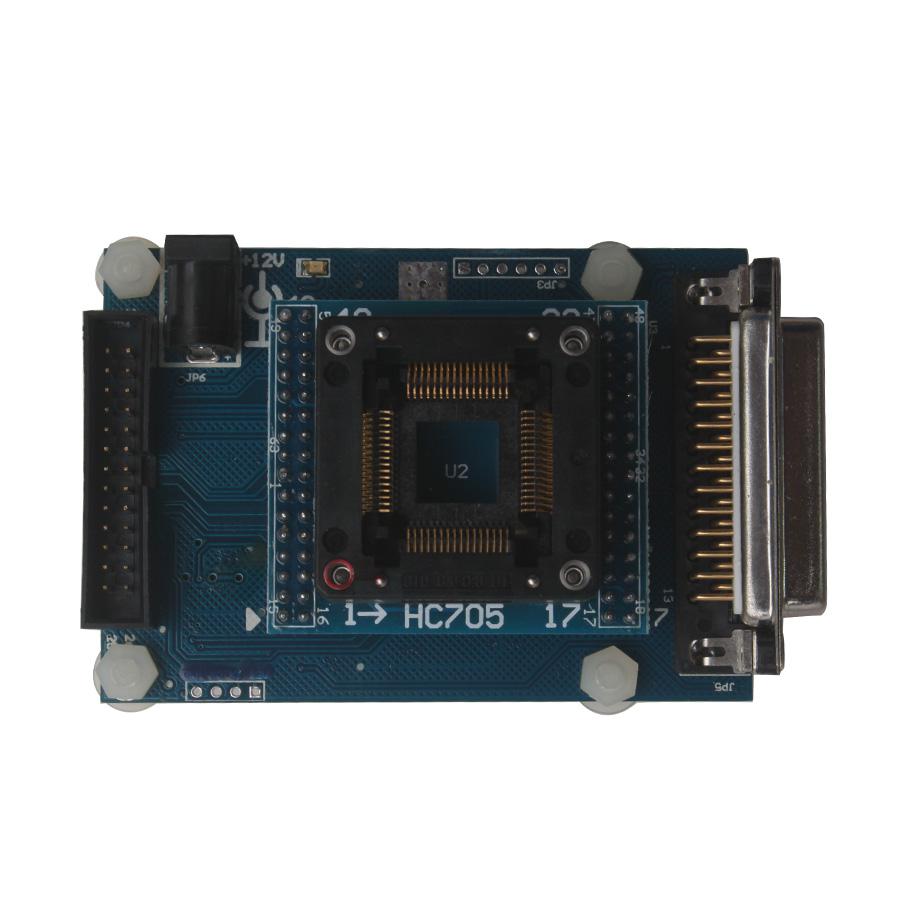

| Read and write EIS: HC705/HC908/HC912/9S12 | Read and write EIS: HC705/HC908/HC912/9S12 |
| No Benz original factory key calculator | With Benz original factory key calculator |
| Need to remove ESL/ESM/ECU to synchronize data | Support calculating key only need EIS data, no need to remove ESL/ESM/ECU |
| Doesn't support infrared write old model big key (Motorola CPU) | Support infrared write old model big key (Motorola CPU) |
| Support programming infrared key for Mercedes Benz 1998 to 2005 | Support programming infrared key for all Mercedes Benz 1998 to 2011 |
| Doesn't support EGS which is 722.9 type of gearbox computer | Support EGS which is 722.9 type of gearbox computer |
| Doesn't support programming key for W203/W211 with ECU flash 29F400 and 29F800 | Support programming key for W203/W211 with ECU flash 29F400 and 29F800 |
| Doesn't support Benz read and write "Key-less go" Key | Support Benz read and write "Key-less go" Key |
| Need 32G database to support ESL fast unlocks | Support ESL fast unlocks no need 32G database |
| Support SBC computer reset, doesn’t support through OBD read and write SBC EEPROM | Support SBC computer reset,support through OBD read and write SBC EEPROM |

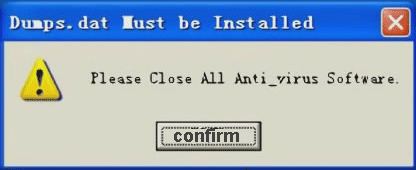

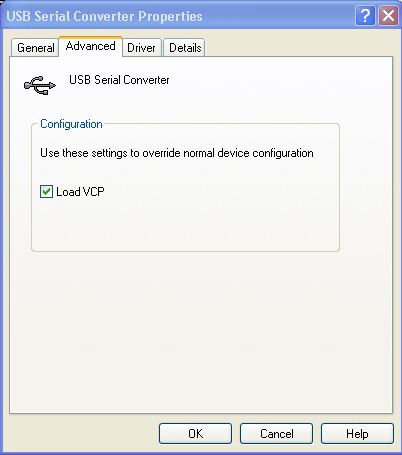

Some Important AK500PRO Operation Display

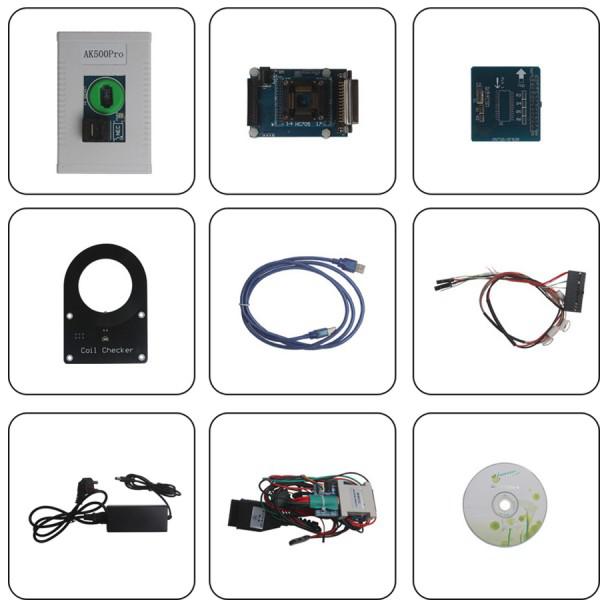

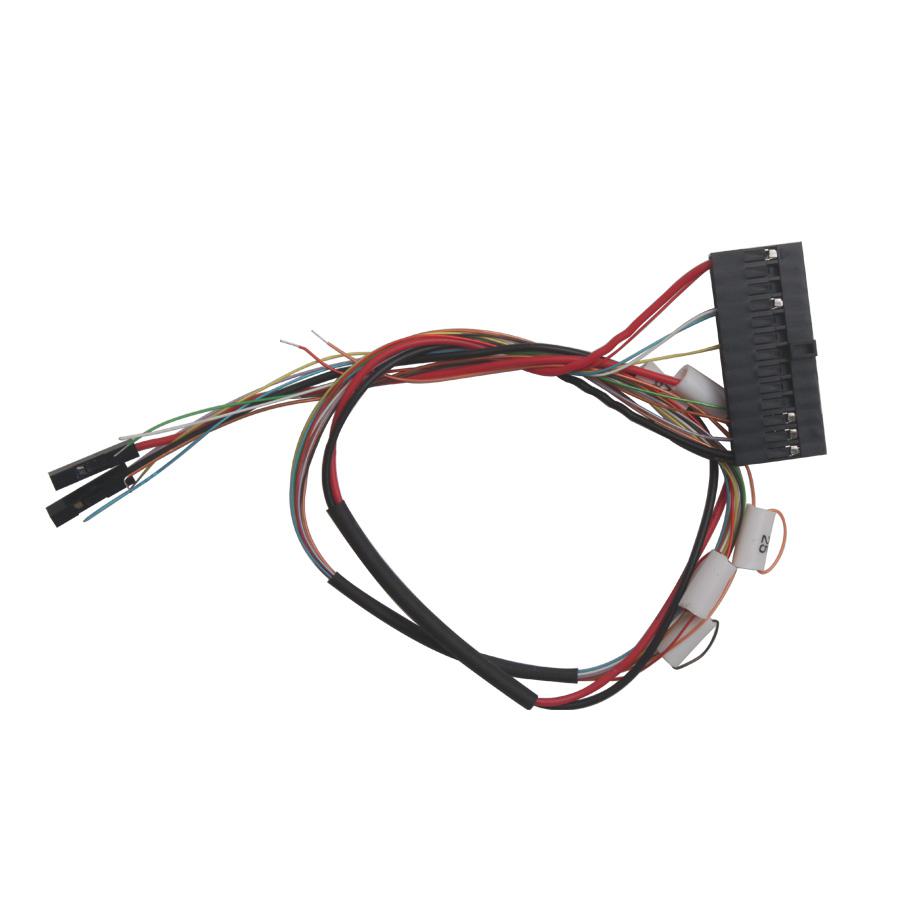

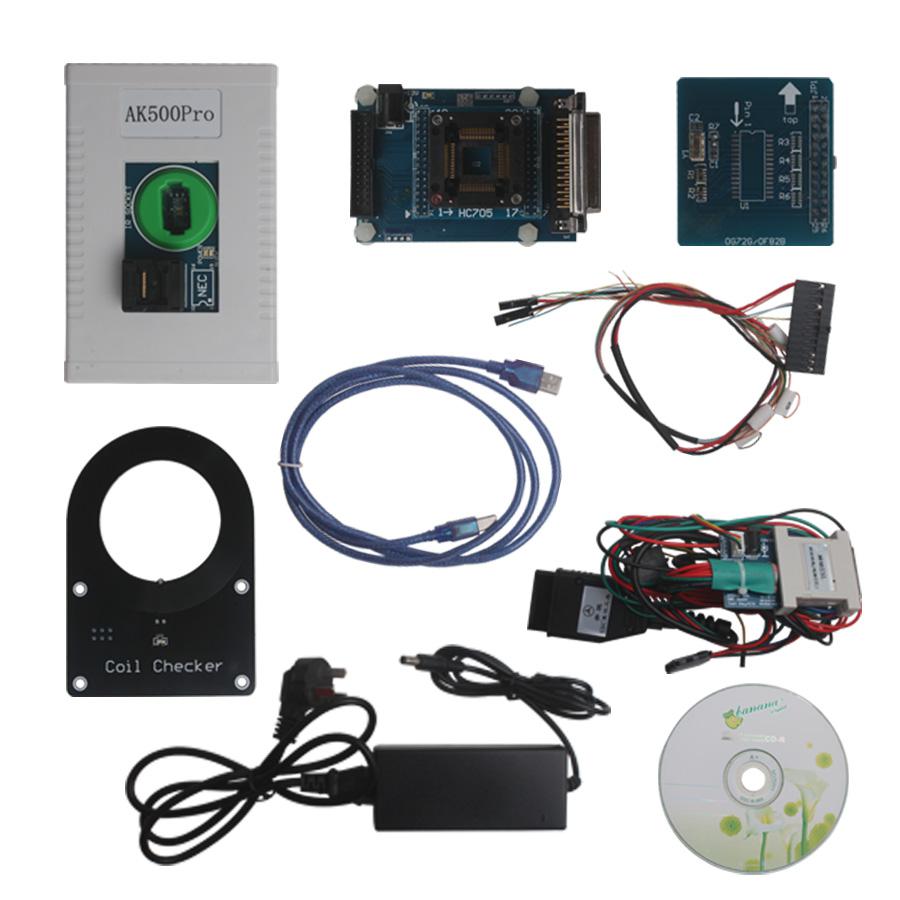

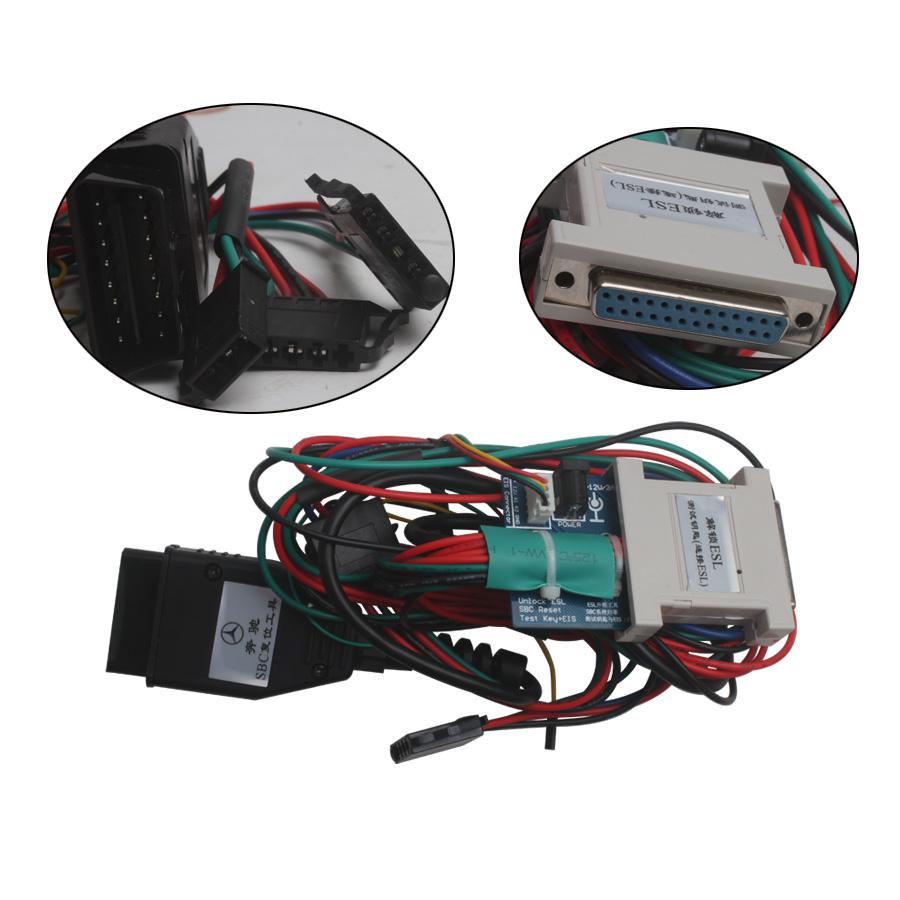

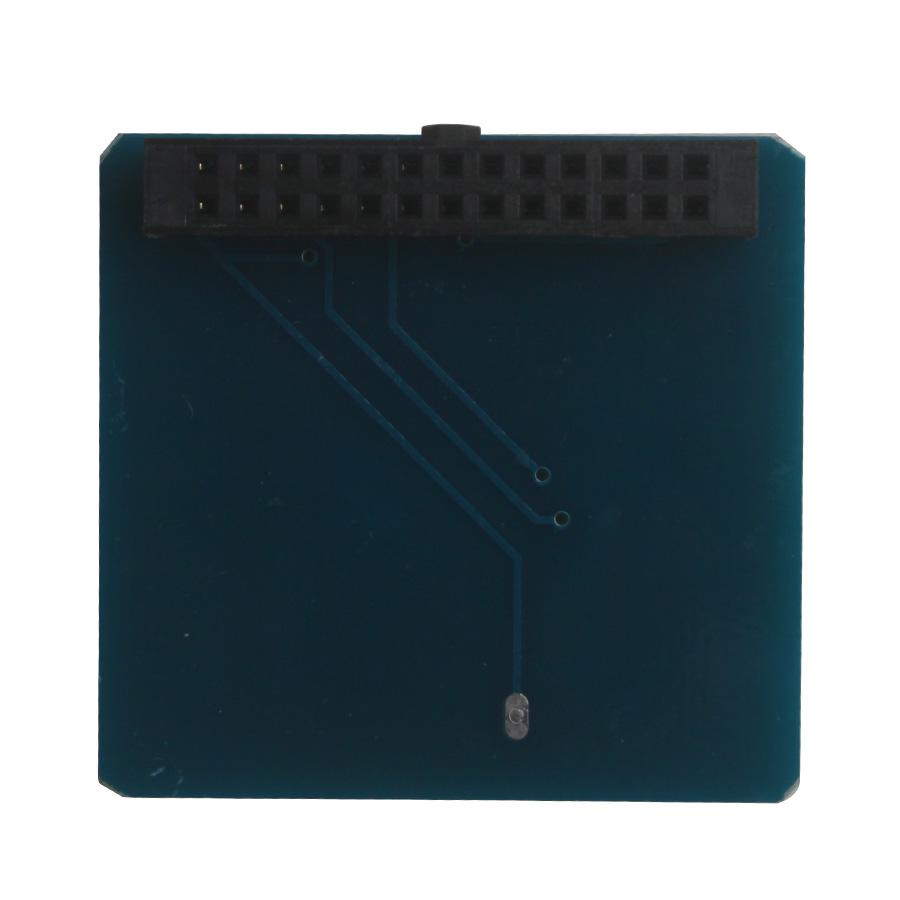

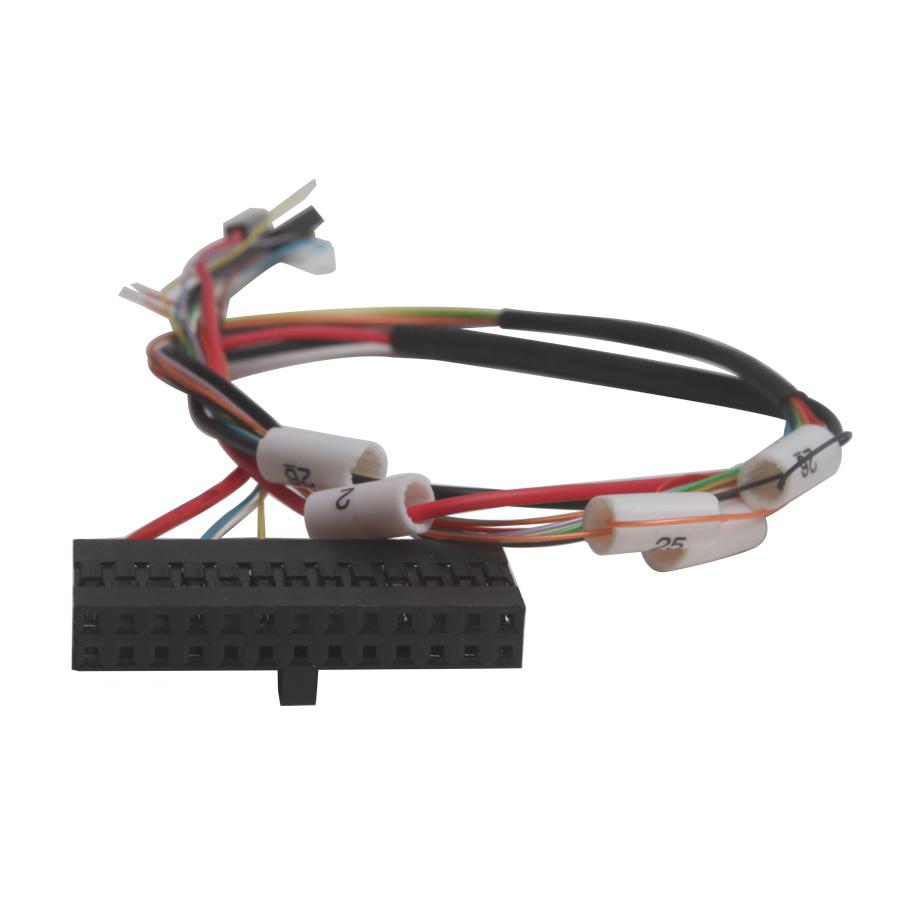

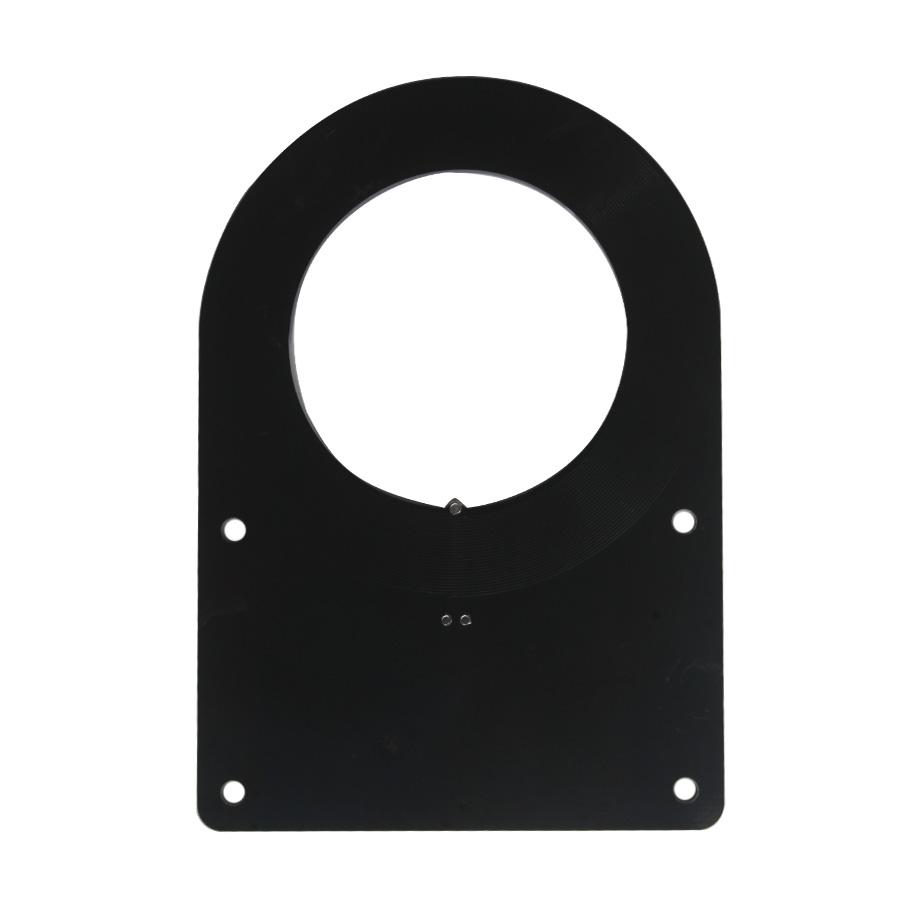

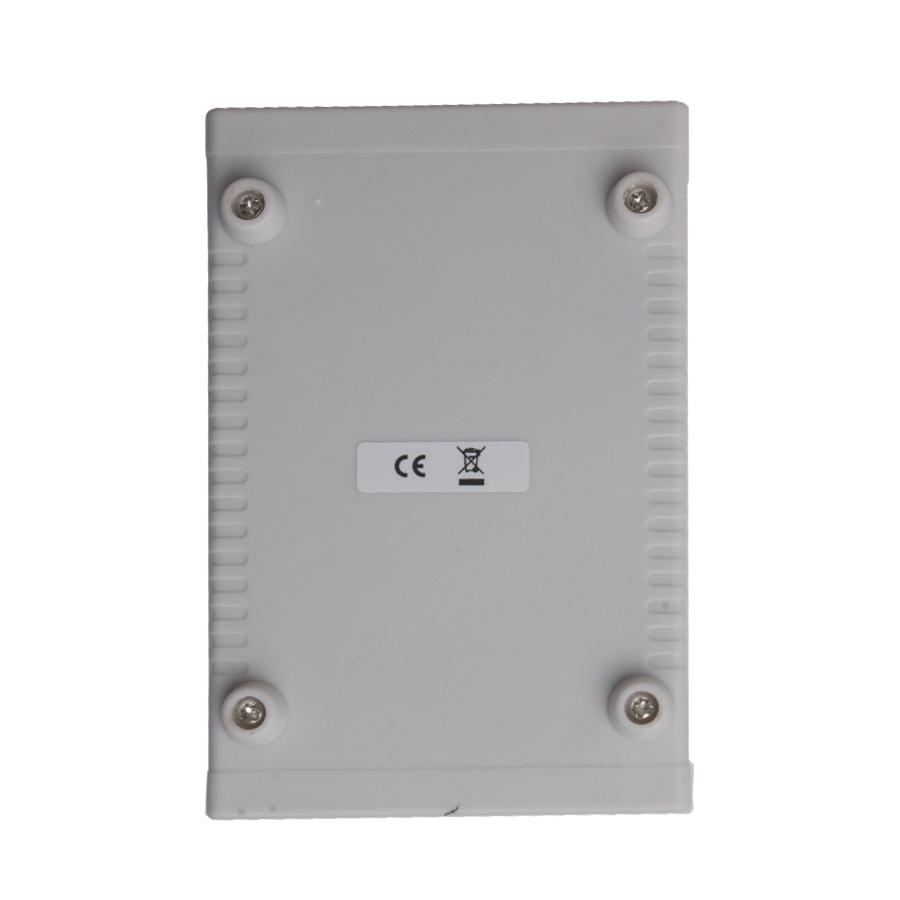

AK500Pro Package list
