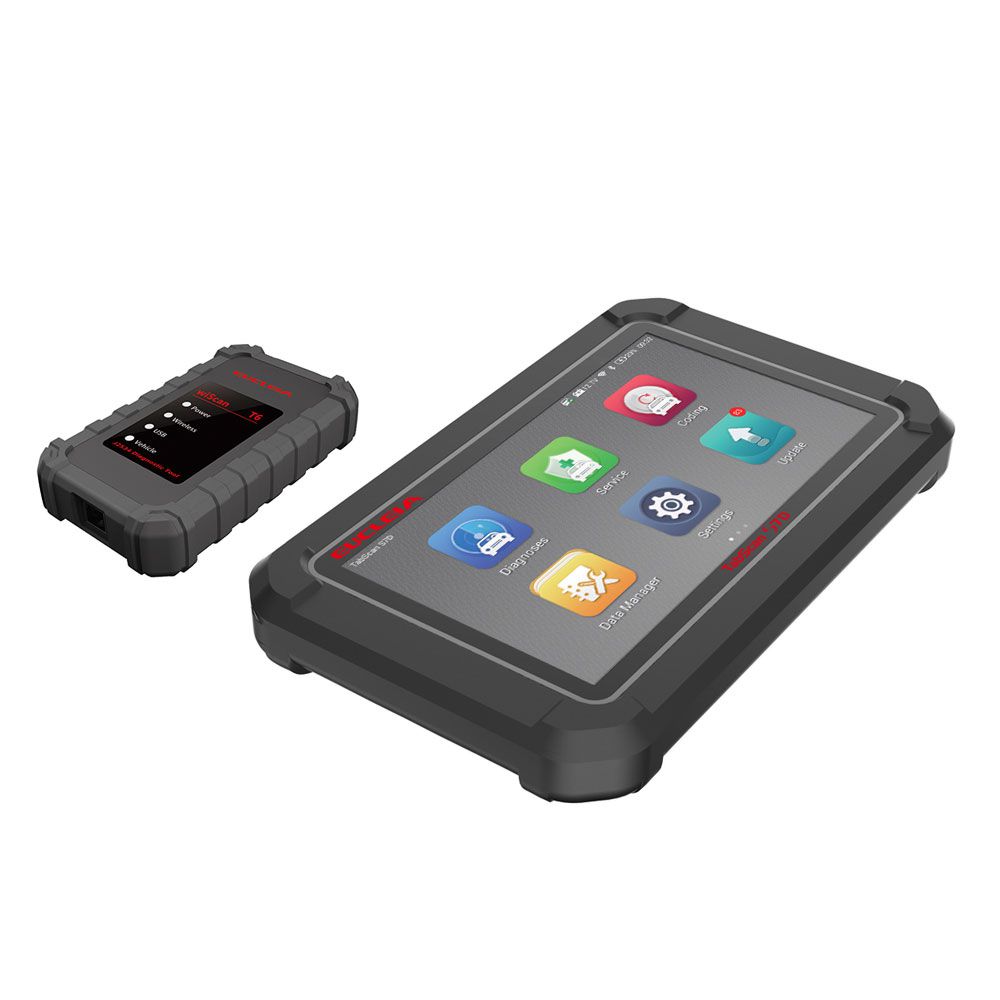

EUCLEIA TabScan S7D Auto Intelligent Dual-mode Diagnostic System

EUCLEIA TABScan S7D Auto Intelligent Dual-mode Diagnostic System

New Upgrade : More inside storages, New UI design, Support phone App.

TABScan S7D Features And Advantages:

• Innovative dual-mode diagnostic system ,Original manufacturer diagnosis and universal diagnosis,perfect solution for workshops.
• Intelligent searching patent, tenfold faster than normal diagnosis.
• Humanity button,real-time voltage and connection display, one-click reading VIN code.
•Provide DTC searching, remote assistance, workshop management and other convenient service.
• Feedbacks automatically send to server which makes service more easier.

TABScan S7D Major Functions:

Mode One: Universal Diagnosis
Diagnostic function: Read and clear DTC, live data, active test, ECU information, freeze frame etc.
Service functions: ABS Bleeding, EPB Reset, Service Reset, CKP Learning, Throttle Reset, SAS Reset, Battery Reset, CVT Reset, TPMS, etc.
Coding function: Brush hiding functions (VW, Audi, Skoda and constantly adding)
System functions: The system also includes the most recent auto-VIN technology that identifies vehicles with one touch and exclusive auto-scan function. One-click clear DTCs, one-click update, data record and replay, workshop manager, database query, repair video research, vehicle data manager, etc.
Mode Two: Original Manufacturer Diagnosis
Numerous brands, accurate diagnosis, coding ,on-line programming, date searching etc.

TABScan S7D Models Support:

Software	Models
Toyota, Lexus, Scion	TIS
Honda, Acura	HDS
Volvo	VIDA
VW, Audi, Seat, Skoda, Bentley, Lamborghini	ODIS
Jaguar, Land Rover	SDD
FORD	For IDS
Mazda	FORScan
GM	GDS2
Smart, Maybach, Benz, Sprinter	Xentry Passthru
BMW, Mini	ISTA/D/P

TABScan S7D Main Parameters:

Model	TABScan S7D
Processor	1.3 GHz quad-core
RAM	2GB
External Storage	Maxium 32GB
Screen Size	7-inch display screen
Upgrade Method	Wifi
Charging method	USB cable
Model	TABScan S7D
Processor	1.3 GHz quad-core
Operation System	Android 4.4.2+EUUI2.12
Battery capacity	7500mAh lithium-polymer
ROM	16GB
Interface	Micro USB2.0
Resolution	1024x600 pixels
Connectivity	Bluetooth
Diagnostic method	wiScan wireless
Diagnostic connectors	Gold Cup/Cherry/Changan 3 ,Nissan-14,KIA-20,Honda-3,Toyota-17,Mazda-17

Processor	ARM 32bit Cortex M3
Flash	512KB
RAM	128KB
Adaptable OS	Windows Xp、win7、win8、win10
Communication port	DB15，Double row joint
Connection	USB Type-B,USB 2.0, FS
Wireless	Bluetooth3.0/4.0
Connection Method	Main cable with car, USB with PC, Bluetooth with tablet
Standard	* Compatible with SAE-J2534-1 and SAE-J2534-2。 *On-line ECU diagnosis, support OEM software * Compatible with J2534
Protocol	SAE-J2534-1 and SAE-J2534-2 ISO-9141 K-Line ISO-14230 K-Line ISO-15765 K-Line ISO-11898 DWCAN SAE-J1850-VPW（GM Class2） SAE-J1850-PWM（FORD SCP） SAE-J2411 Single Wire CAN（GMLAN） SAE-J2610 SCI（Chrysler） SAE-J2740 GM ALDL SAE-J2809 (HONDA DIAG-H) VAG TP16 CAN VAG TP20 CAN（SAE J2819） VAG KW81（SAE J2818） BMW DS2 FORD UBP

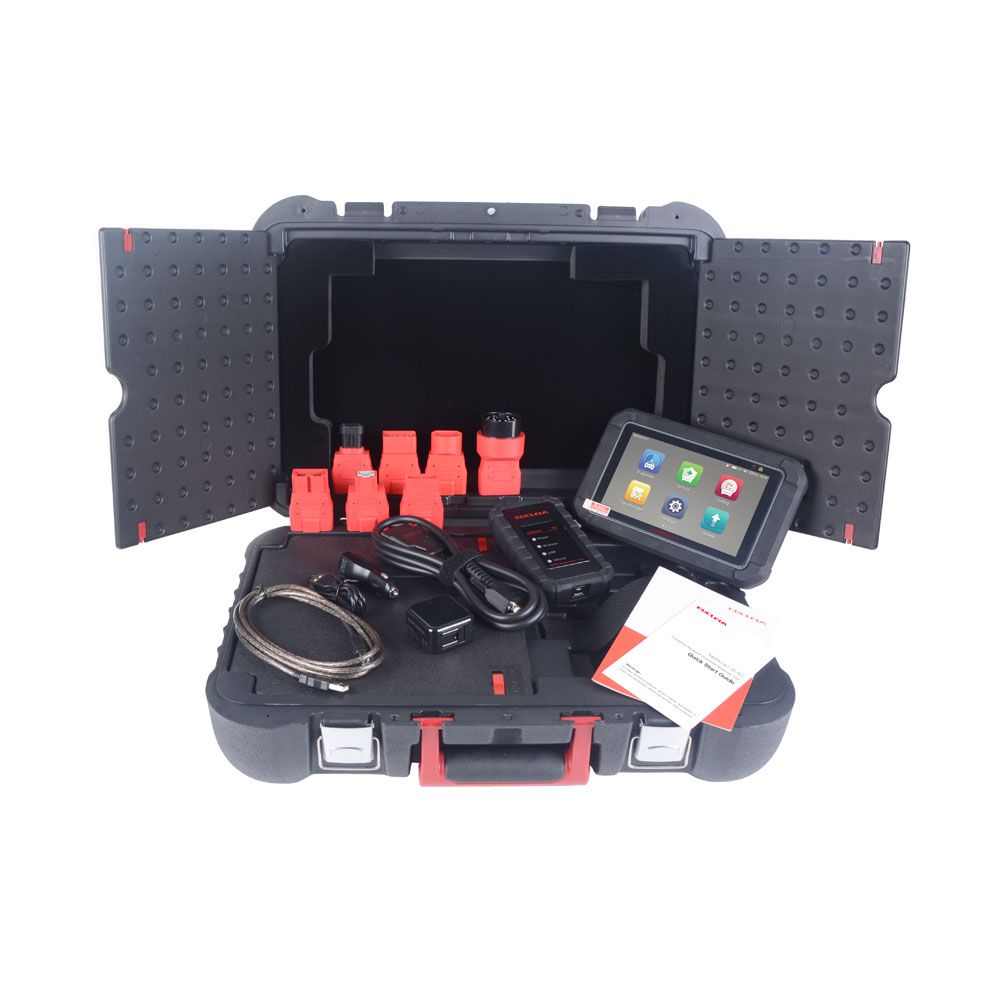

Package includes:

1pc x TabScan s8
1pc x wiScan T6
1pc x Main Cable
1pc x God Cup Chery changan Fiat3
1pc x Nissan14
1pc x KIA20
1pc x Honda3
1pc x Toyota17
1pc x BMW20
1pc x Mazda17
1pc x USB connector cable
1pc x Dual USB charger
1pc x AC/DC adapter
1pc x Warranty card
1pc x User manual
1pc x Fitting box
