Opcom 2014V Can OBD2 For Opel Firmware V1.59 PC Based Opel Diagnostic Tool CAN-BUS Diagnostic with PIC18F458 Chip Support Firmware Update

1. Software Version: 2014V
    Hardware Version: 1.59
2. OP-COM - PC Based Opel Diagnostic Tool
3. Language: English

4. With PIC18F458 Chip Support Firmware Update

1. It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
4. Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
   PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
5. Fault codes will be shown with all available information

1. Full status information (Present, Not present, Intermittent)
2. You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
3. The program shows you measuring block information on many control module, you can choose anything from the list on your own.
4. The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

• PIN6-PIN14
• PIN3-PIN11
• PIN1
• HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
• MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
• SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

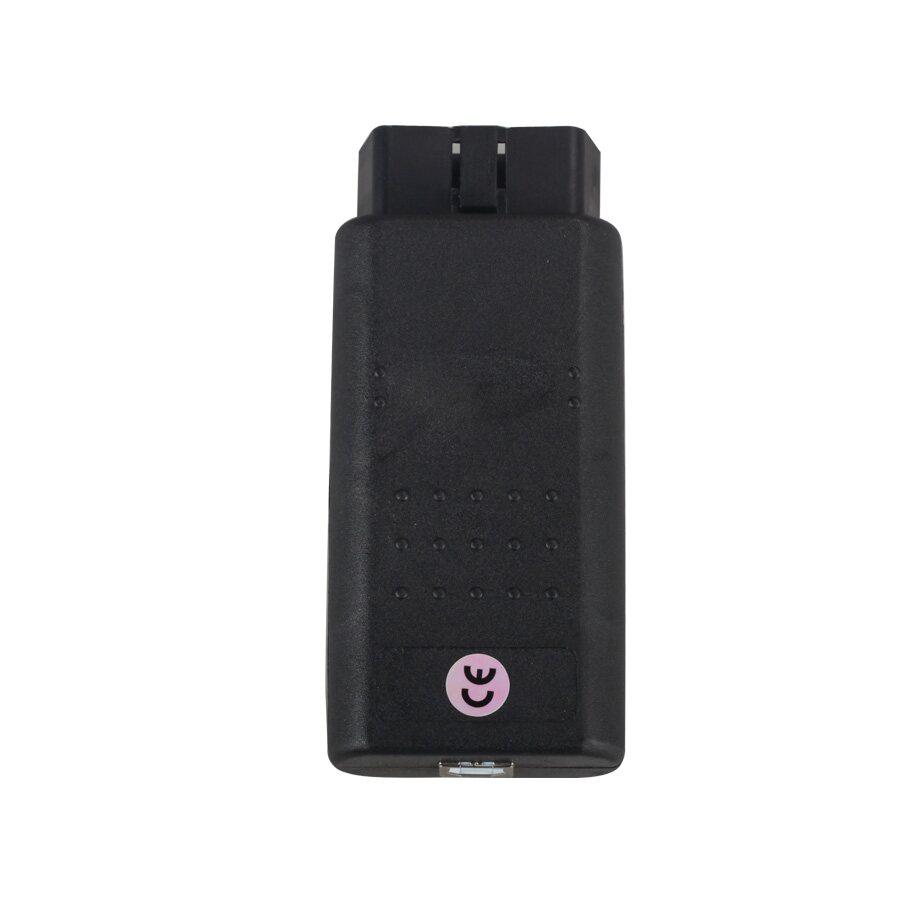

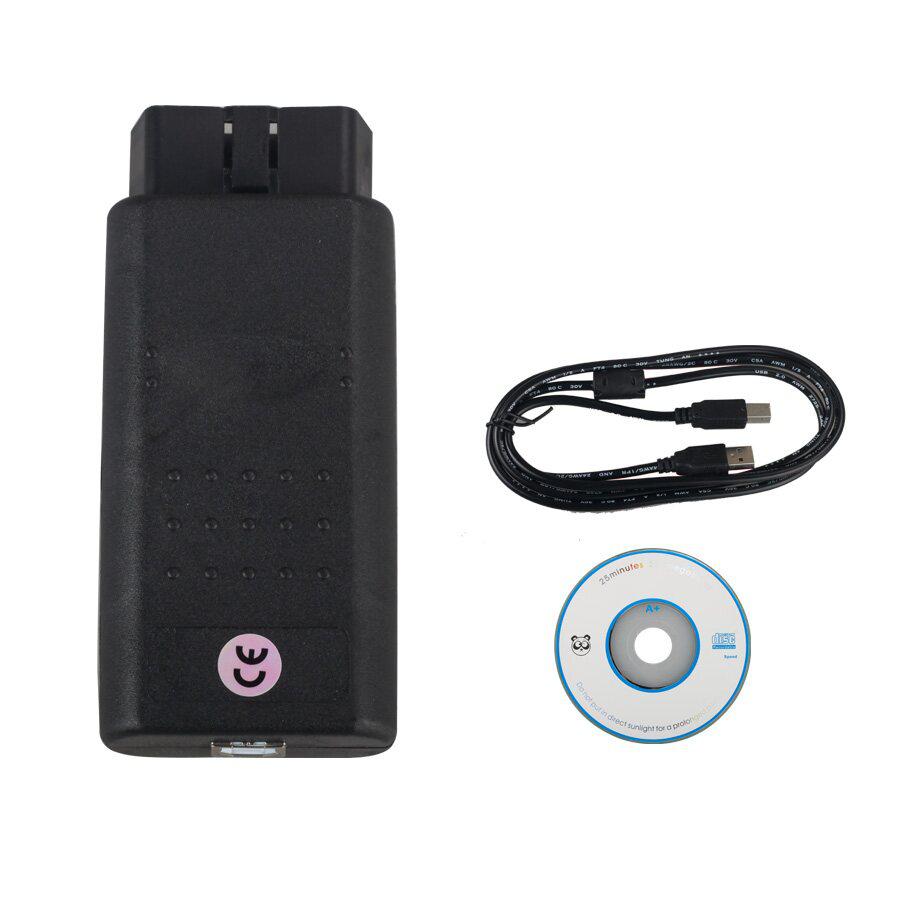

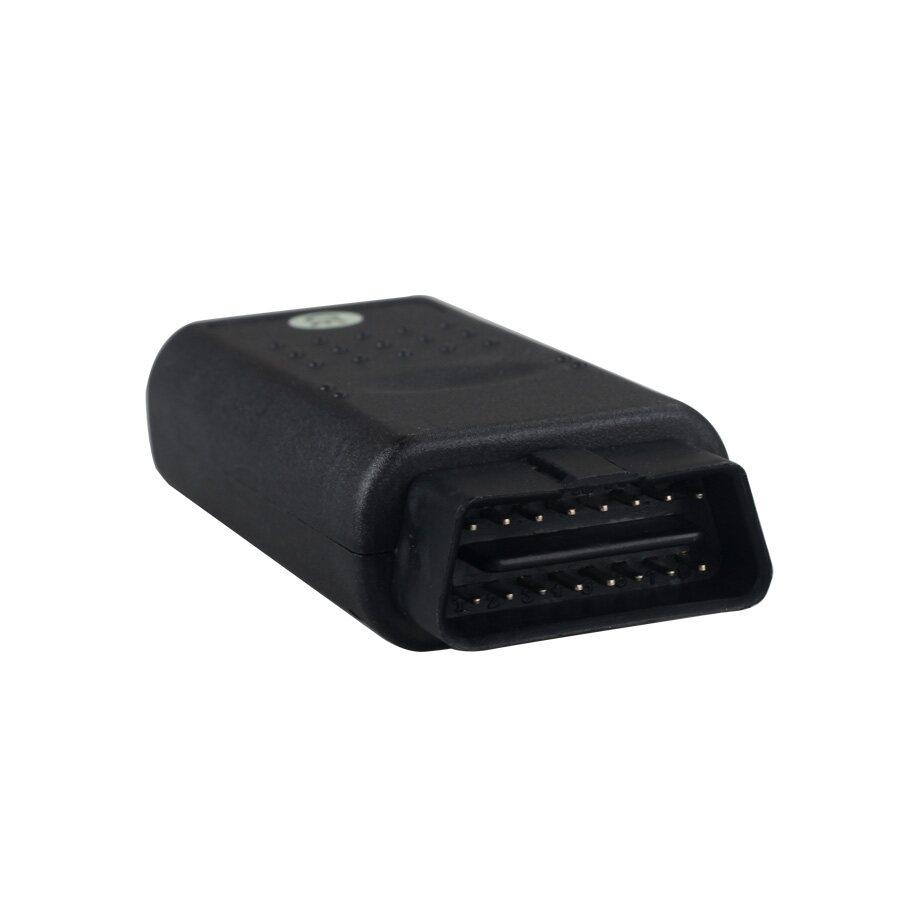

1. OP COM Interface

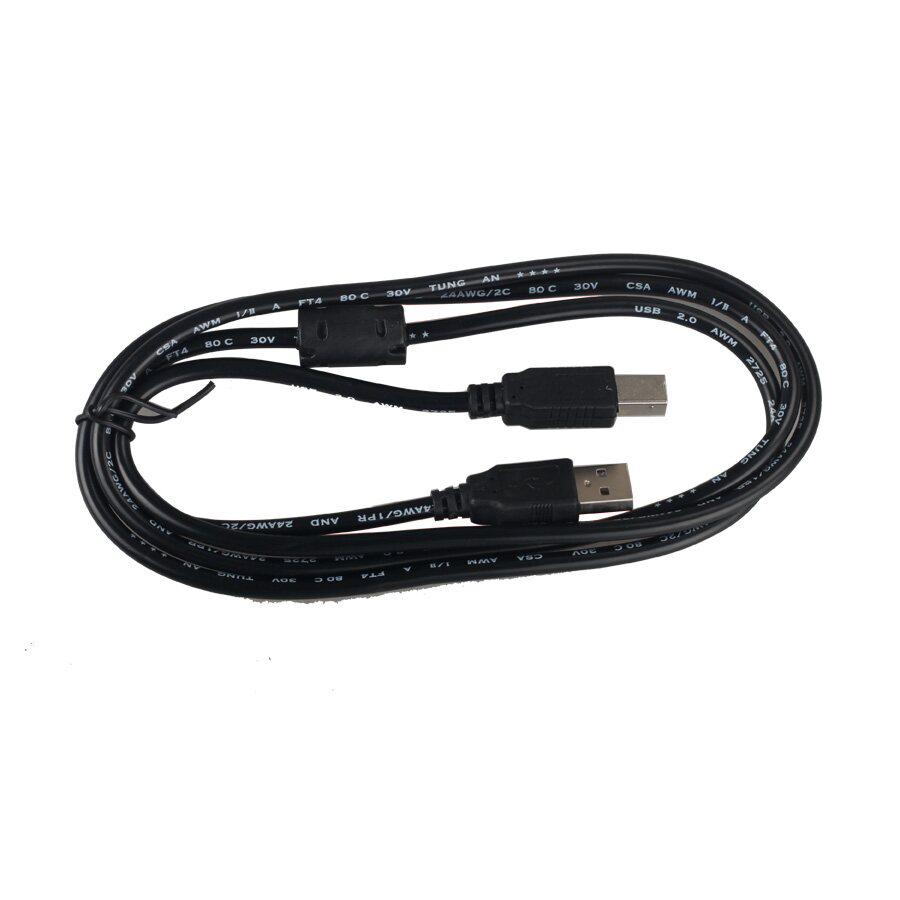

2. USB Cable
3. Software and Drivers CD

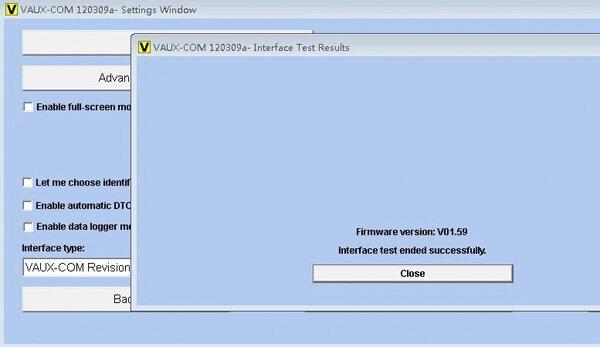

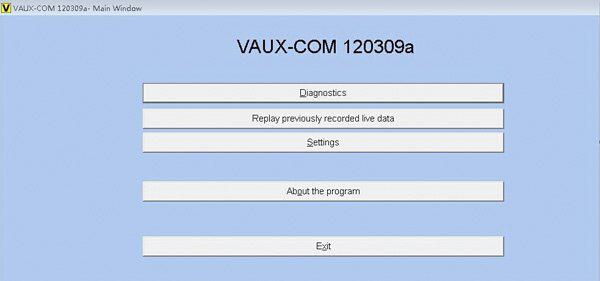

OP-Com 2014V Software:
