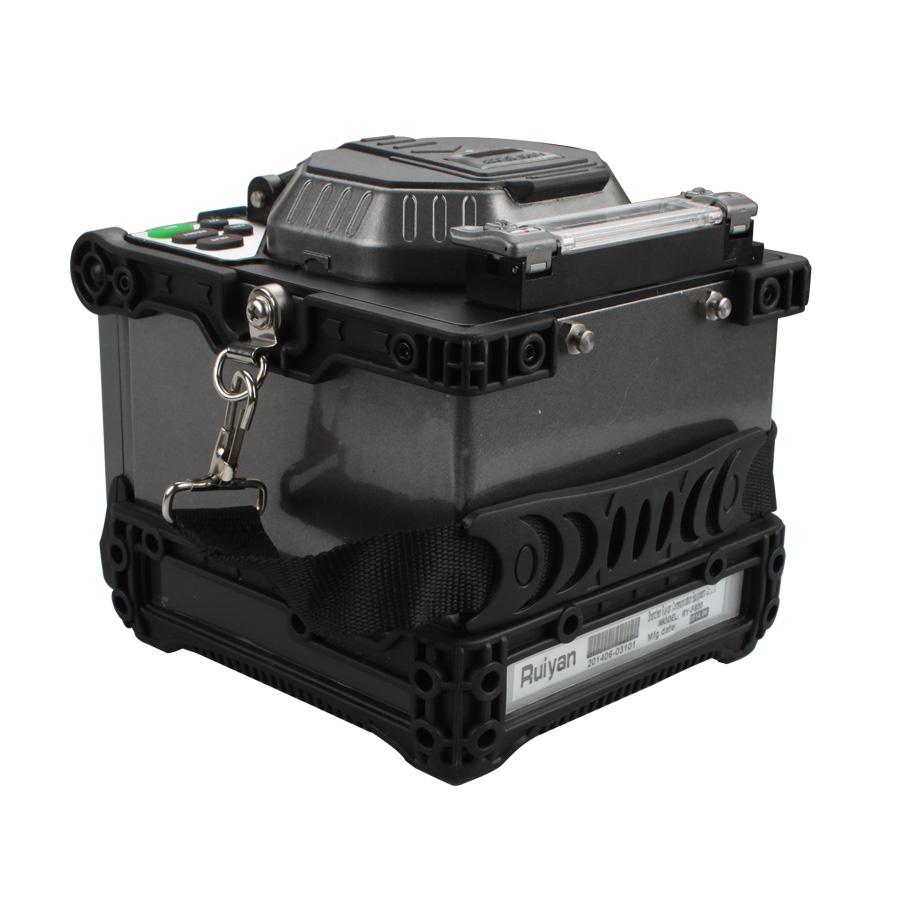

Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD

Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD

Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Item No. COBD24939
5 stars, 9 reviews.
In Stock
Price:
US$2,399.00/ piece
Discount Price:
US$2,258.00/ piece 6%
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details ?
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question
Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
  • Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
  • Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
  • Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
  • Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
  • Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
  • Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
  • Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
  • Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
  • Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
  • Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
  • Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
  • Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD

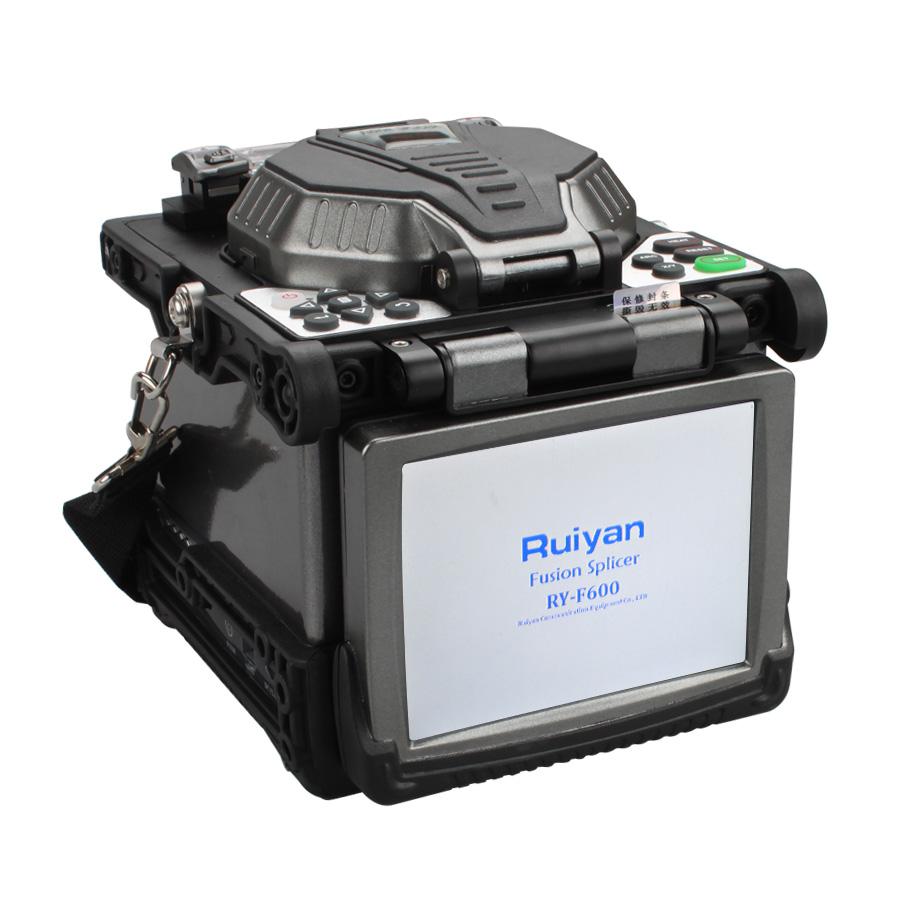

Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD

Features
  • Digital fusion splicer with automatic focus function
  • Fiber core can be display clearly
  • Single X or Y view and X & Y view simultaneously
  • Auto detect cleaved endface fault
  • Display fiber cleaved and offset angle
  • Display core and clad offset
  • 5.6 inch TFT color LCD monitor with clear digital image display
  • USB & VGA interface
  • Software upgrade via USB interface.

Specefications
Model RY-F600
Applicable fibers SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fiber cleaved length 10 ~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm)
Fiber diameter Cladding diameter:80 ~150µm , Coating diameter:100 ~1000µm
Auto focusing Available
Fiber aligning method Core aligning, clad aligning, manual aligning
Average splice loss 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS)
Splicing time Typical 9 sec,with standard SM fiber
Heating time Typical 36 sec
Applicable sleeves 60mm, 40mm and a series of micro sleeves
Tension test 2N(option)
Electrode life 5000
Battery capacity Typical 400 cycles (splice and heat)
Monitor 5.1 inch TFT color monitor
Terminal USB 1.1 and VGA , software upgrade via USB interface
Operating condition 0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s
Splicing mode Auto ,normal
Fiber cleaved angle threshold set 0.1 ~ 10.0 oC , 0.1oCstep
Power supply Li-battery 11.8V , AC100-240V DC12.6V/5.0A
Dimension L169*W152*H155mm
weight 2.4kg 2.9kg(battery)

Package Include:

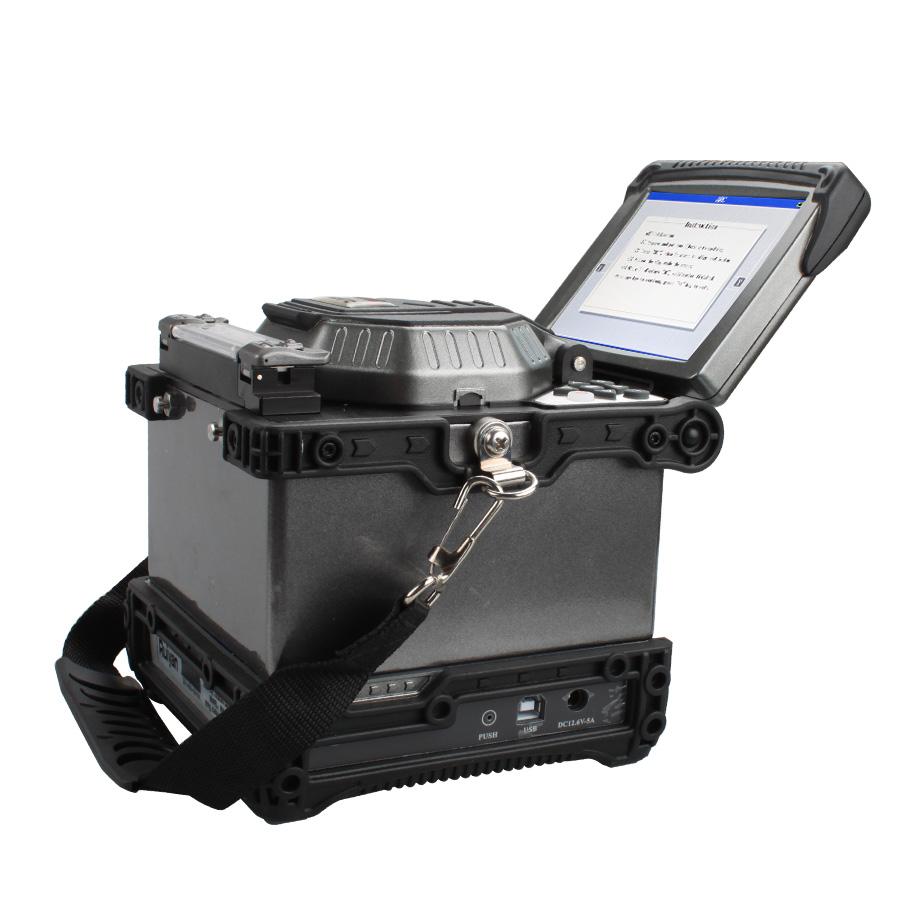

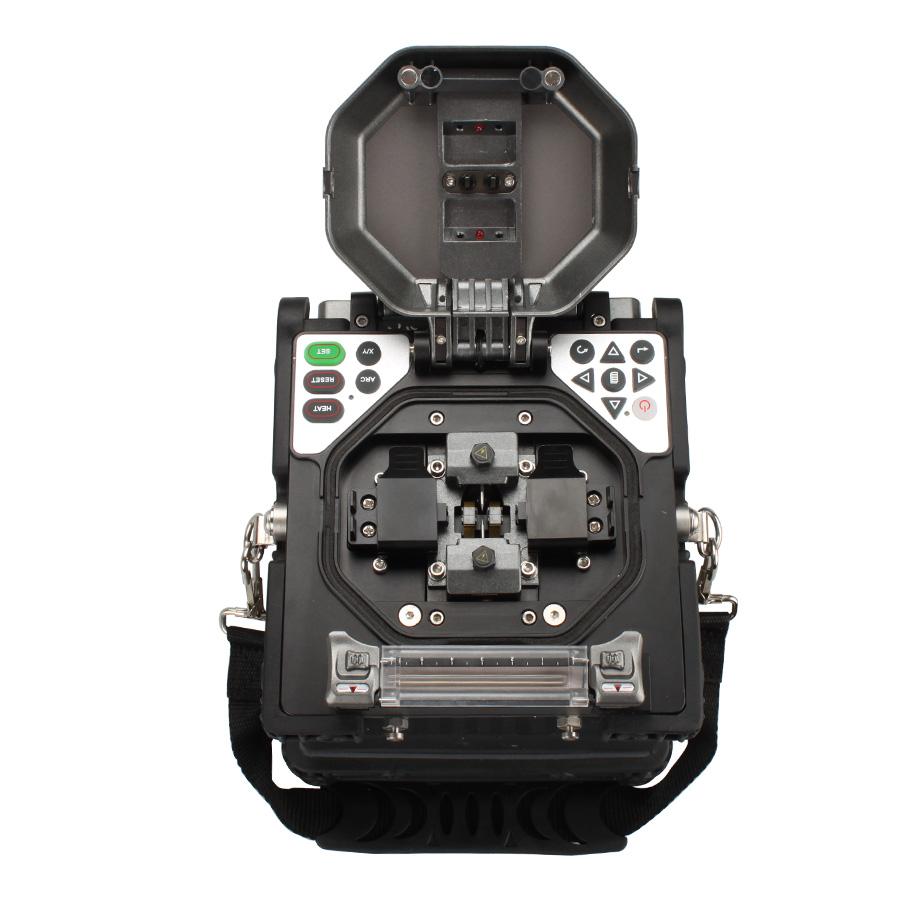

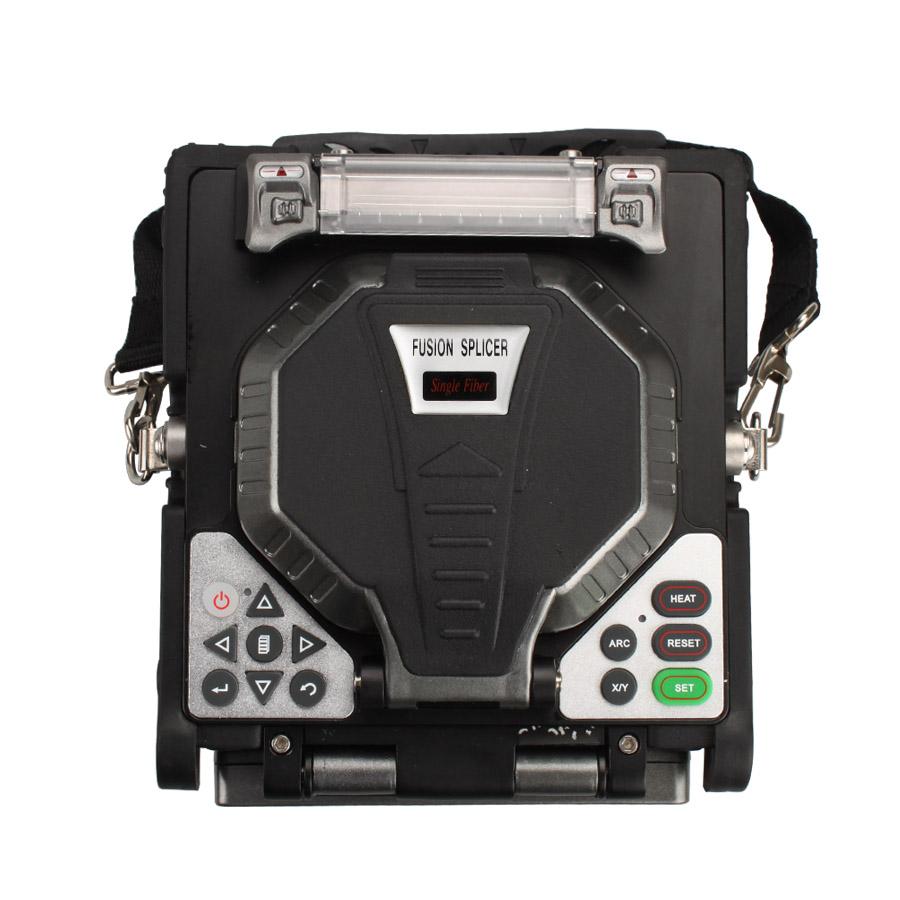

  • 1 x Fusion Splicer Machine

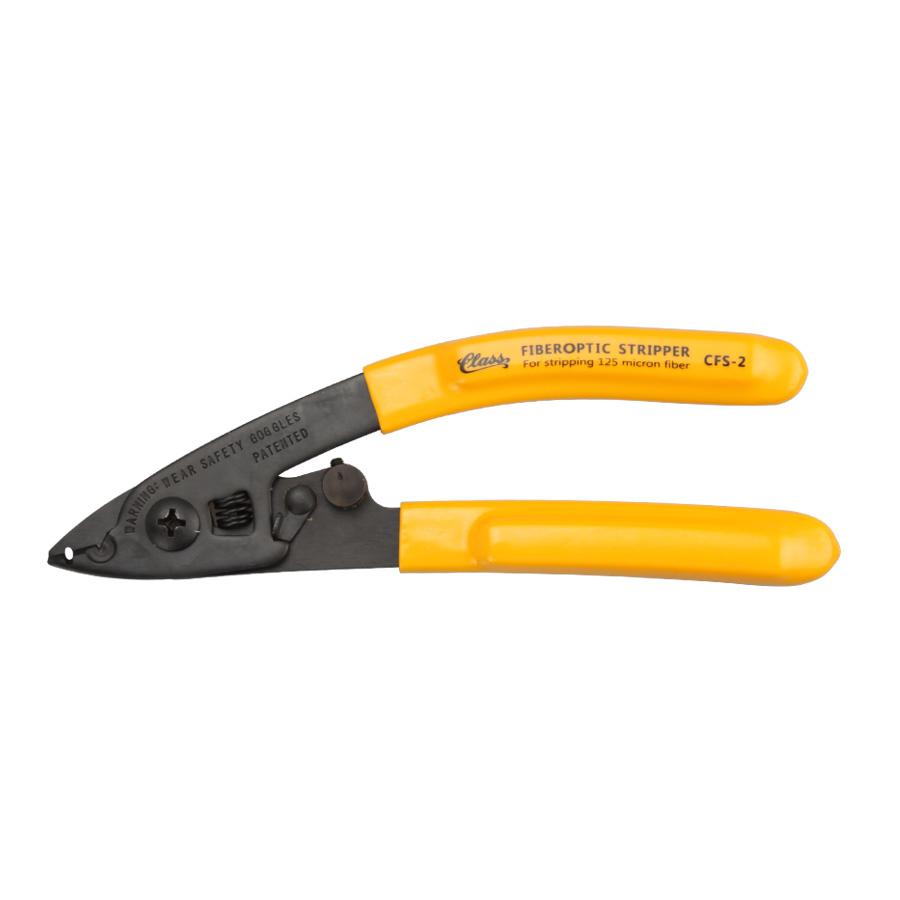

  • 1 x Fiber Stripper

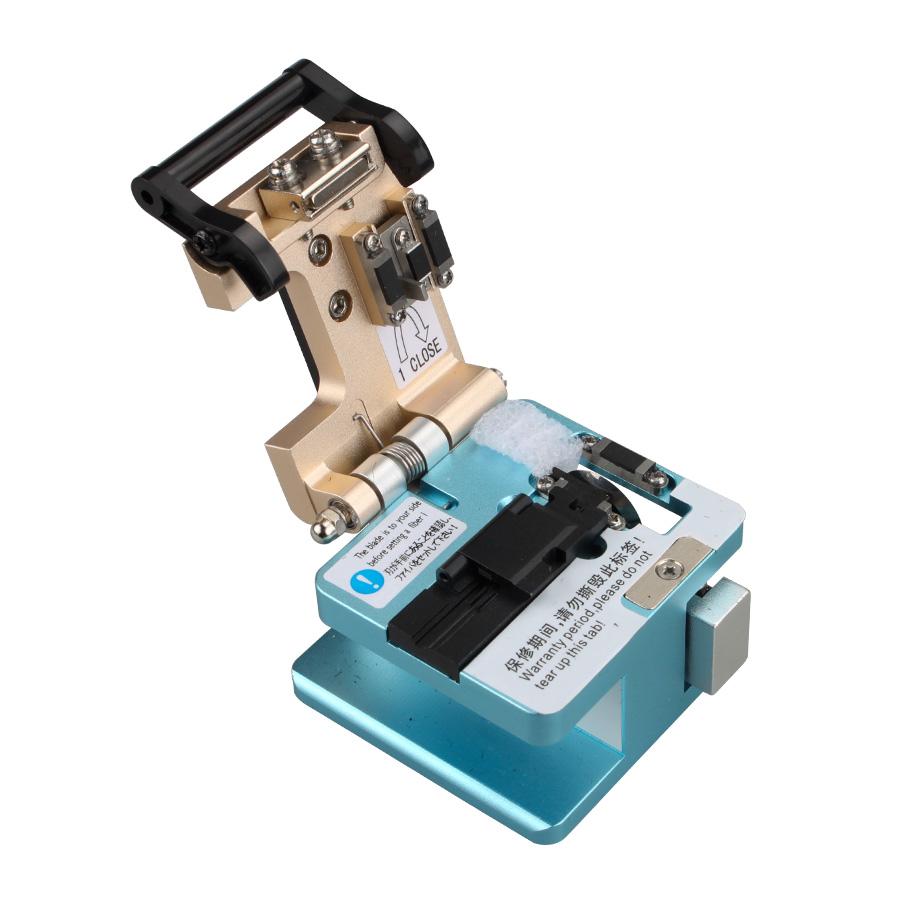

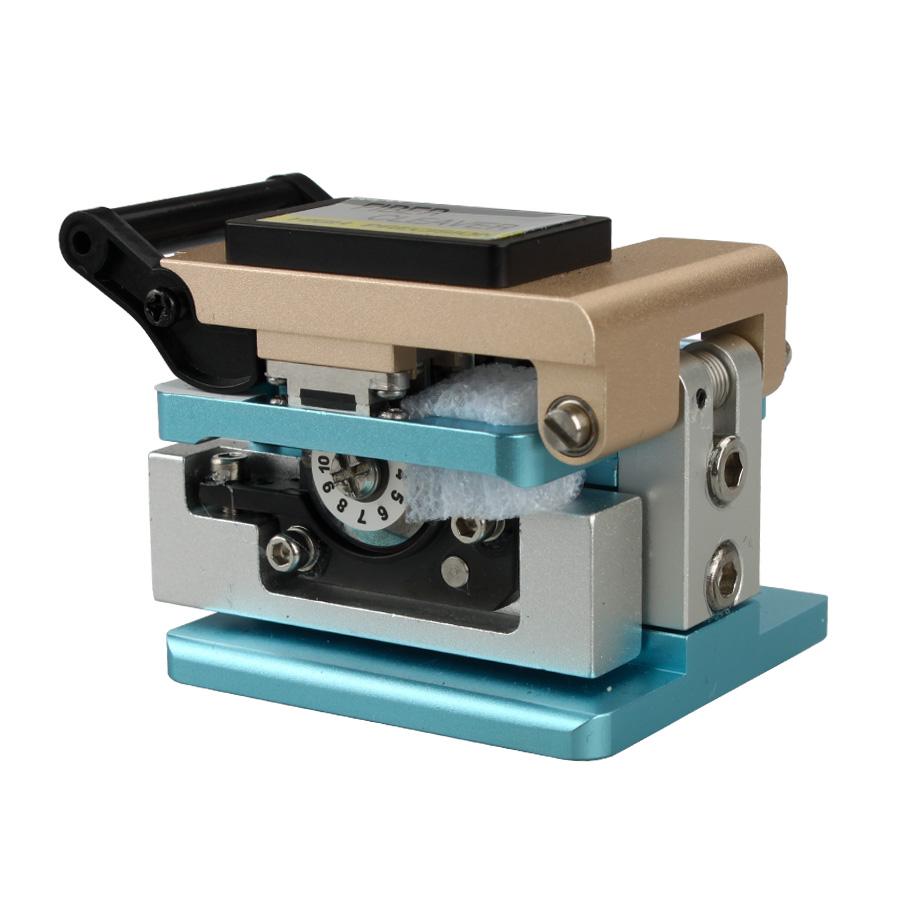

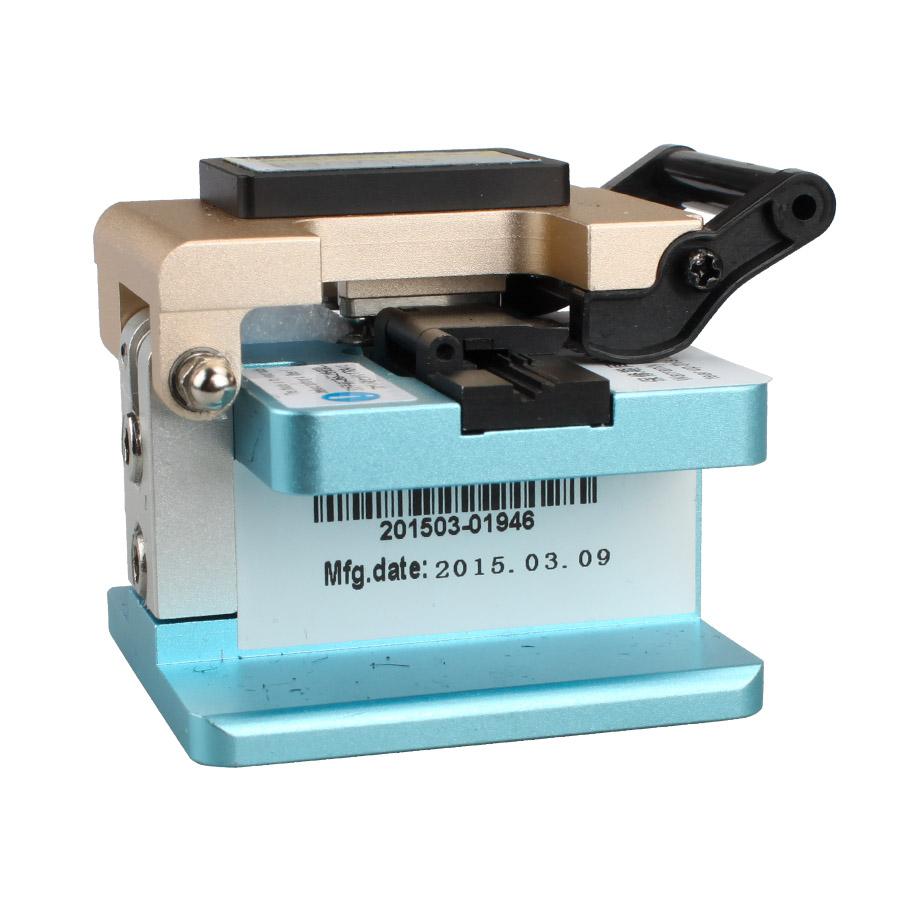

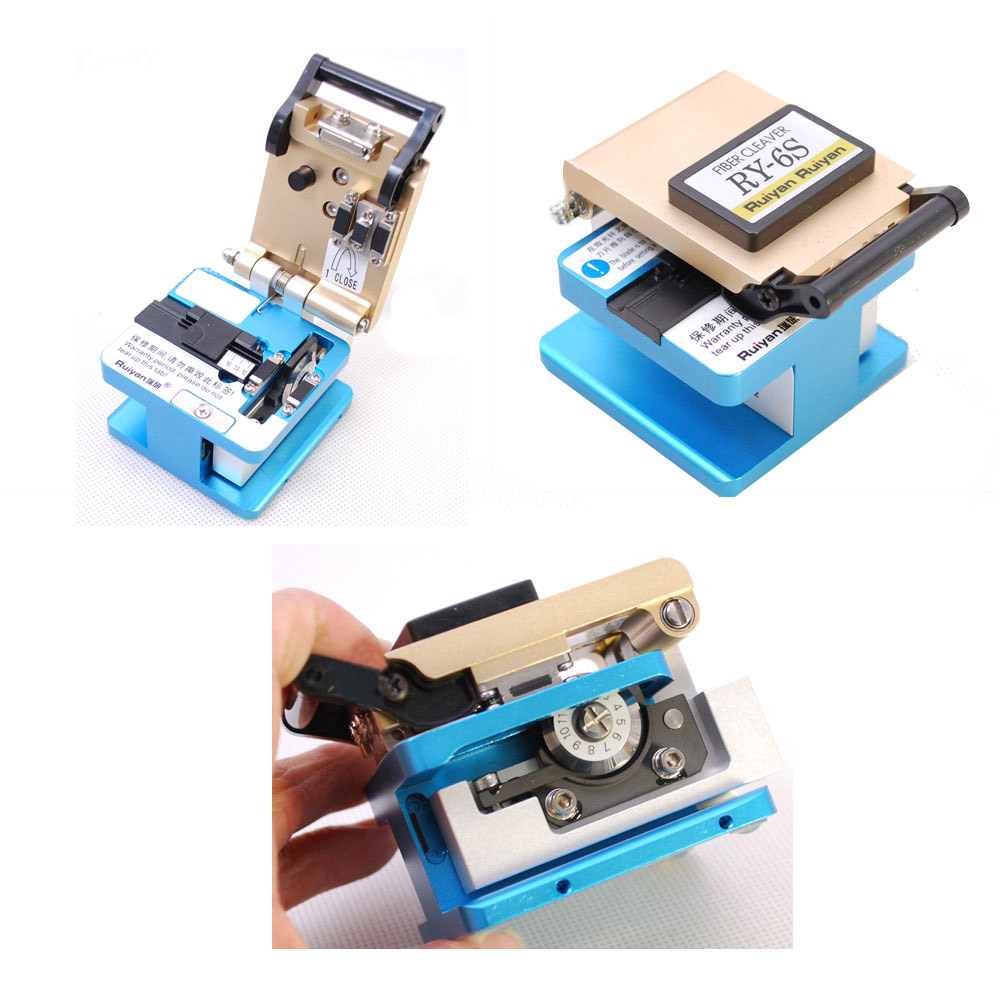

  • 1 x Optical Fiber Cleaver
  • 1 x Alcohol box
  • 1 x Tweezers

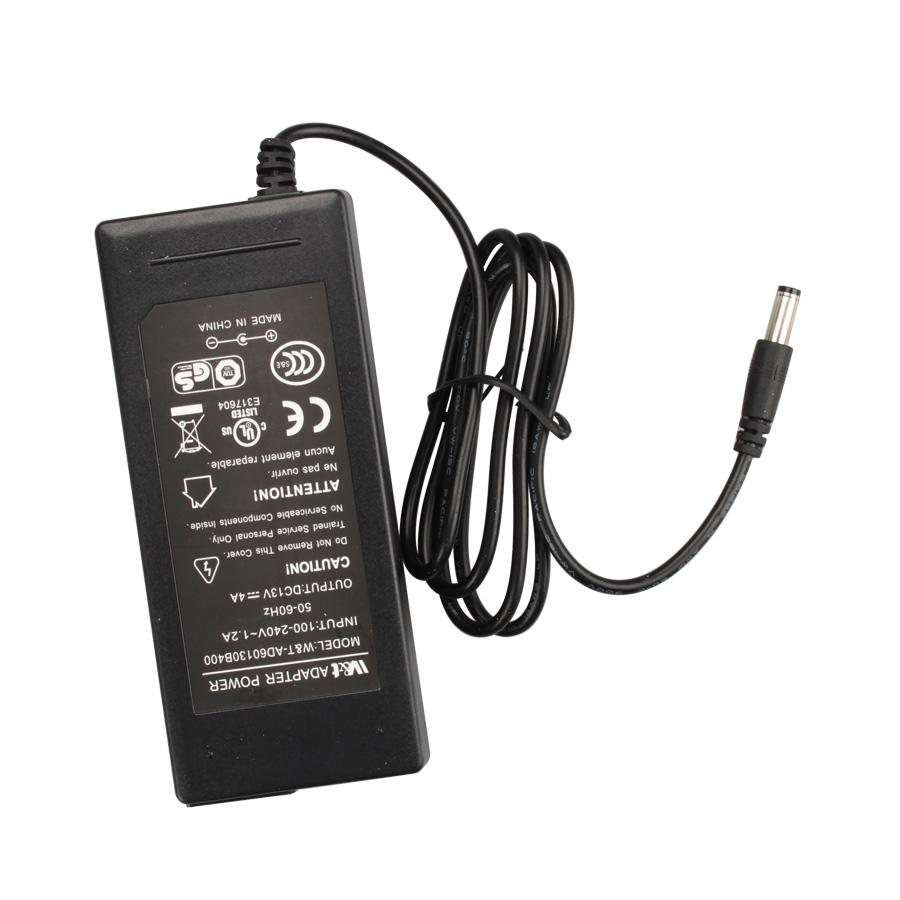

  • 1 x Charger
  • 1 x Spare Electrodes
  • 1 x Cotton swab
  • 1 x Hairbrush
  • 1 x Bellows
  • 1 x Cooling Tray
  • 1 x Product qualification certificate
  • 1 x Warranty card
  • 1 x User's manual

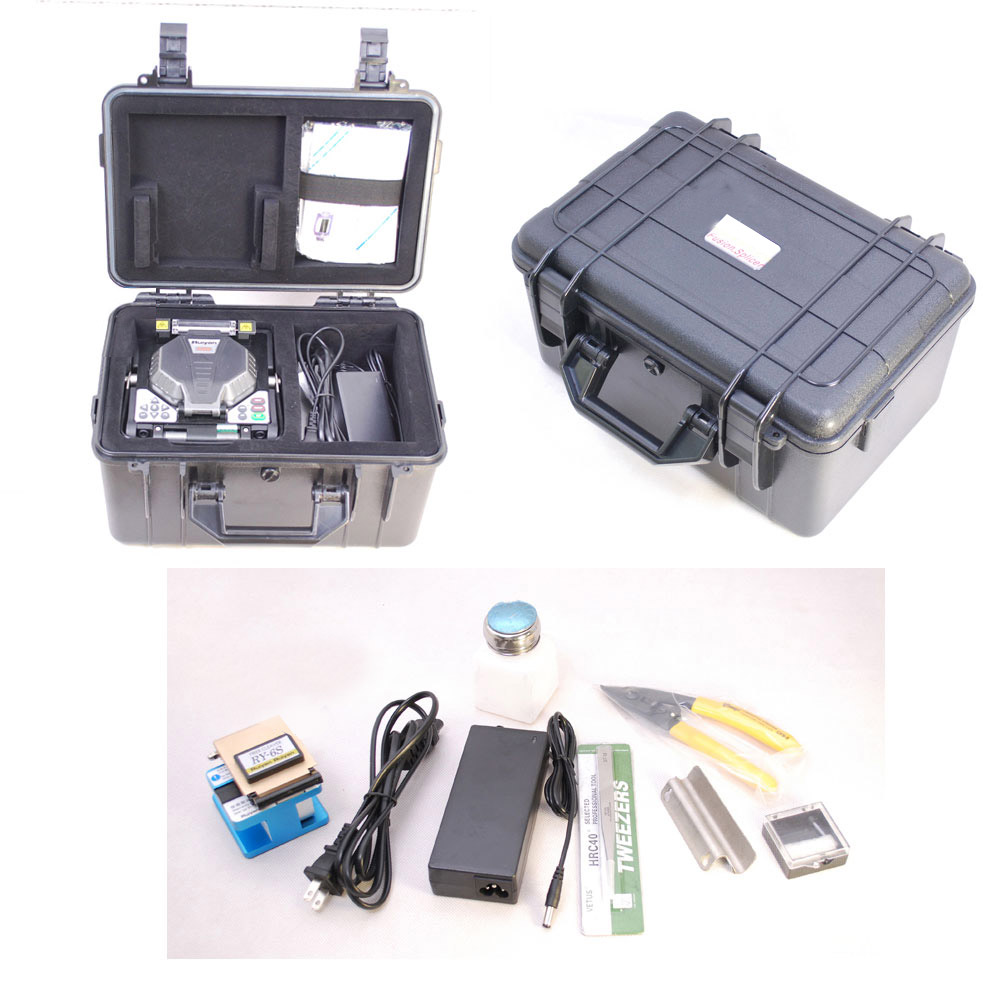

Original RY-F600 Fusion Splicer package display-1
Original RY-600 Fusion Splicer package display
