Original Autel MaxiIM IM508 All System Diagnostics and Powerful Combination of Key Programming
Original Autel MaxiIM IM508 All System Diagnostics and Powerful Combination of Key Programming

Original Autel MaxiIM IM508 All System Diagnostics and Powerful Combination of Key Programming

MaxiIM IM508 is a fast, easy-to-use, and ultraportable immobilizer and key programming device,is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.
Item No. COBD26464
5 stars, 9 reviews.
In Stock
Price:
US$2,245.00/ piece
Discount Price:
US$829.00/ piece 63%
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details ?
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question
Original Autel MaxiIM IM508 All System Diagnostics and Powerful Combination of Key Programming
  • Original Autel MaxiIM IM508 All System Diagnostics and Powerful Combination of Key Programming
  • Original Autel MaxiIM IM508 All System Diagnostics and Powerful Combination of Key Programming

Original Autel MaxiIM IM508 All System Diagnostics and Key Programming Tool

MaxiIM IM508 is a fast, easy-to-use, and ultraportable IMMObilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface. Euipped with the XP200 Key Programmer, IM508 is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.

Features of MaxiIM IM508

  • Powerful Cortex-A9 processor
  • 7” 1024x600 LCD capacitive touchscreen
  • Internal reliable 32GB Memory
  • Android Operating System for fast boot-up and multitasking
  • Powerful combination of key programming/all system diagnostics/advanced maintenance services
  • Smart Mode for guided and automated key learning
  • Expert Mode for advanced key learning
  • Read PIN/CS (all key lost) , key generation, key learning, remote learning
  • IMMO ECU reset/adaptation, refresh/coding
  • Transpronder read/write, EEPROM/MCU read/write
  • Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
  • Advanced maintenance services including EPB, DPF, SAS, Oil Reset, BMS and TPMS sensor ID relearn

Specifactions of MaxiIM IM508

Operating System AndroidTM 4.4.4
Processor Cortex-A9 processor (1.6 GHz)
Memory 32GB
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity Mini USB 2.0
USB 2.0
Wi-Fi
Micro SD card (supports up to 32GB)
Sensors Ambient light sensor for brightness auto changing
Audio Input / Output Input: N/A
Output: buzzer
Power and Battery 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
Tested Battery Life Around 4.5 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Operating Humidity 5% - 95% non-condensing
Net Weight 788 g (2.42 lb.)
Supported Automotive Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

XP200 KEY & CHIP PROGRAMMER


  • Key Read / Write
  • EEPROM / MCU Read / Write

OE-LEVEL DIAGNOSTICS FOR 80+ VEHICLE MAKES

  • All Systems Diagnostics
  • AutoVIN / AutoScan
  • Read / Erase Codes
  • View, Record, Playback Live Data
  • View Freeze Frame Data
  • Shop and Data Manager Applications

ADVANCED SERVICE FUNCTIONS

  • EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Relearn
  • 7-inch LCD Touchscreen - 32GB Memory - Android Kit Kat - Wi-Fi - Multilingual
  • Codes & Menus - 5000mAh Li-polymer Battery

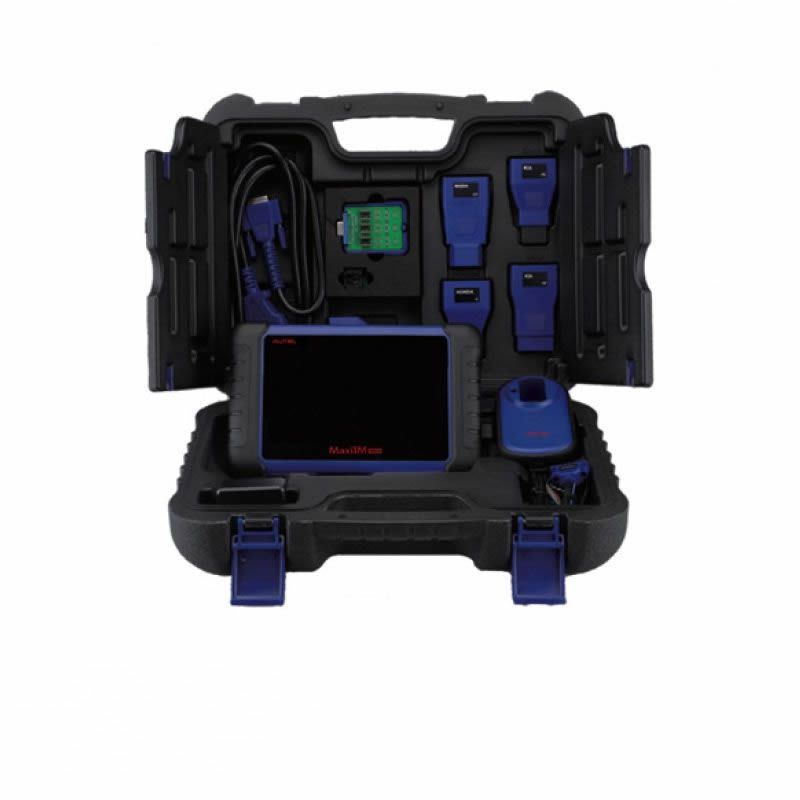

Package List:

  • IM508 Tablet
  • XP200 Key Programmer
  • Cables & Cords
  • USB Adapter
  • Carry Case

MaxiIM IM508 User Guide

MaxiIM-IM508_Quick-Guide_V1.pdf
