2023 Launch X431 IMMO Plus Key Programmer 3-in-1 IMMO Clone Diagnostics Functions Global Version

launch x431 IMMO PLUS Key Programmer is a new generation of 8-inch automobile special IMMO matching tool with high configuration and super performance. The host is developed based on the Android 10.0 open system, adopts a 2.0Ghz 4-core high-efficiency processor, 4GBRAM+64GBROM large storage, and is equipped with a high-endurance battery, which make the diagnosis faster, more stable and more durable.

X-431 IMMO PLUS integrates powerful IMMO matching, IMMO programming, full-model system-wide diagnosis with plus functions and special functions. It is the best choice for intelligent maintenance of the IMMO matching tool in repair shops.

Highlight:

1. Global version No IP limited
2. 3-in-1: IMMO+CLONE+Diagnosis
3. Two Years Free Update
4. Comes with X-PROG3 to do Key Programming
5. engine Module and Transmission Module Cloning
6. Anti-theft matching for Mercedes-Benz, BMW, Audi, Volkswagen and Porsche
7. All Key lost for Audi and Volkswagen.
8. All System Diagnosis + 39 More Reset Functions + ECU Coding + Active Test
9. 22 Kinds of Languages Support.
10. VAG Guided Function
11. FCA AutoAuth Access

Other Optional Accessories You May Need:

With launch x431 MCU3 Adapter for X-PROG3 GIII Work on Mercedes Benz All Keys lost and ECU TCU Reading
With Launch X431 Immobilizer Programmer Simulator Key SI-KEY for Toyota All Keys lost

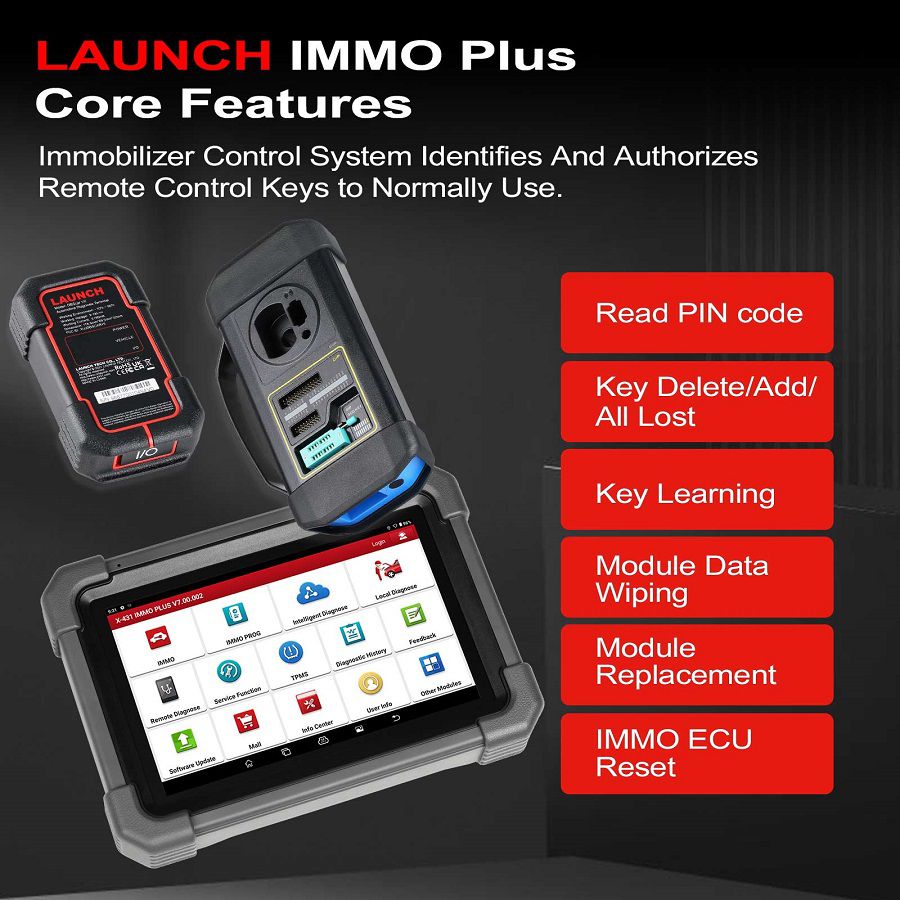

LAUNCH X431 IMMO PLUS Functions:

Advantages of PROG-3 Programmer Brings for LAUNCH IMMO Key Programming Tool:

• Engine ECU Module Clone & Replacement ( for 5000+ Models)
• Gearbox ECU Module Clone & Replacement ( for 5000+ Models)
• Remote Control Matching / Key Generation / Key Learning
• Read/Write Key EEPROM, MCU, Engine, Immobilizer
• Backup & Restore Bosch/Siemens Engine ECU Programming Data
• VW & Au-di Key Learning/All Lost
• 5th-Gen. Au-di (0AW/0B5) Gearbox ECU Replacement
• 5th-Gen. VW UDS engine ECU Reading, Writing & Clone
• Mercedes-Benz Key Adding/All Lost
• Mercedes-Benz IMMO ECU Data Wiping
• Mercedes-Benz Infrared Key Reading/Writing
• BMW Key Adding/All Lost; ECU Replacement
• BMW E chassis 8HP Gearbox ECU Data Wiping
• Porsche Key Adding/All Lost; ECU Replacement
• Read BMW Engine INS Code

ECU CODING:

Every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. LAUNCH X431 IMMO ELITE PLUS is equipped with advanced ECU coding function for addressing the following issues :

• Component Matching:

After you change the bad actuators or certain parts, you need to use this function to make a new code and recognize the new actuators.

• ECU Online Coding:

ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.

• Personalization:

Unlock hidden features,deactivate annoying features.

OE-Level Full System Diagnostics

LAUNCH X431 IMMO Plus automotive scanner can scan 120+ modules like ECM(engine), TCM(Transmission), ABS, SRS, Brake System, BCM(Body Control Module), EPS(Eletronic Power Steering), HVAC(Heat, Ventilation and Air Conditioning), TPMS(Tire Pressure Monitor System Reset) and so on to perform OE level diagnostics to read and clear codes, view live data stream, and retrieve ECU information, matching & adaptations, ECU Coding, allows you to get a faster and more accurate test result on all electronic systems.

LAUNCH X431 IMMO Plus automotive scanner can perform Bi-directional Control over various car systems and components to determine the integrity of a system or parts like ABS, SRS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators.

• Turn on the radiator fan
• Turn on/off the cooling fan
• Open/close windows
• Operate mirrors
• Turn on/off the lights
• Turn on/off the sound horn
• Test door lock actuators
• A/C Compressor Activation
• Modulate the throttle
• Compression test
• And More...

1. Brake Reset : After replacing the brake pads, you need to reset the position of the brake pads before installing the new brake pads to close the warning light.
2. Oil Reset: Close the oil service light, reset service mileage & service interval after replacing the engine oil, and the next maintenance calculation cycle is entered.
3. SAS Reset: Learn to correct the angle and solve the problem of the steering angle of the steering wheel.
4. BMS Reset: Use the power management system, the battery needs to be re-matched after the battery is replaced, so that the car computer can recognize the new battery.
5. Bleed Reset : When changing a new brake fluid, there is a high possibility that air will enter the brake fluid pipeline. In the traditional way, one person steps on the brake and another person changes the operating fluid. This function can perform the brake operation, and only one person is required to change the brake fluid.
6. SUS Reset : This function needs to be performed to level the body height sensor in the air suspension system when the body height sensor and the control module or the car is leveled incorrectly.
7. TPMS Reset: When replacing TPMS sensors or the signal from the sensor is lost it can quickly look up the tire sensor from the vehicle’s ECU, reset tire pressure and turn off the tire pressure MIL.
8. GEAR Reset: The vehicle has a crankshaft position sensor. This sensor collects the 58-tooth signal of the flywheel to determine the top dead center ignition time of a cylinder (reference signal). If this sensor is replaced, the reference will be lost, and gear signal learning is necessary.
9. Injector Reset (Injector Coding) : The engine injector has a code. After replacement, you need to write a new code into the computer so that the car computer can correctly identify the injector.
10. AFS Reset: It can detects the ambient light and then decides whether to turn on the headlights automatically. It can also adjust the headlights in time by monitoring the speed of the vehicle and the posture of the body.

Launch X431 IMMO Plus Advantages:

1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxs.
4. Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.
5. Supports BMW E chassis 8HP gearbox ECU program wiping.
6. Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU IMMO data erase.
7. Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.

- Bosch engine ECU: ME17, MED17, EDC17, MEVD17, etc.
- Siemens engine ECU: BMW(MSV90, MSD87, MSD85,MSD81, MSD80), Mercedes(SIM271DE2.0,SIM271KE2.0), VW/Audi(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.
- Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1,VL381,VGS2- FCVT,VGS-FDCT,DQ400E,DL501 Gen2,DL382-7F,VGS2-FDCT,9G_Tronic,DQ380,DQ381, DQ500,AL551,AL450,AL552,AL951,8HPXX, etc.

1.Engine Module and Transmission Module Cloning

If the original vehicle module can communicate, you can use cloning to back up the data of the original vehicle module, restore it to a foreign module (new or second-hand), and directly replace and install it.

①For Engine Module

It is compatible with over 316 kinds of Engine module type of Bosch、Continental、Siemens、Delco etc.
It also works for 62 kinds of Car brands as below:
Europe:
Abbas,Alfa romeo,Alpina,Aston martin,Audi,Bentley,BMW,BMW Brilliance,Bugatti,Citroen,Dacia,Dallala,Ferrari,Fiat,Jaguar,Lamborghini,Lancia,
Land rover,Maserati,McLaren,Mercedes,Mini,Opel,Peugeot,Porsche,Renault,Saab,SEAT,Skoda,Vauxhall,VW,Volvo,Iveco.
US:
Holden,Chevrolet,Dodge,Ford,Freightliner,GMC,Jeep,Lincoln,Rolls-royce,Chrysler,Buick,GM,Cadillac.
Asia:
Honda, Hyundai,Infiniti,Isuzu,Kia,Mahindra,Mazda,Mitsubishi,Dongfeng Nissan,Subaru,Suzuki,Toyota.
China:
Chang'an, Great Wall,Geely, JMC.

②For Transmission Module

It is compatible with over 47 kinds of Engine module type of Bosch、Continental、Siemens、Delco、Getrag、ZF、Temic etc.
It also works for 36 kinds of Car brands as below:
Europe:
Audi,Bentley,BMW,Jaguar,Land rover,Maserati,Mercedes,Porsche,Renault,SEAT,Skoda,VW,Daimler,Volvo,Alfa Romeo,Alpina,Aston Martin,Lamborghini,David Brown,Rolls-royce,Weitzman
US:
Ford,Lincoln,Chrysler,Dodge,Jeep,Buick,Universal,Chevrolet,Cadillac,Holden
Asia:
Mazda, Hyundai,Infiniti,Kia, Dongfeng Nissan
For Specific engine and transmission module type, please contact us.

2.Volkswagen & Audi anti-theft matching

①Fourth generation instrument + engine module

A.Key learning
B. Lost all keys
C. Meter replacement
D. Engine Module Replacement

②Four-generation comfort module + engine module

A.Key Learning
B.Lost all keys
C.Engine Module Replacement

③The fourth generation EZS/kessy+ engine module

A.Key Learning / All Key Lost
B.Engine module replacement

④Five-generation anti-theft system A4/A5/Q5/A6/A7/A8

A.Key learning
B.Lost all keys
C.Engine Module Replacement
D.Gearbox module replacement
E.Steering column lock module replacement

⑤Volkswagen MQB anti-theft system

A.Key learning
B.MQB engine module replacement
C.MQB gearbox module replacement
D.Engine module cloning
Gearbox module cloning

⑥Porsche Immobilizer Match

A.Anti-theft key matching: Read anti-theft data/Get CS code/Generate dealer key/Matching keys
B.Anti-theft module replacement: front-end electronic modules of 911, Boxster, Cayman, Cayenne, Macan, Panamera models.
C.Engine computer replacement: Cayenne and Panamera models.
D.Battery restoration: Cayenne and Taycan models.
For model details, please contact us.

Launch X431 IMMO Plus vs IMMO Elite vs X431 V+ vs X431 Pad VII

Item	Launch X431 IMMO Plus	Launch X431 IMMO Elite	Launch X431 V+ and X-prog3	Launch X431 PAD VII with X-prog3
Price	$1259	$1099	$1399	$2699
Language	24 Language Supports: English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian , Romanian, Serbian, Finnish, Swedish, Czech, Chinese Simplified, Chinese Traditional	24 Language Supports: English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian , Romanian, Serbian, Finnish, Swedish, Czech, Chinese Simplified, Chinese Traditional	Multi-Language: English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Dutch, Danish, Korean, Finnish, Swedish, etc	Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
Update	2 Years free update	2 Years free update	2 Years free update	2 Years free update
Read immobilizer password	Yes	Yes	Yes	Yes
Ignition key learning	Yes	Yes	Yes	Yes
Benz BMW VAG Porsche key programming	Yes	Yes	Yes	Yes
ECU Gearbox TCU Cloning (IMMO Prog)	Yes	Yes	No	Yes
Anti-theft password car coverage	More	More	Less	Less
Nissan B18 Immo replacement without password	Yes	Yes	No	No
Toyota all keys lost (pre-2022)	Yes	Yes	No	No
Volvo all keys lost (-2022)	Yes	Yes	No	No
Peugeot all keys lost	Yes	Yes	No	No
Citroen all keys lost/ module replacement	Yes	Yes	No	No
Independent IMMO function for each car brands	Yes	Yes	No	No
Basic diagnostic function	Yes	Yes	Yes	Yes
Active Test (Di-directional)	Yes	Yes	Yes	Yes
Special function under each car brands	Yes	No, no VAG guided function, Renault special function under Diagnostic.	Yes	Yes
Common Service reset functions	Yes	Yes	Yes	Yes
Guided function	No	No	No	Yes
Online programming	No	No	No	Yes

Launch X-431 IMMO PLUS Host Specifications:

Processor	2.0GHz 4-core
Operating system	Android 10.0
Memory	4GB
Storage	64GB
Battery	47880mWh(7.6V,6300mAh)
Display	8-inch, 1280*800
Camera	Rear 8MP
WIFI	2.4GHz/5GHz (dual frequency)
Interface	TYPE A *1 &TYPE C*1
Operating temperature	0~50℃
Size	234*166*39.5(mm)

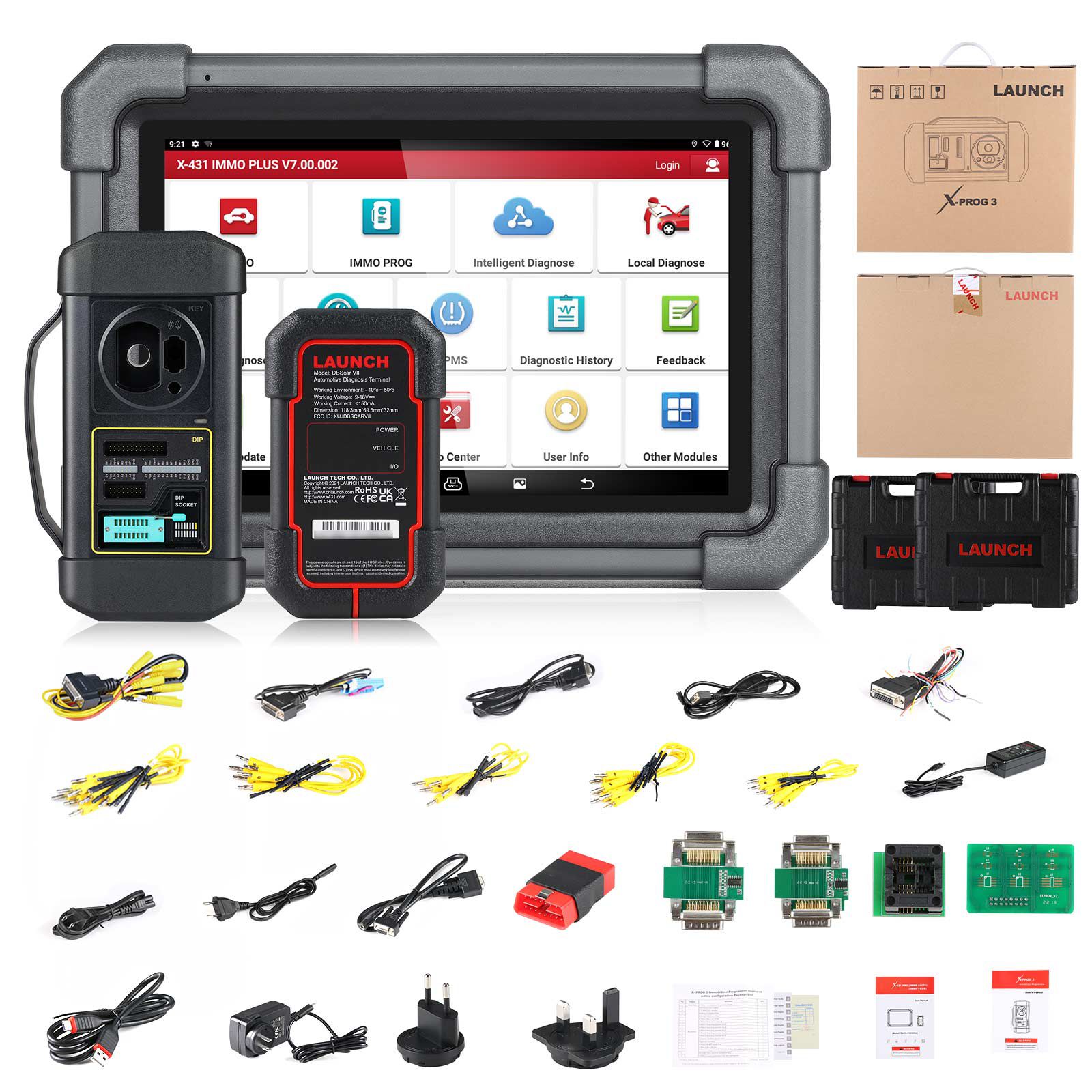

Package Includes:

1pc x LAUNCH X431 IMMO PLUS Display tablet
1pc x VCI connector
1pc x Diagnostic cable
1pc x Password envelope
1pc x Type-A to Type-C USB cable
1pc x X-PROG 3 immobilizer programmer kit
1pc x Non-16pin adaptor cable kit
1pc x Power adaptor
