UPA USB Programmer V1.2 with Full Adaptors

2014 New UPA USB Programmer V1.2 With Full Adapters

This one is out of stock at present,you can choose 2014 UPA USB V1.3.0.14 With Full Adaptors

Supported Language: English Only

Software Version: Hardware Version: V2013

Software Version: V1.2





Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.

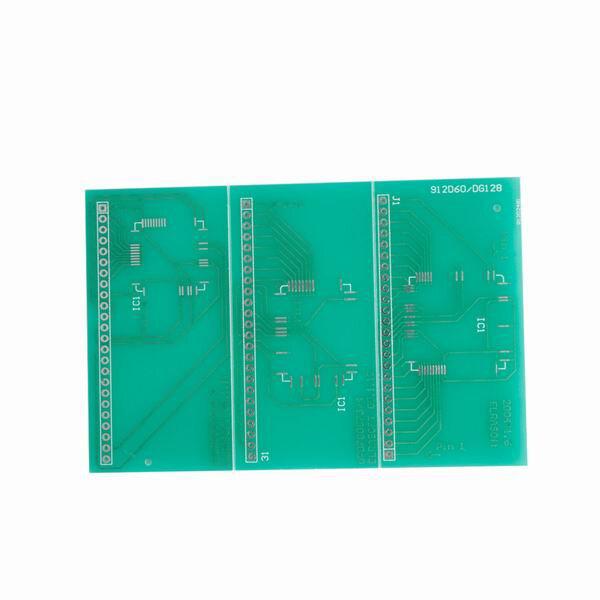

Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.

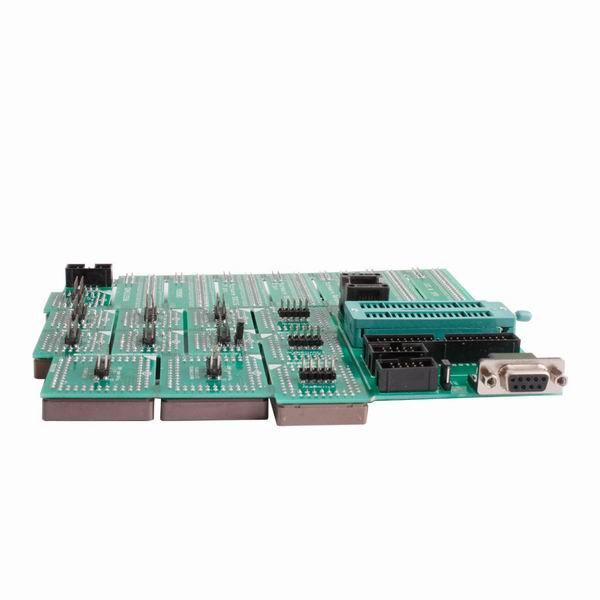

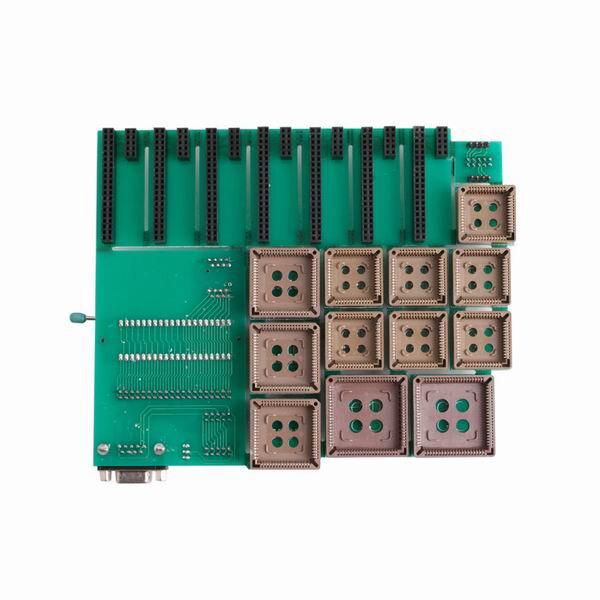

The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually.

(Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector)

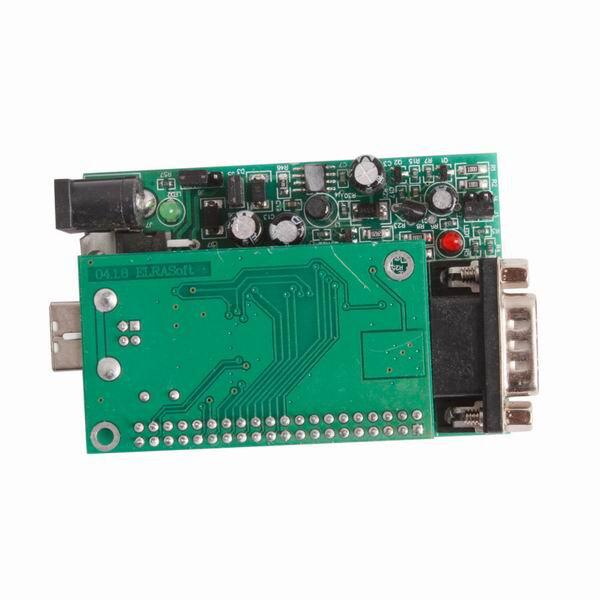

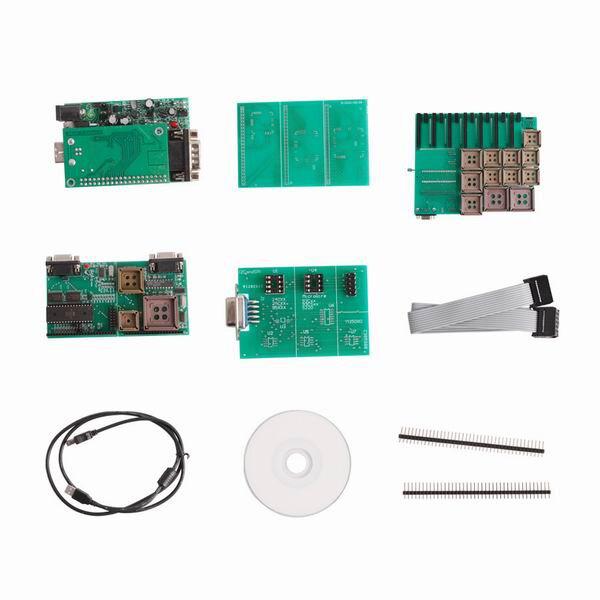

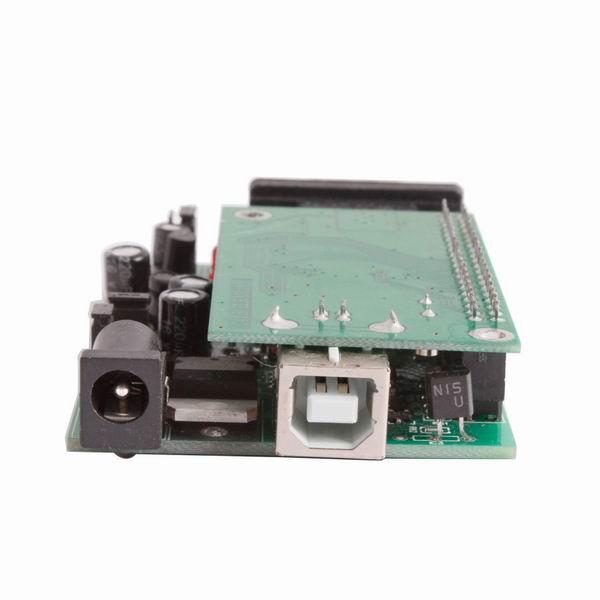

1x UPA programmer

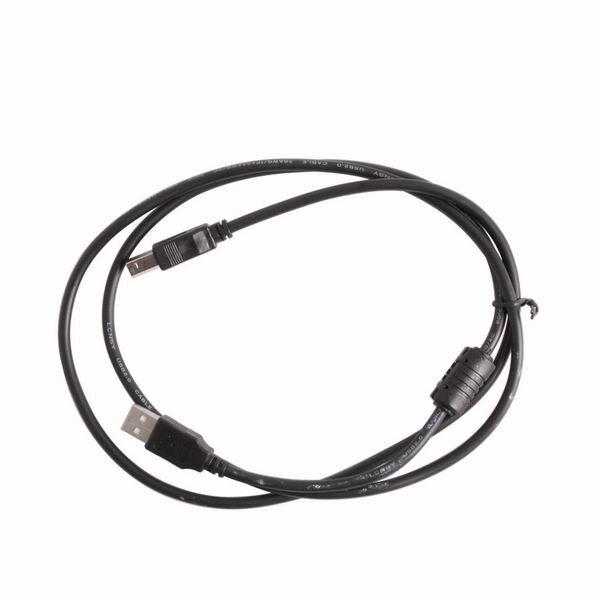

1x USB cable

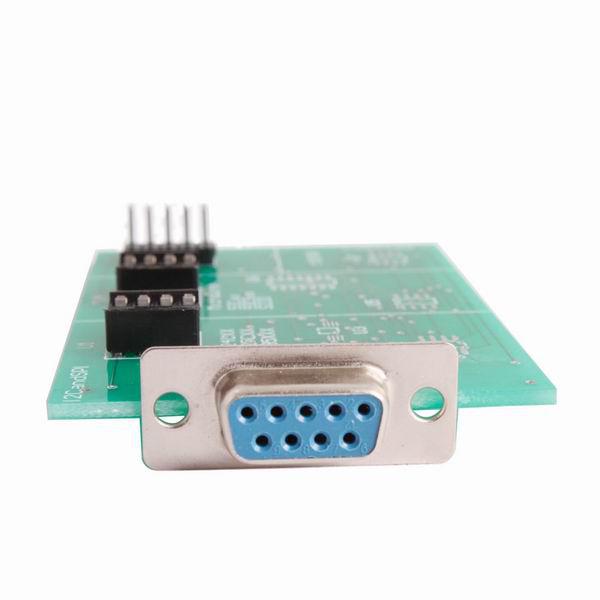

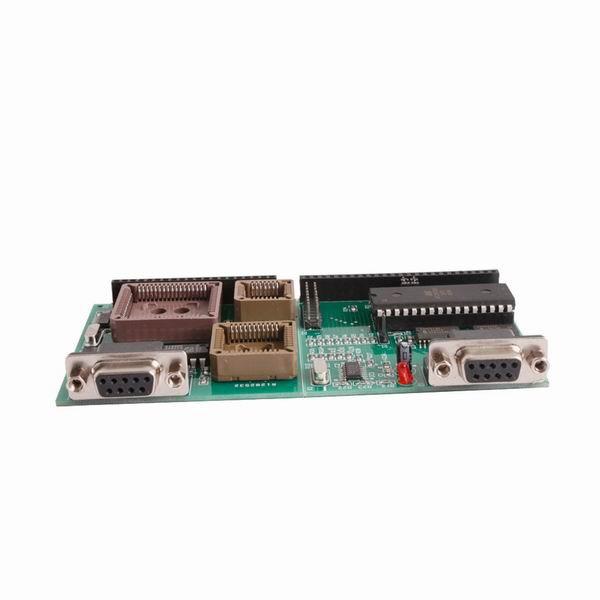

1 x Mainboard with 40pin DIL ZIF (600mil) socket and 14pin SOIC ZIF (150mil) socket





1 x I2C & SPI Config Key

1 x Microwire Config Key

1 x Microwire Rotated Config Key

1 x Microwire 93(C)S 8 pin Config Key

1 x Microwire 93(C)S 14 pin Config Key

1 x M35080 Config Key

1 x SDA(E)2506 Config Key

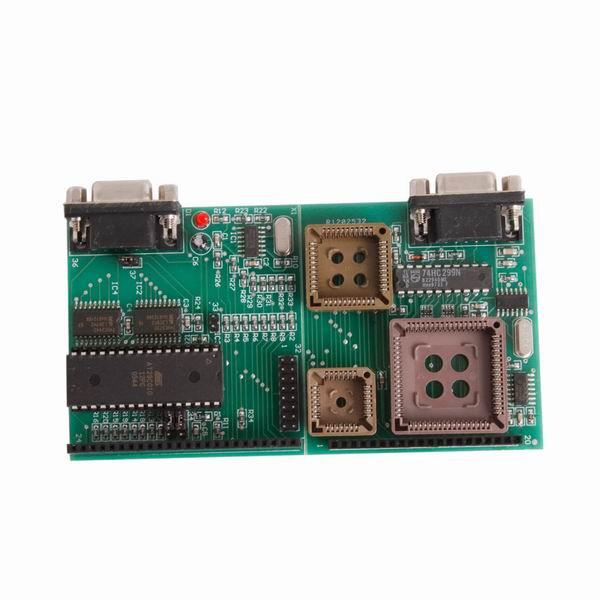

1 x CR16MES & CR16MFS ISP Adapter

1 x MC68HC05B ISP Adapter

1 x MC68HC08AS20 ISP Adapter

1 x MC68HC705B16 ISP Adapter

1 x MC68HC11A8/E9 ISP Adapter

1 x MC68HC05H12 ISP Adapter

1 x MC68HC11EA9 ISP Adapter





1 x MC68HC11F1 ISP Adapter

1 x MC68HC11KA2/4 & MC68HC11KS ISP Adapter

1 x MC68HC11L6 ISP Adapter





1 x MC68HC11P2 & MC68HC11PH8 ISP Adapter

1 x MC68HC11K ISP Adapter

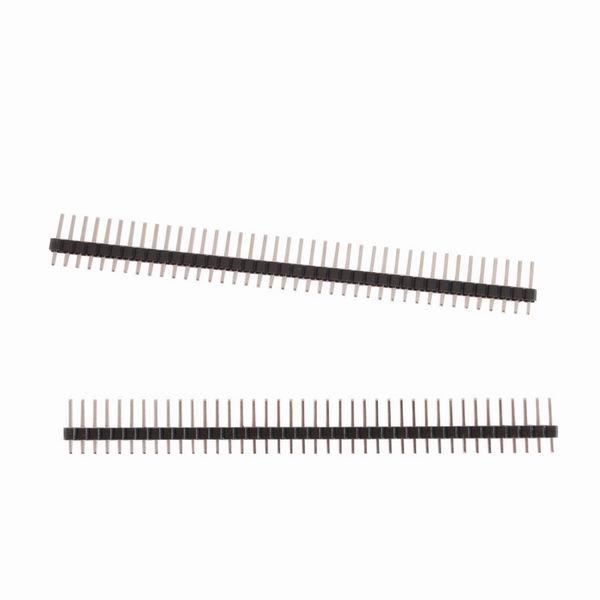

1 x DIL to 10pin Flat-ribbon header (For using IC clips or clamps)

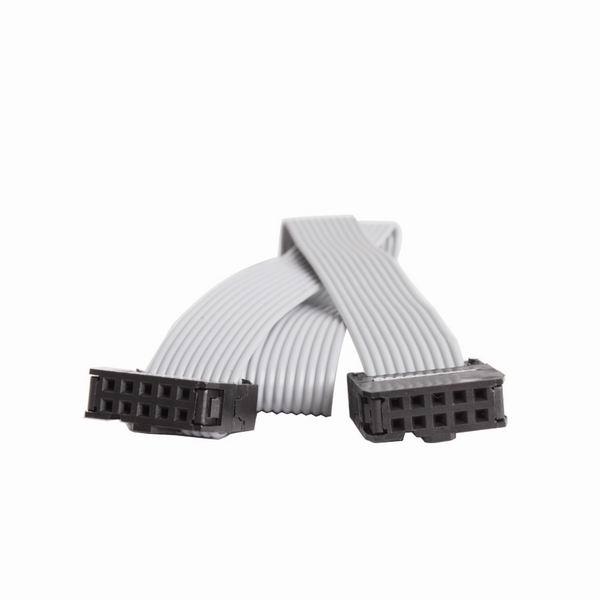

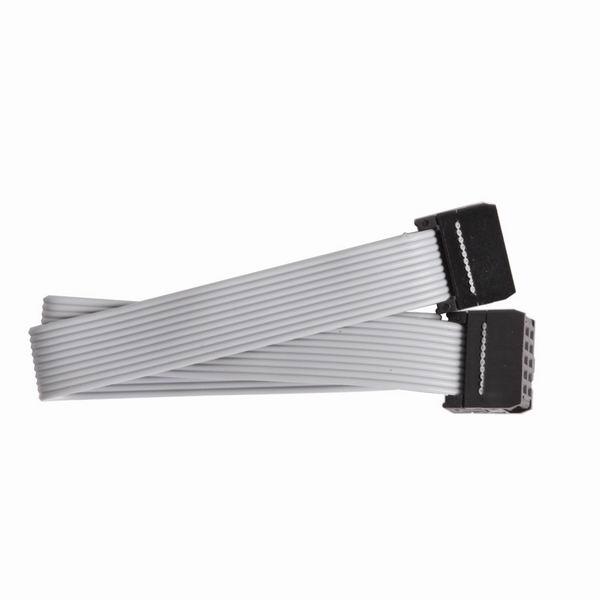

1 x Flat-ribbon cable 10pin





Simply connect the mainboard to the UPA programmer directly or by using a DB9 male / female extension cable (1:1). Insert the correct config key into the slot of the mainboard and start programming either via the ZIF or SOIC Socket. You can also use the included DIL to 10pin Flat- ribbon header, put it inside the ZIF socket and wire up an SOIC clip or clamps for ISP use from there.Motorola MCU'sPick the Adapter you want to use, attach the flat cable to the Adapter (PIN1 is always indicated, on both the cable and also the Adapter) and also to the main board's 10pin ISP connector. Select the VCC supply source by the jumper on the mainboard next to the ISP connector (on = target supplied from upa, off = target got own supply). Slide the Adapter over the soldered PLCC MCU on the target PCB. (No soldering, no pinout reviewing, no pin counting, saves lots of time and hassle and let's you make your job faster, precise and easier) Once your workshop is equipped with our Adapter Set you will have a all new UPA Experience.



STMicroelectronics ST62*:

ST6240, ST6245, ST6249

NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9 for Motorola HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,MC68HC05X16, MC68HC05X32

for Motorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A

for Motorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1,MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8

for Motorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A

for Motorola HCS12*: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128, MC9S12H256

Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253

Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434,AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163, ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15, ATtiny2313

Microchip PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675

Microchip PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76,PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873

(A), PIC16F874(A), PIC16F876(A), PIC16F877(A)

EEPROMs I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512,85C72, 85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814, PCA8581, PCF8581,PCF8582, PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01

EEPROMs Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46

EEPROMs SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640,M25P05, M25P10, M25P20, M25P40, M25P80, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320,ST95640, ST95P02, ST95P04, ST95P08, X5043, X5045

EEPROMs Miscellaneous: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101,TC89102*EEPROM Only



NEC ..uDP780828A uDP780948 uDP780949 uDP780973 uDP780974

TMS...TMS370CX02 TMS370CX32 TMS370CX36 TMS370CX42 TMS370CX56 TMS370CX56 TMS370CX56 78K0/HC912

TMS370CX58 TMS370CX58 78K0/HC912 TMS375C006



FAQ:

Q:Does this UPA can do TMS chip ?

A: Yes
