Original XTOOL X100 X-100 PAD2 X100 PADII Key Programmer Special Functions Expert Update Version of X100 PAD

XTOOL X-100 PAD 2 Special Functions Expert

Notice: Not Support Indian Cars.

Click Here XTOOL X100 PAD and X100 PAD2 comparison table

X-100 PAD 2 Features:

Key Programming
Oil Reset/engine oil light reset
Odometer Adjustment
Tire Pressure Warning Light Reset
Timing belt light reset (Manual Operation)
EPB Electrical Parking Brake Adaptation
TPS Throttle Body Adaptation
Steering Angle Calibration
Battery Reset
DPF PIN Code Reading
Hexadcimal editor(Win Hex)
OBDII Diagnosis
Support the latest vehicles with CAN BUS and UDS protocol
Update Via WIFI (always equip your device with the latest software)

Specifications:

Operating System:	Android 4.4.4
Memory:	1GB RAM, 16GB Flash
CPU	Quad Core, 1.6 GHz
Display	8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors:	Gravity Sensor, Light Sensor
Input/Output:	Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port
Battery:	4000mAh, 7.4V
WIFI	WIFI 2.4Ghz
Bluetooth	100 Meters
Power Voltage:	12V
Power Consumption:	29.6W
Operating Temperature:	-20 to 50℃(-4 to 126℉)
Humidity:	<90%
Dimension:	(L*W*H): 240*177*30mm

More details:

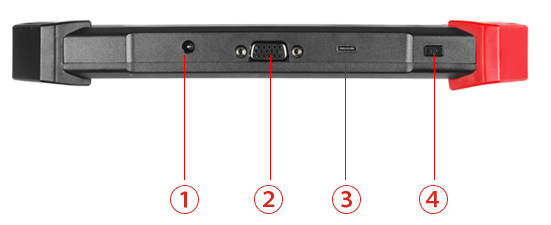

Layout of X-100 PAD 2

①　USB Type C Port: Compatible with HDMI TV port
②　Power Button: Power on or off
③　DC Charging port: Battery charging
④　DB15 Port: Supports wired connection with car by the cable

①　Earphone jacket
②　USB 2.0 Port: data synchronization with PC
③　Mini HDMI Port

Front View of X-100 PAD 2

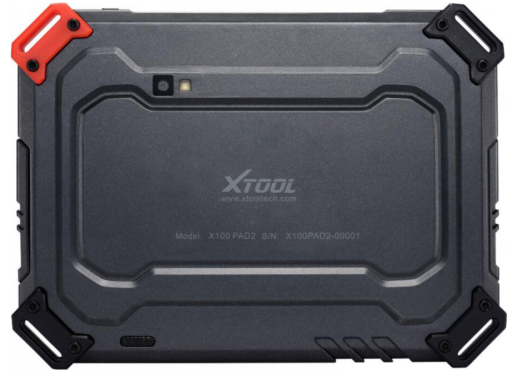

Back View of X-100 PAD 2

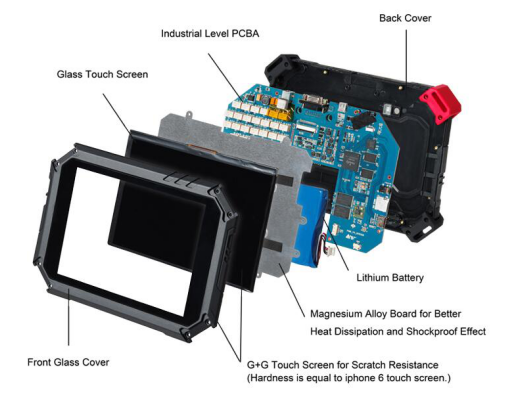

X-100 PAD2 Exploded Diagram

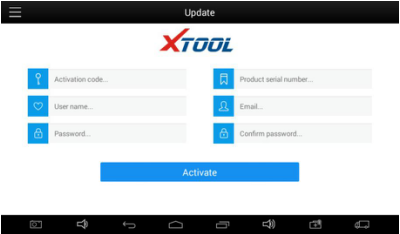

Easy registration with X-100 PAD 2 connected to WIFI. Don’t bother to use PC for registration.

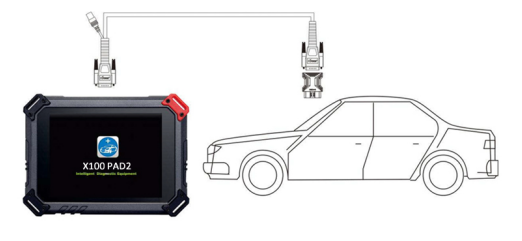

Connect to vehicle directly with cable

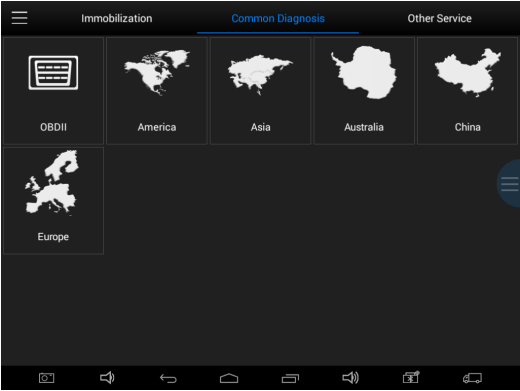

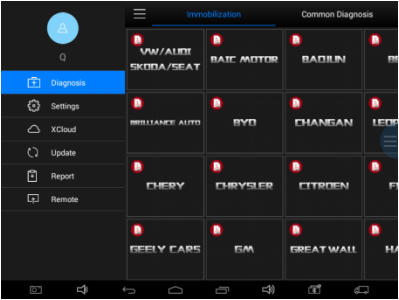

Diagnosis interface for choosing vehicles’ model



You can choose your area before you start

Each area will contain the all the brand this device can do, here is thelist:
America: Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford
Asia: Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki, Toyota
China: BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery
Europe: Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot, Porsche, Renault, Romeo, Seat, Skoda, Smart, VW

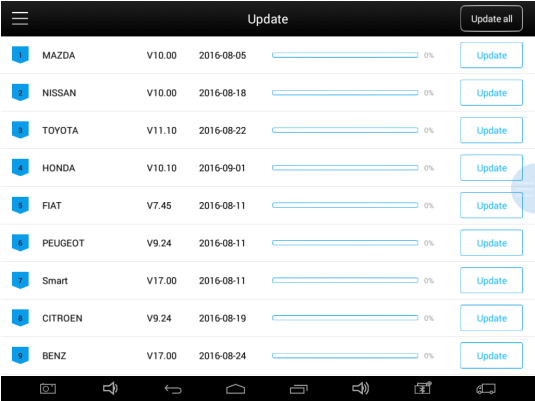

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

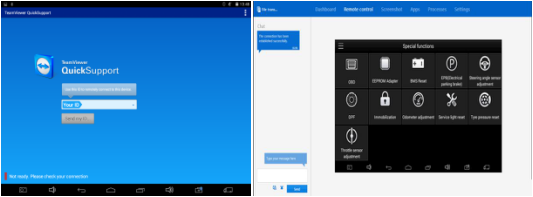

Remote access, which is perfect for training, demonstration and even remote diagnosis.

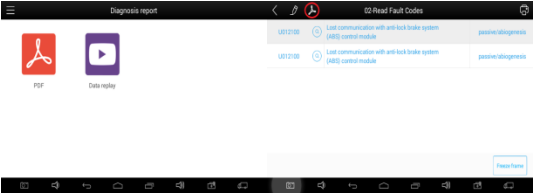

Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars.
They will be really happy knowing what kinds of problems have been fixed for their cars.

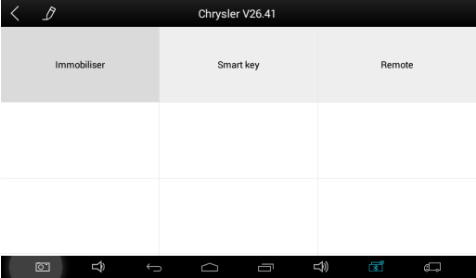

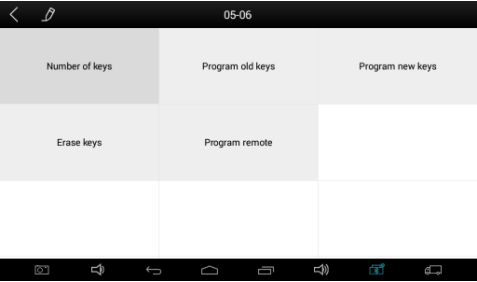

Key Programming Features:

1.New keys programming
2. PIN Code Reading with EEPROM
3.Hexadcimal editor(Win Hex)
2.Reads keys from immobilizer's memory
3.New immobilizer programming
4.Vehicle Identification Number programming
5.Reset ECM & reset immobilizer
6.New remote controller programming
7.With full and strong database for the most important vehicle makes

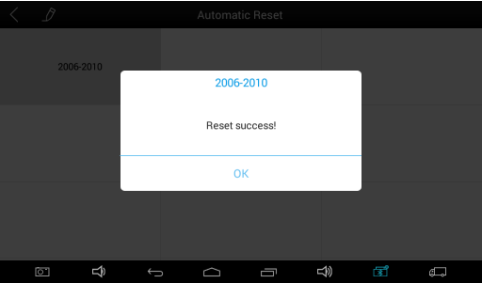

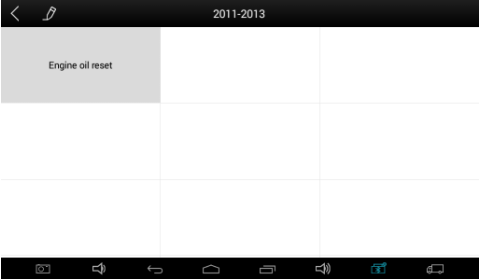

Oil Reset Functions Features:

Innovative one-click Oil Reset for VW, Audi, BMW, Mercedes Seat, Skoda, Volvo, etc.
Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported BMW models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
Support Mercedes Benz new C Class, E Class models and Mercedes Benz VITO/VIANO/SPINTER.

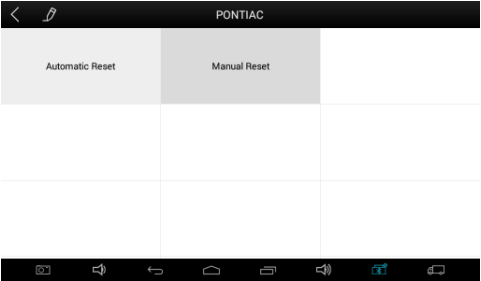

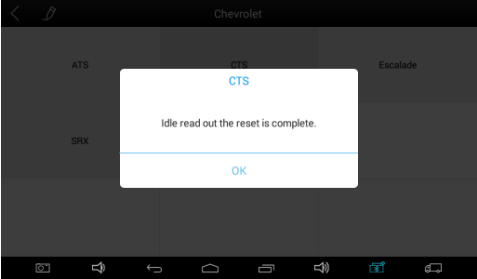

Support the lifespan percentage resetting of engine oil for Buick, Cadillac etc.
Support Porsche Cayenne, Panamera till 2012
Support maintenance light reset for Volvo, Land Rover.

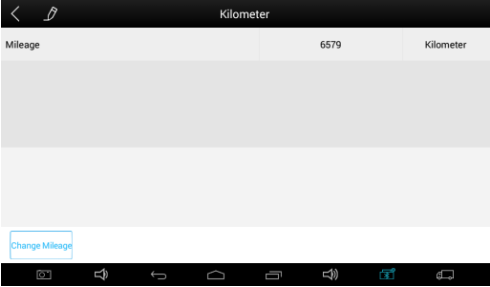

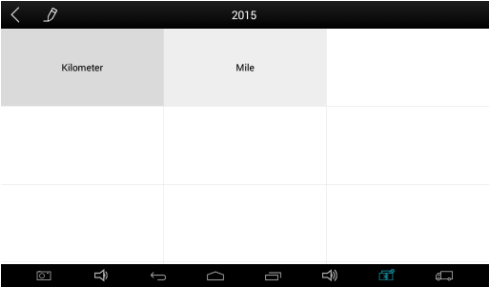

Odometer Adjustment




TPS Throttle Body Adaptation:

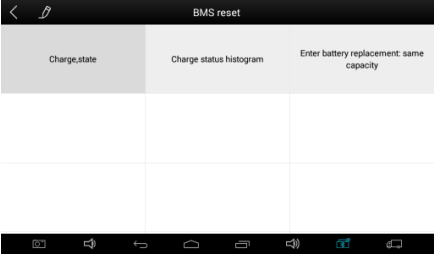

BMS Reset (Battery Reset):

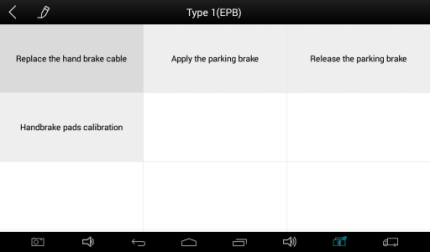

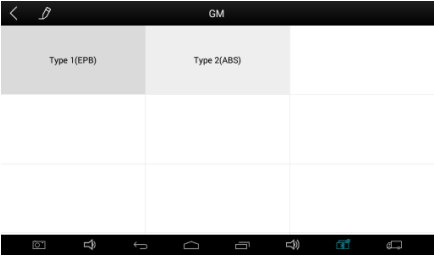

EPB Electrical Parking Brake Adaptation:

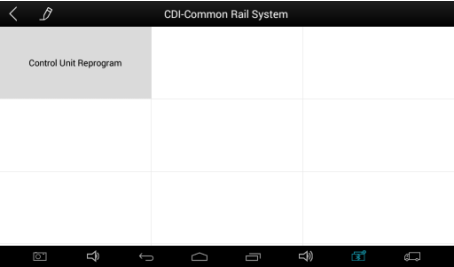

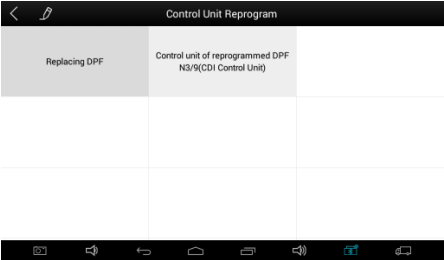

DPF:

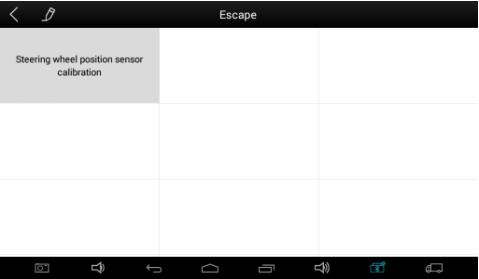

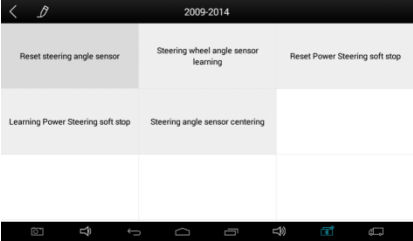

Steering Angle Calibration:

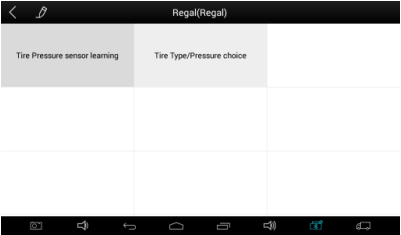

Tire Pressure Warning Light Reset (Manual Operation)

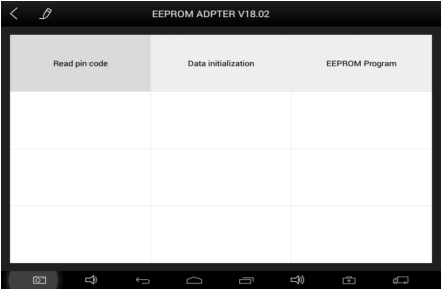

EEPROM Adapter Features:　
1.PIN Code Reading
2.ECU Initializing
3.Chip Programming



Four System Diagnosis:

Package including:

1pc x OBD II-16
1pc x HONDA-3
1pc x KIA-20
1pc x MAZDA-17R
1pc x HYUNDAI/KIA-10
1pc x Main Cable (DB15_Male To VGA_Male)
1pc x X-100 PAD 2
1pc x DC12V(AC100~240V) 3ACharger
1pc x US Power Adapter
1pc x EU Power Adapter
1pc x EEPROM
1pc x USB Type-C to Mini USB cable
1pc x Type-C cable
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
