OBDstar X100 X-100 PRO Auto Key Programmer (C+D) Type For IMMOBILISER+Odometer Adjustment +OBD software

X-100 PRO Auto Key Programmer (C+D) Type for IMMO+Odometer+OBD Software

Reasons of Buy X-100 PRO Auto Key Programmer

1. Original from OBDSTAR, Support EEPROM Function, now we have promotion to send OBDSTAR PIC and EEPROM 2-in-1 Adapter free, please don't miss
2. Free Update Online on Official Website for 1 Year,250usd/year after 3 Years
3. Inherited the overall look of the original X - 100 +, changed the new silicone button, feel more comfortable
4. Adjusted the TF card slot position in mold, fit more tightly than previous generation, card plug will not go inside the machine
5. Software downloading speed is improved by more than 50%
6. New upgraded software operating system, added operating interactive prompt
7. High-capacity 4G TF card, more stable performance, never appear white screen
8. New design of PCB hardware, greatly improved configuration

X100 Pro PCB Board

Notice about X-100 PRO C+D Type

1. Language: English, Simplified Chinese, Traditional Chinese
2. Dealer Code: 860755B1 or 860010A1
3. Configuration(C+D): IMMOBILISER+ OBD Software and Odometer Adjustment + OBD Software

What's the difference between this OBDSTAR X100 and XTOOL X100?

1. OBDSTAR X100 can support EEPROM function, while XTOOL X100 can't
2. OBDStar X100 can't support Proton, while XTOOL X100 can

X-100 Pro Vehicle Coverage

• EEPROM Adapter: EEPROM ADAPTER V30.40
• IMMObiliser: ACURA, Audi, BAIC, BESTURN, BRILLIANE, BYD, CHANGAN, CHANGHE, CHERY, Chrysler, Citroen, DFLZ, DFPV, DS, FORD, GEELY, GM, GREATWALL, HAFEI, HAIMA, HAWTAI Motor, Honda, HONGQI, HUAPU, Hyundai, INFINITI, JAC, JAGUAR, Kia, LANDROVER, LEXUS, LIFAN, LINCOLN, LUFENG, Mazda, MG, MITSUBISHI, NISSAN, OPEL, Peugeot, PORSCHE, RENAULT, ROEWE, SAIC ENGLANG, Seat, Skoda, SMART, SSANGYONG, SUBARU, SUZUKI, TOYOTA, VW, YOUNGLOTUS, ZZMAZDA, ZZNissan;
• OBDII: OBDII V30.02 for diagnose
• Odometer: Audi, VW, BENZ, Chrysler, FORD, GM, PORSCHE, Skoda, Seat
  And the more cars’ software will be released.

Remark: including X-100+ all the matching function and add new software function in X-100 PRO. Do not include Proton this car model

Customer Feedback

• Audi A3 is on the list from 2003 - 2006, 2007- up personally I have not tried
• Volkswagen Tiguan 2013 TFT color dash nec+24C64 ok
• Volkswagen caddy 2014 white meter NEC24C64 via obd
• Volkswagen Caddy 2014 with TFT Color dash via obd
• Volkswagen Caddy 2014 with TFT Color dash via obd
• Seat Ibiza 2014 Via obd ok
• Volkswagen Polo 2014 with NEC24C64
• 06 a8 OK
• 2013 golf with black/white screen - OK (with latest update)
• Q5 2013 via obd ok
• Tiguan 2012 tft color NEC24C64 ok
• Volkswagen Polo 2014 White Meter NEC24C64 using golf menu OK

• Hyundai verna fluidic obd ok
• hyundai accent 2012 by obd ok 24c16
• Hyundai Creta D70F3525 ok
• Hyundai Verna 24c16 ok
• hyundai Accent 2011... by obd in 2 seconds

• Kia Sportage with 24c16 2012 work perfect
• Kia sorrento 24c16 al ok obd
• Kia Sportage D70F3423. 2015 successfully done less than 20 seconds.
• Kia Sportage 2014 with 24C16 work perfect
• kia sportage r 2014 d70f423 mieage tested ok

• Opel Isignia 2011 works well via obd
• Opel Insignia 2009/2011 OK
• Opel Zafira 2012 OK

• Chevrolet Cruze 2010, 2011, 2012 via obd Ok
• Range Rover Evoque 2013 via obd ok
• Jeep compas 2014 for OBD2 2008+
• I20 24c16 ok (Note: if you WANT TO DO KM IN HYUNDAI I20 THEN YOU HAVE TO PUT KM 4 TIME MORE EX. 1000 KM NEED THEN PUT 4000 KM IN X100.)
• 2006 Chrysler 300c -> will do dash via obd but won’t do SRI
• Hummer H2 2008 via obd ok
• Astra J 2010 ok
• 2014 Altima Via obd ok
• i20 by obd ok ..... so i had to make the x4 solution given on this thread example for 25300km = 25300x4 ; sometimes gives 9999999 some times 564873248 whatever but keep trying 1 or more number more on total.
• Rio obd ok
• Insignia 2011 read security code +program keys OK
• just make key for FORD focus 2011 on 80bit tranposnder 10 min job done
• Passat 2009 mileage nec+24c32 OK
• Can support VW micronas
• Fiat 500 2010 OK
• Grande Punto 2009 OK
• Audi A3 2008 monocolore OK
• Evoque 2012 works OBD
• it can make Audi normal a6 before 2009
• I20 2015 TESTED.VERY GOOOD.OK OK OK
• Astra J 2011 read Security Code ok (via GM cruze)
• Golf 6 2012 white color, write 2 sec !!
• Honda civic 2006 all keys lost OK
• Chevrolet Captiva 2012, 2013 ok

• Ibiza 2015 failed
• Car had 110,581 kms x100 displayed 442,xxx kms
• Volkswagen Polo 2012 with Nec+95320 can't do it, security access failed
• AUDI a3 2011 not work, advise you can do it with vvdi, vvdi2
• 2006 chrysler pacifica immo no connection (8th November, 2015 update)
• Hyundai Verna Fludic 2015 pertol but no communication with x 100(20th November, 2015)
• 98 beetle NOT OK(22nd November, 2015)
• Volkswagen Caddy 2015 white meter with NEC24c64 failed (27th November, 2015)
• Kia sportage 2013 round dash screen obd success
• Chevrolet Cruze 2014 via obd take less than 4 seconds
• Range Rover Evoque SD4 2013 ok less than 2 seconds
• Nissan Leaf Electric Car 2014 Mileage correction done
• Dodge durango 2014 .... work perfect
• FORD ranger 24c16 by OBD2 ok

• Can't reset Volkswagen DSG also Cruze BCM
• Kia soul with 24c16tw .... obd not ok
• Hyundai accent 2014 with 24c16tw ......not work, but other accent with red screen tacho light 24c16 work well
• 2008- savana asking to enter ecu code

• focus 2013 OK
• fiesta 2012 OK
• grand punto 2010 OK
• punto 2007 OK
• grand cherokee 2013 OK
• astraj 2010 2011 2012 NOT OK
• Fiat fiorino obd ok
• Audi A4 2007... in 20 seconds by OBD.
• 2013 jetta mono display ok.
• Chevrolet CRUZE 2012, Read security code ok and Mileage ok
• Cruze 13 miles ok
• Volkswagen Amarok 2014 ok ( chose golf NEC 24C64 white meter 2013-)
• PORSCHE Cayenne 2012 mileage OK
• Skoda Octavia 2010 nec+24c32 VDO mileage OK
• Skoda Superb 2012 via obd mileage ok
• Polo 2004 VDO k Line mileage OK
• have made KM visteon dash 95320 vw golf 5 with success, just plug and play
• Mazda 6-2015 via obd -ok
• Mazda 3-204-2015 obd-ok
• Octavia 2012-nec24c64-ok
• 2010 Cadillac escalade odo via obd – ok
• fiat qubo/fiorino obd ok
• audi a4l 2012 by obd ok
• KIA Sportage 2014 + with D70F3536 (no external EEPROM) ok
• KIA Optima 2014 + with D70F3536 (no external EEPROM) ok
• KIA Sorento 2014+ with D70F3523 (no external EEPROM) ok
• Hyundai I20 2015+ with D70F35xx (no external EEPROM) ok
• Hyundai Genesis 2015+ with D70F3523 (no external EEPROM) ok
• hyundai accent (korea) 24c16 obd not ok but choose AZERA D70F3423 and read km write ok and did same with RIO but choose kia ceed D70F3423
• even when i open dash they had 24c16 and D70F3423 hope that saves time for you as did to me
• 2012 jetta nec+24c64 black/white display-20 sec ok
• FORD Ecosport 2014 1 min by obd ok, It's like new fiesta same cluster Ecosport
• Citroen Nemo 2008 - OK
• Fiat Fiorino 2010 - OK
• Fiat Fiorino 2012 - OK
• VW T5 2011 - OK
• Chevrolet Cruze 2010 - OK
• Chevrolet Cruze 2011 - OK
• Dodge Durango 2007 (as Chrysler RAM 2006-2008) - OK
• Hyundai Accent 2011 - OK
• Hyundai Accent 2012 - OK
• Opel Insignia 2010 - OK
• Peugeot Bipper 2012 – OK
• Mazda cx-9 2008 ok

Features of OBDSTAR X100

1. New keys programming;
2. Reads keys from immobilizer’s memory;
3. New immobilizer programming;
4. New ECU programming;
5. New mechanical key number programming;
6. Vehicle Identification Number programming;
7. Reset ECU&reset immobilizer;
8. Easy to operate by the guided menu programming;
9. New remote controller programming;
10. Immo PINCODE reader;
11. Odometer ajustment(Via obd);
12. With full and strong database for the most important vehicle makes;
13. Upgradeable via web-based download;
14. EEPROM Chip read;

Packing List

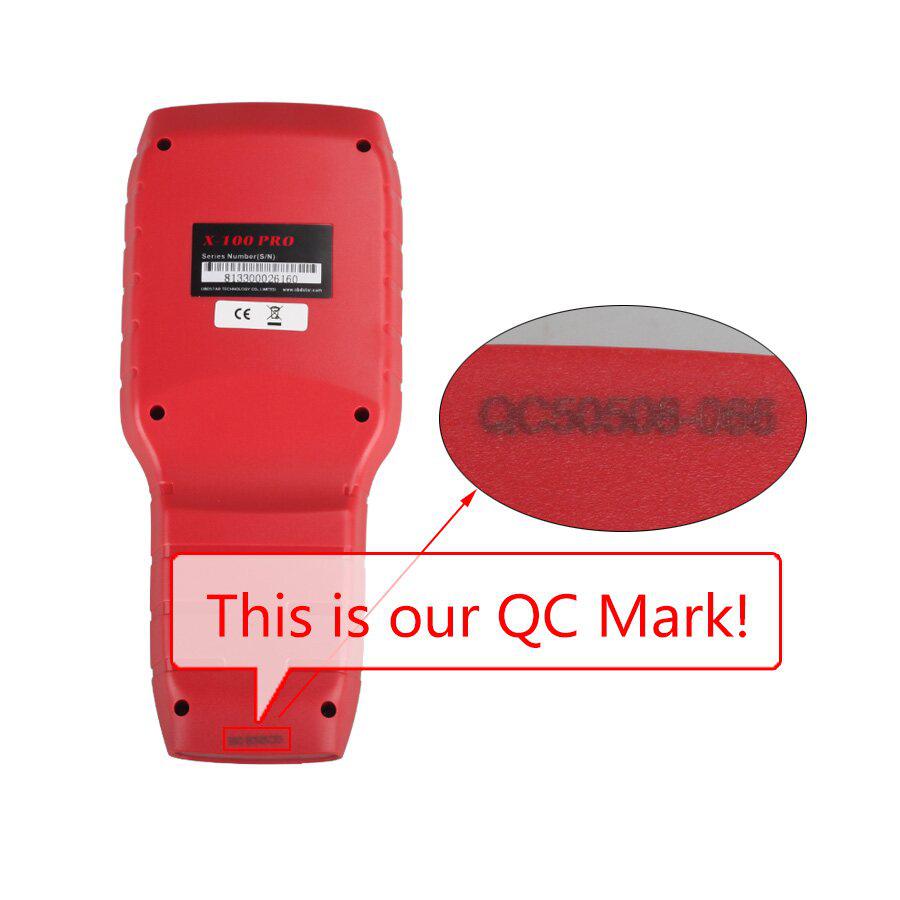

• 1pc x X-100 RPO Main Unit
• 1pc x OBDII-16 Connector

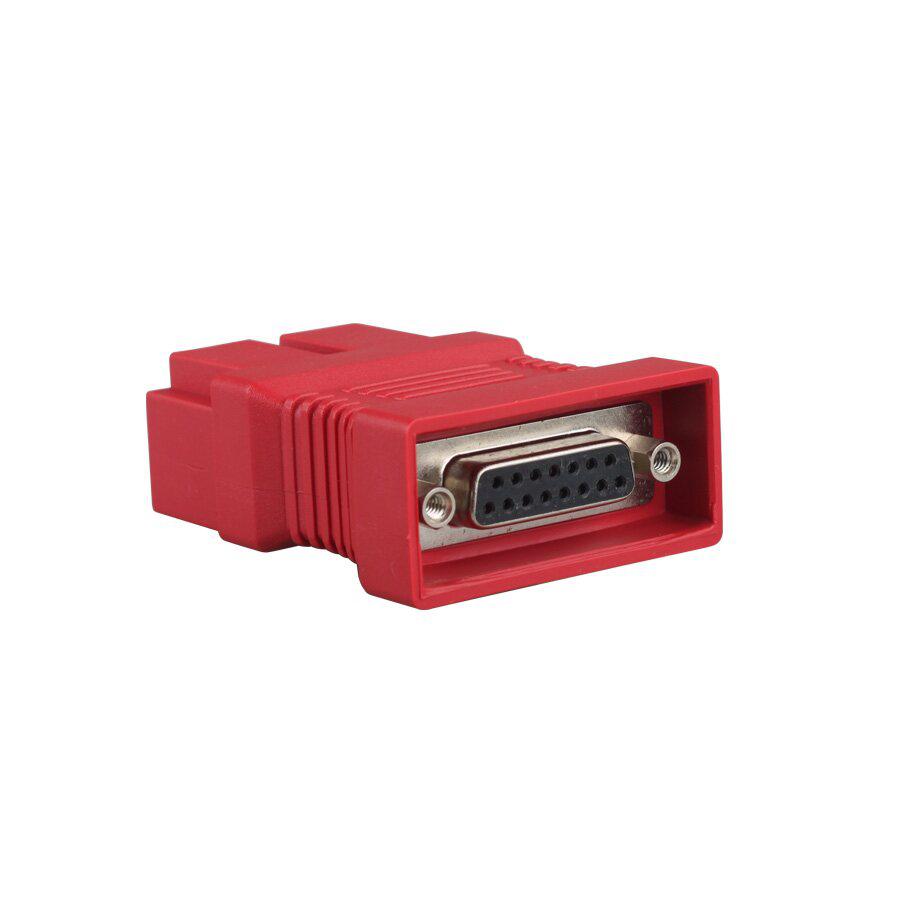

• 1pc x HONDA-3 Connector
• 1pc x HYUNDAI/KIA-10 Connector
• 1pc x KIA-20 Connector

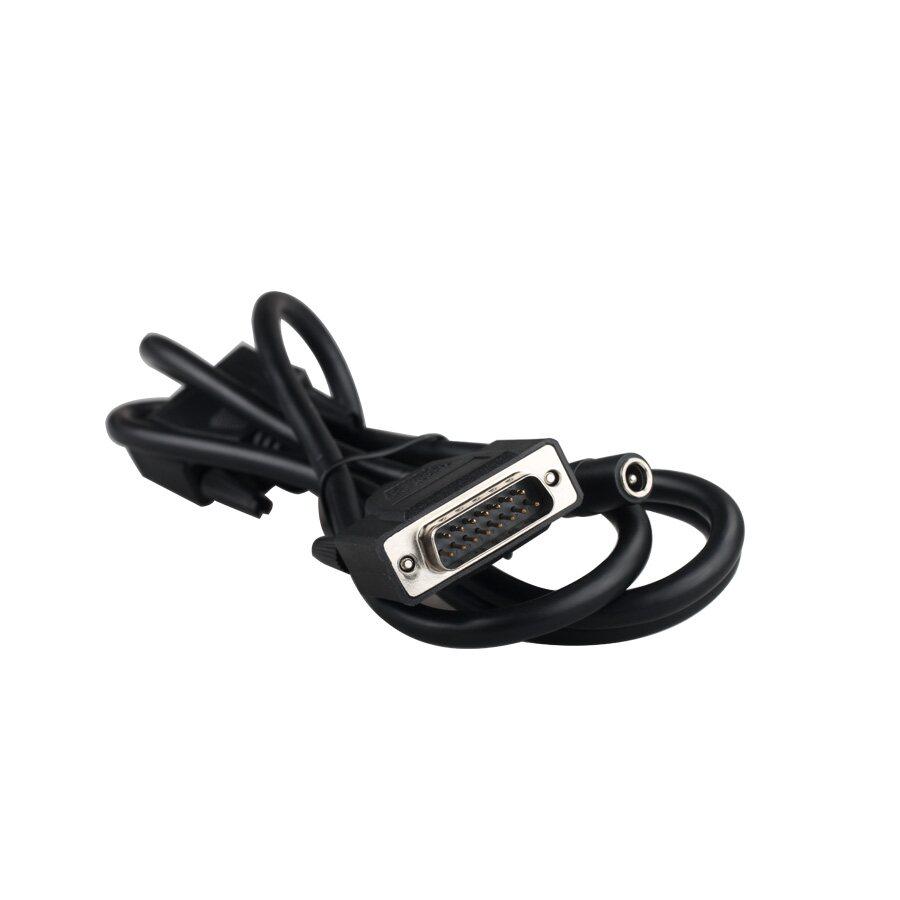

• 1pc x Main Cable
• 1pc x TF Card

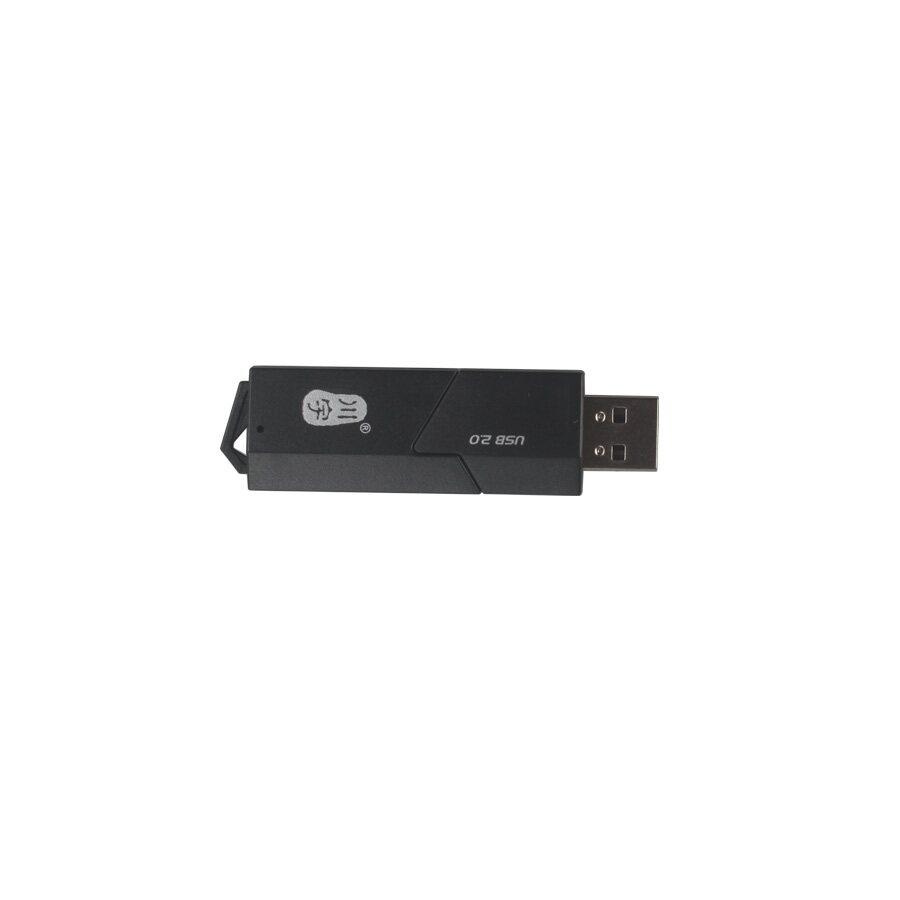

• 1pc x TF Card Reader
• 1pc x X-100 PRO User’s Manual
• 1pc x OBDSTAR PIC and EEPROM 2-in-1 Adapter
