ADS7100 ULTRASCOPE Dual Channel Super Fast Oscilloscope & High-accuracy Multimeter Analyzer For CAN SAEJ1850 ISO9141
ADS7100 ULTRASCOPE Dual Channel Oscilloscope & Multimeter is a high speed of Dual Channel Oscilloscope & Multimeter which can test automotive oscilloscope for specialists.
Super fast Oscilloscope, high-accuracy multimeter.
OBD2 BUS analyzer for CAN, SAEJ1850, ISO9141.
Super fast Oscilloscope, high-accuracy multimeter.
OBD2 BUS analyzer for CAN, SAEJ1850, ISO9141.
Item No. COBD22782
5 stars, 9 reviews.
In Stock
- Price:
- US$2,065.00/ piece
- Discount Price:
- US$1,377.00/ piece 33%
- Quantity:
-
- Shipping:
- Express Shipping Service
Estimated delivery time: 3-15 working days.See details ? - Returns:
- Return for refund within 7 days,buyer pays return shipping.Read details »
- Support:
-
Online Chat
Ask a question
US$575.00 / piece
US$129.00 / piece
US$108.99 / piece
US$739.00 / piece
US$197.00 / piece
US$467.00 / piece
US$227.00 / piece
US$1,198.00 / piece
US$599.00 / piece
US$46.79 / piece
US$59.99 / piece
US$199.00 / piece
US$39.99 / piece
US$9.59 / piece
US$106.80 / piece
US$1,699.00 / piece
- Product Details
- Product's Reviews
- Write a Review
- Related Products

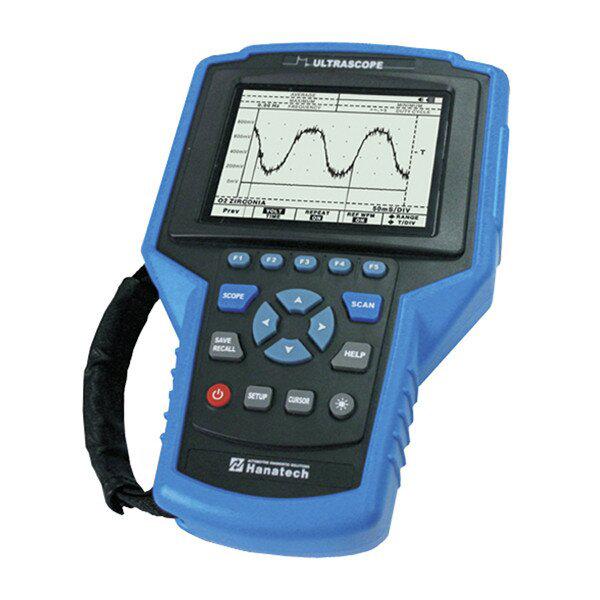

ADS7100 ULTRASCOPE Dual Channel Oscilloscope & Multimeter
Top 7 Reasons To Get ADS7100
Top 7 Reasons To Get ADS7100
- Super fast Oscilloscope, high-accuracy multimeter.
- OBD2 BUS analyzer for CAN, SAEJ1850, ISO9141.
- Real time screen refresh rates.
- Small size, light weight, portable.
- Dual channel, auto calibration, auto trigger.
- Auto screen horizontal axis, perpendicular division.
- Low battery voltage charge indicator.
ADS7100 ULTRASCOPE Specifications:
- Language: English
- Material: Metal
- Color: Blue+black
- Display screen: 320*240 CCFL backlit LCD
- Save model: Reference ware form saved
- Connect: USB interface with PC
ADS7100 ULTRASCOPE Features:
- Maximum input voltage: 600V peak DC or AC.
- UI3111, CSA C22.2 No. 1010-1 safety standards compliance.
- Generic OBDII diagnostics.
| Sample Rate | 25 Ms/s(Dual CH mode) |
| 50 Ms/s(Single CH mode) | |
| Record Length | 512 in single shot mode |
| 256 in all other modes | |
| Sample/Division | 25 |
| Update Rate | Real time |
| Modes | Single shot,Roll,Normal |
| Accuracy | 0.01% |
| Sweep Rate | 1uS to 5S in 1,2,5 sequence |
Vertical
| Bandwidth | 1MHz |
| Resolution | 8 Bit |
| Channels | Dual |
| Coupling | AC,DC |
| Input Impedance | 1 MΩ |
| Accuracy | 3% |
| Max input Voltage | DC or AC 600vrms |
| Volt/Division | 0.5mV to 500V in 1,2,5 in sequence |
| 50mV to 50kV for ignition Secondary |
Triggering
| Source | Internal, External |
| Coupling | AC, DC |
| Slope | Rising Or Falling edge |
| Trig Sensitivity | 2/20 Division |
Other
| Waveform Memory | 8 Shot |
| Reference Waveform | 4S Shot |
| Ignition Analyzer | Primary & Secondary Ignition |
| Conventional and DLI/DIS | |
| Peak Voltage,Burn time & Voltage |
DC V
| Range | Resolution | Accuracy | Impedance |
| 5V | 0.001V | ±(0.3%+3) | 1MΩ |
| 50V | 0.01V | ||
| 500V | 0.1V | ±(0.5%+5) | |
| 1000V | 1V |
AC V
| Range | Resolution | Accuracy | Impedance | ||
| 50-450Hz | 0.45-5kHz | 5kHz-20kHz | |||
| 3V | 0.001V | ±(0.3%+3) | ±(0.75%+5) | ±(2%+5) | 1MΩ |
| 30V | 0.01V | ||||
| 300V | 0.1V | ±(0.5%+5) | |||
| 750V | 1V | N/A | |||
OHM
| Range | Resolution | Accuracy | Over Load Protection |
| 5kΩ | 0.001kΩ | ±(0.5%+5) | 600V DC or AC rms |
| 50kΩ | 0.01kΩ | ||
| 500kΩ | 0.1kΩ | ||
| 5MΩ | 0.001MΩ | ±(0.75%+10） |
Continuity Test(Buzzer)
| Test Voltage | Threshold | Over Load Protection |
| 1.7V | 100Digits | 600VDC Or AC Peak |
Optional Function
| Temperature | 0-200℃(Max 300℃) |
| Pressure | 0-50Kg/Cm2 |
| Ampere | 0-4Amp, 0-40Amp, 0-400Amp |
General Specifications
| Operating Temp | 0℃-50℃(32"F-122"F)humidity 75% or less |
| Power Supply | Ni-MH 4.8V |
| Battery Life Time | 3hours without backlit/2hours backlit ON |
| Display Type | 320×240 LCD(CCFL backlit) |
| Dimensions | 164mm(width)×58mm(depth)×256mm(height) |
| Weight | 1kg |
Package including:
- 1pc x Body
- 1pc x Adaptor Recharger
- 2pc x Probe Cable
- 2pc x Needle Cable
- 1pc x Ignition CYL.1 Pickup Probe
- 1pc x Battery Cable
- 1pc x Aux. Cigarette Cable
- 1pc x User Manual
- 1pc x Carry Bag
- 1pc x Box Enclosure
