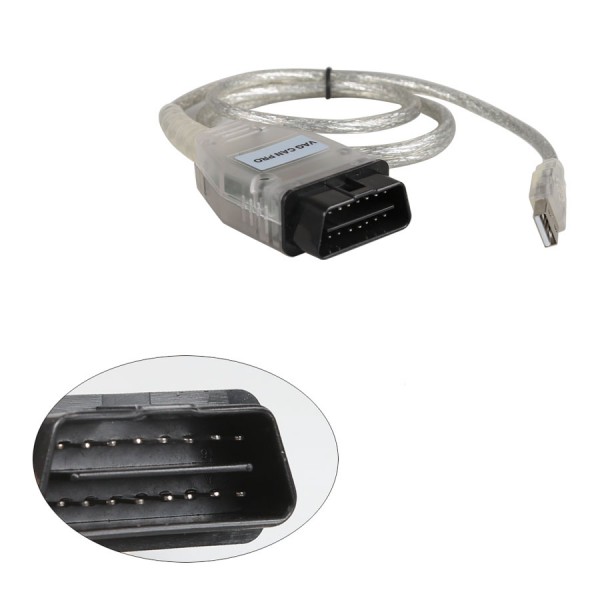

VAG PRO CAN BUS+UDS+K-line S.W Version 5.5.1

VAG PRO CAN BUS+UDS+K-line S.W Version 5.5.1

Language: English, Czech, Danish, German, Hrvatski, Italian, Dutch, Polish, Russian, Spanish

Main Features of VAG PRO:

• Unique features OCLF service procedures (One-Click-Function);
• inexpensive flasher for VAG;
• inexpensive flasher with support UDS controllers;
• ESP MK60EC1 decision coding blocks;
• a tool for a complete diagnosis MQB platform (Golf VII, Octavia III) Support to 01.2013;
• ZDC-loading containers in the electronic components;
• Unlock video in motion (VIM) on the MQB platform (Discover Pro and MMI-MQB);
• Coding controllers for PR-codes;
• "Login finder" allows you to scan and logins in the CAN controllers UDS;
• Support for the new Polo in 2014 Facelift;
• Support for the new Passat B8;
• Full support of Audi TT-3 on the platform of the IBC;
• Full support for Skoda Fabia III

New in Version 5.5.1:

• Support for new addresses entered in the MLB-Evo platform
• Update database-ODX (support for all models 2015)

Major Changes in the PR encoder:

• Now it is possible to keep PR-codes of a file
• PR-self-sustaining encoder may select codes known PR-analysis of current data stored in the ECU
• You can compare the data stored in the ECU against the calculated data, choose what you want to download.
• OCF "Activating automatic folding mirrors", the problem is illuminated space around the machine solved Thanks Ciamardo / vcp-forum.de
• The new team in the Scripter: GetCardSerial, returns the current smart card number. You can use it to prepare a script that will run only on these smartcards.
• Enhanced TXT-coding, coding calculation is now faster APDUs.
• Updated data base DTCFixed problems with parameterization 7N0 cameras
• Fixed problems with parameterization 5M0 ...... F AFS modules
• OCF new section called "Apps", which is: Download the parameter data, coding for PR
• code, programmer Wabco, BCM, and so forth programmer..
• The new procedure OCF "FlashFile Dumper" can extract content from Flash files (
• .SGO, .FRF, .ODX) in a binary dump. Note: The source data format is not changed,
• so that if a Flash file kriptovat and compressed, the binary file will be the same.
• Fixed an issue in the Gateway Sheet MLB-EVO (B7 II, A4 B9) not all ECU were available through the Gateway.
• Updated database of error codes (added more than 200 new codes, including the MQB / MLB-EVO platform)
• New Firmware v.1.1 for interfaces (04.0D / 02.04) v.2.0 (0A.04 / 0B.04) to support new protocols (TCP-IP) used on the MLB-EVO platform
• Fixed a connection problem with the address 46 (room unit) on the MLB-EVO (B9 A4 / Q7 4M) platform
• OCF Disable Start-Stop system is now supported PQ26 platform (Polo 6C, Fabia III, etc.)
• Reduced time delays during the loading of large data blocks in the non-flash modes.

This contributes to a more stable connection when connected directly to the ECU (Direct Connect), popular among fans VAG.

Supported Cars:

1. Audi

• A2 2009
• A3 8P 2003
• A3 platform MQB
• A4 model 8E wariant B7 (engine, transmission, airbags, ABS, park) 2005
• A4 model 8K wariant B8 (UDS + TP2.0) 2008
• A5 model 8K (UDS) 2007
• A6 model 4F 2004
• A8 model 4E 2003
• Q3 (UDS) 2010
• Q5 (UDS) 2008
• Q7 (TP2.0 + UDS) 2006
• S5 model 8K
• (R)S6 model 4F
• R8 (UDS)
• TT model 8J 2007

• Sprinter (VW Crafter) Only the engine and immobilizer

• Altea
• Leon MQB 2013
• Leon model 1P 2005
• Toledo model 5P 2004
• Exeo 2008(engine, transmission, airbags, ABS, park)

• octavia model 1Z 2004
• octavia platform MQB
• superb II B6 2008
• fabia model 5J 2007
• yeti 2009

• Crafter (immobilizer, engine)
• Caddy model 2K 2005
• Eos
• Golf V model 1K
• Golf VI model 5K
• Golf VII platform MQB
• Golf Plus
• Jetta II model 1K
• Transporter / Multivan (Only after the CAN-BUS drive for storing data)
• Multivan/Transporter GP model 7E (UDS) 2009
• Passat B6 model 3C 2005
• Passat CC
• Phaeton GP 2007
• Polo model 6R 2009
• Polo FL MQB 2014
• Scirocco III
• Touran
• Tiguan
• Touareg GP 2007
• Touareg NF 2010

• VW Golf III, IV
• VW Passat 3B
• VW Bora
• VW Transporter T5
• VW New Beetle
• VW Polo II,III,IV
• Skoda Octavia I
• Skoda Fabia i i II
• Seat Leon I
• Seat Toledo II
• Seat Alhambra
• Seat Ibiza II, III, IV
• Audi A2,A3,A4,A6 K-Line

• This model has a can-bus (TP1.6), but it is not connected to the diagnostic socket. The car is fully diagnosed on the K-line (VCP required interface + K). Used protocols KWP2000 and KWP1281 it.

• This model has a CAN BUS TP2.0, but the diagnostic socket is only connected to the socalled CAN-Antrieb, i.e. Engine, transmission, airbags, ABS, Quattro drive.
• In addition, a standard K-line. In other words, VCP fully supports the diagnosis B7 models, but only in the CAN-Antrieb. Other controllers are available through the K-Line and KWP2000 KWP1281 protocols.
•

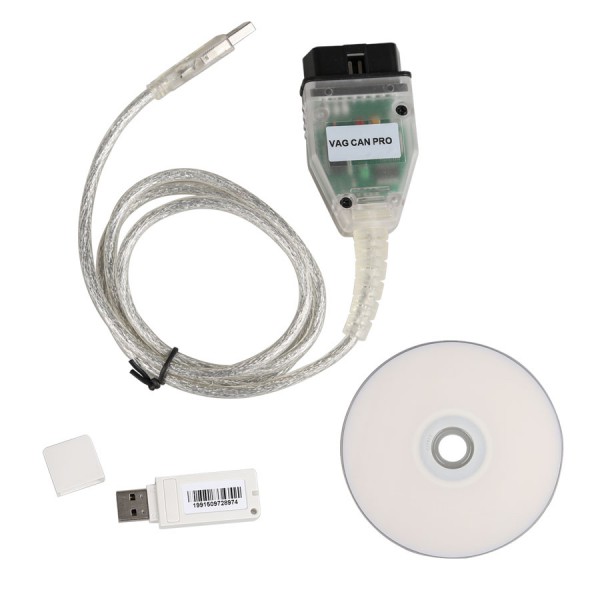

Package including:

• 1pc x VAG PRO

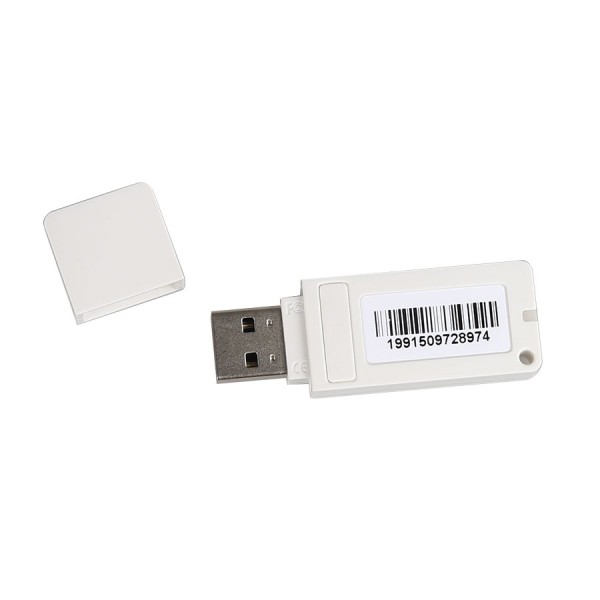

• 1pc x Encryption Dog
• 1pc x CD
